C50 Card Printer Service Manual PLT-01278 rev 1.1
HID GLOBAL CONFIDENTIAL AND/OR PROPRIETARY INFORMATION. This document contains confidential and/or proprietary information,
which may not be duplicated, published, disseminated or disclosed, or used for any purpose, without the written consent of HID Global
Corporation. If you are an unintended recipient of this information or are unwilling to accept the above restrictions, please immediately return
this document to HID Global Corporation, 15370 Barranca Pkwy, Irvine, CA 92618-3106..

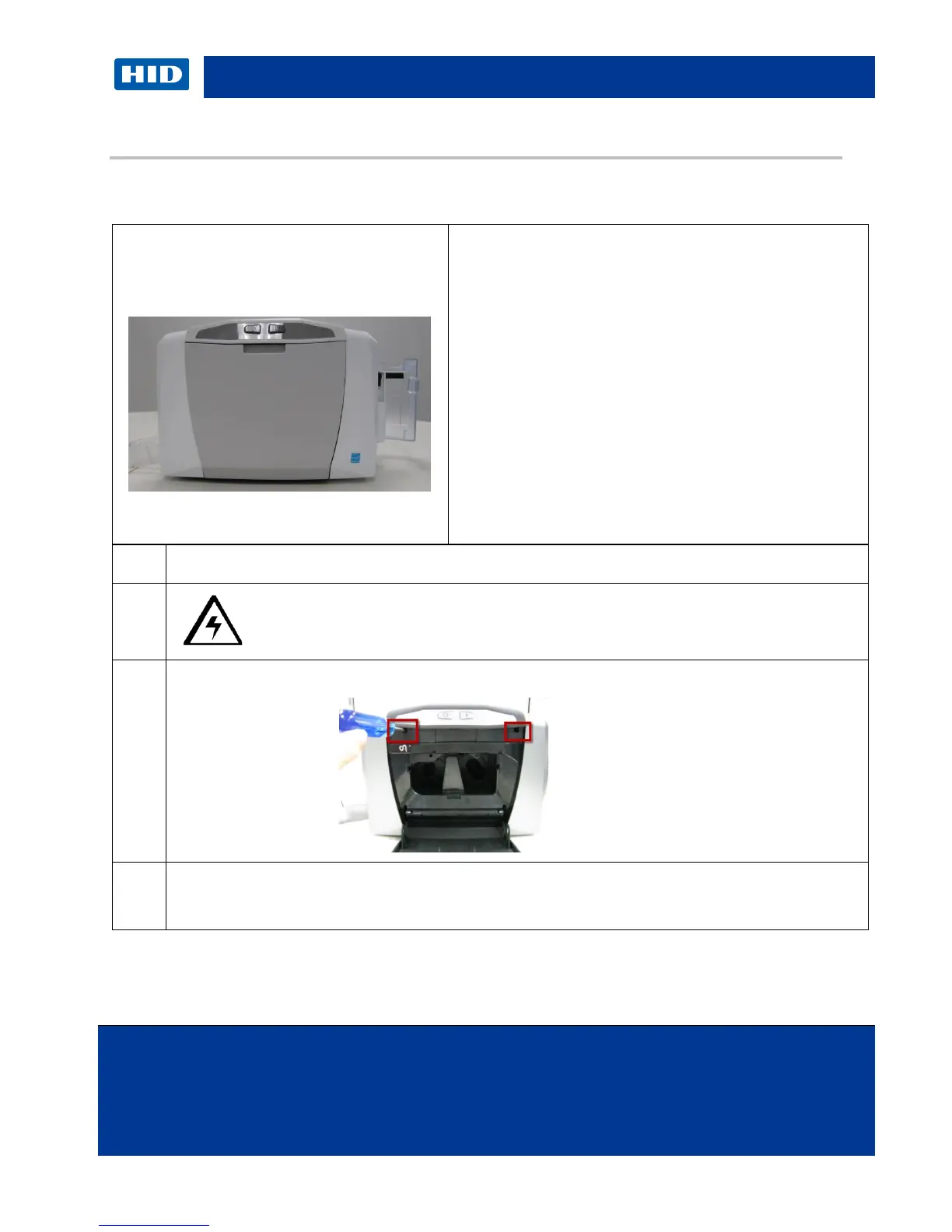

2 Cover Removal Procedures
2.1 Remove/Replace Printer Covers
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
Open the front door. Locate and remove the 2 screws. (F000178)
Lift up the top cover and disconnect the display cable (D930607) from the main board.
Remove the top cover by flexing the center to disengage the insert tabs.
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 15 minutes
Preparation:
Important: This procedure can only be performed
by authorized service personnel.
Top Cover/PCB Assy D930034-03
Front Door D930265-03
Left Cover D930263-04
Right Cover D930264-03
Back Cover D930270-01
Output Bin D930269-01
To Next Page
