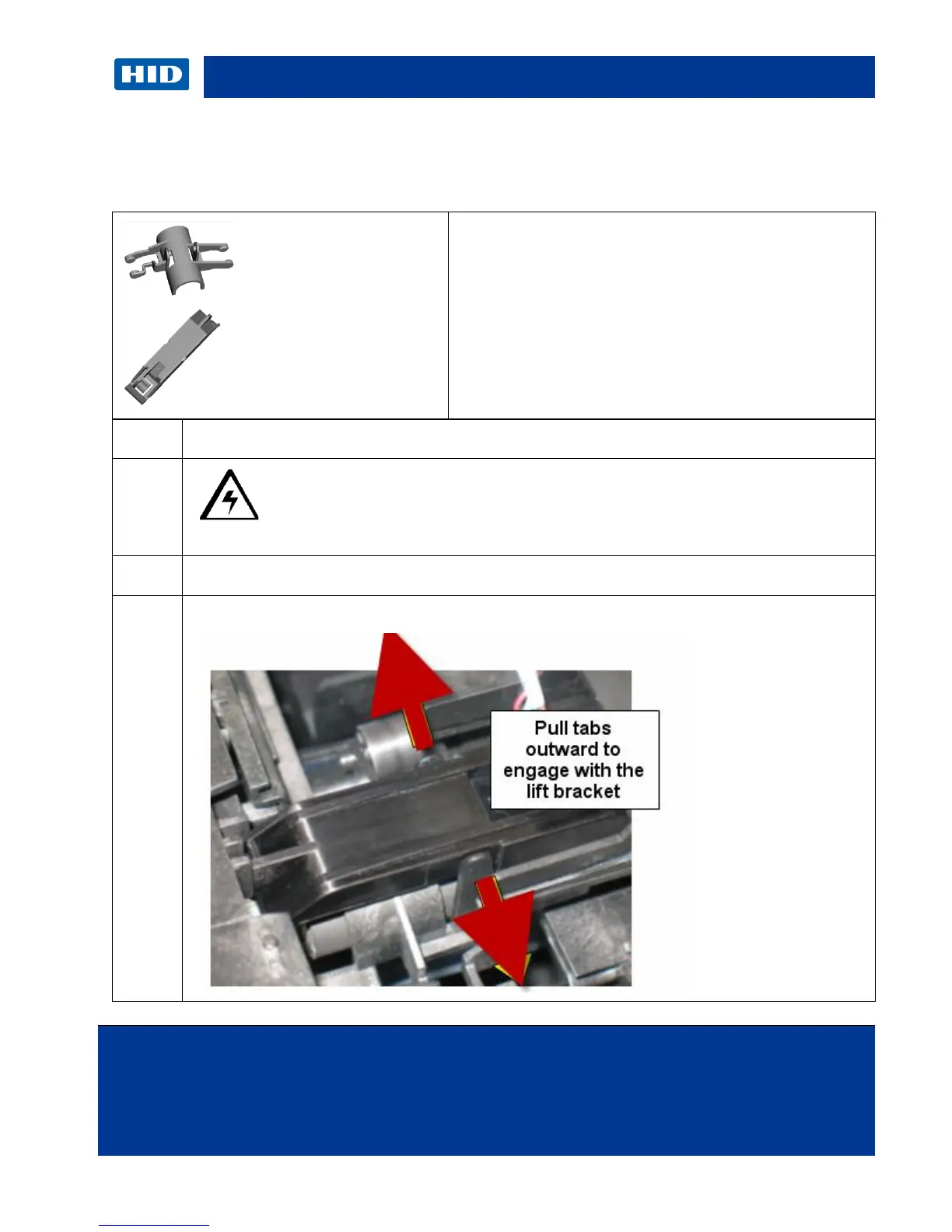

3.6 Remove/Replace the Lift Pinch Roller Assembly (D930137),
Remove/Replace Pinch Lift Bracket (D930136)
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the
Printer.
2
Remove the mainboard .
3
Pull the tabs apart on the Bracket (D930136) to release. Lift up and out.
D930137
D930136
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 20 Min
Preparation: . Remove the Covers
Important: This procedure can only be performed by
authorized service personnel.

Fargo C50 Specifications

General

Print Technology	Dye-Sublimation / Resin Thermal Transfer
Resolution	300 dpi
Connectivity	USB 2.0
Print Speed	24 seconds per card (YMCKO)
Card Capacity	30 card output hopper
Card Size	CR-80 (3.375" x 2.125")
Dimensions	13.7" W
Weight	7.5 lbs (3.4 kg)
Operating System Compatibility	Windows 7, 8, 10
