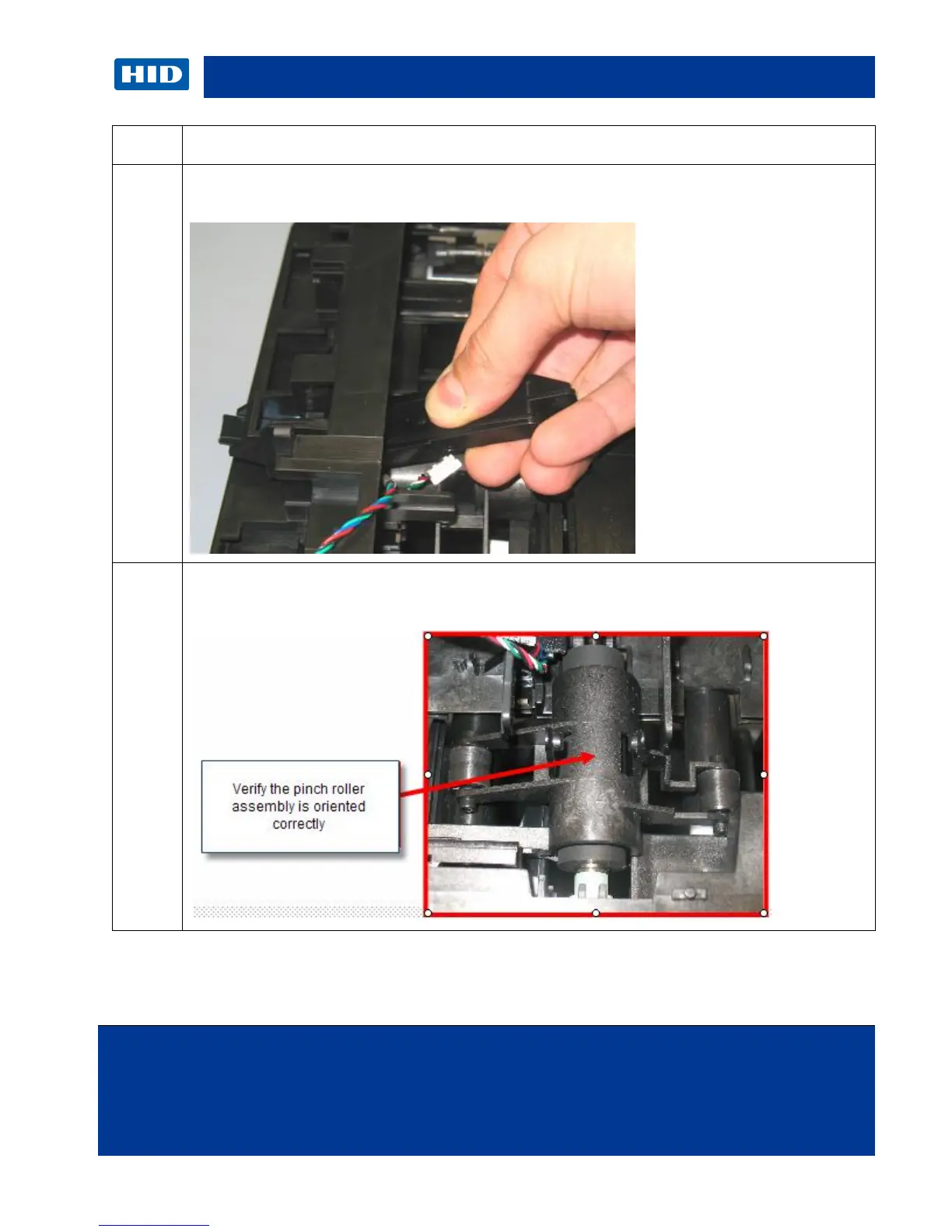

Step
Procedure
4
Rotate the Lift Bracket (D930136) with the spring (D930266) upwards to disengage the
hinge.
5
Lift out the Pinch Roller Bracket (D930137).
NOTE: Verify orientation when re installing.
