Step
Procedure
6
Replace with new Platen Roller.
Lock platen with cam first into the front sideplate.
7

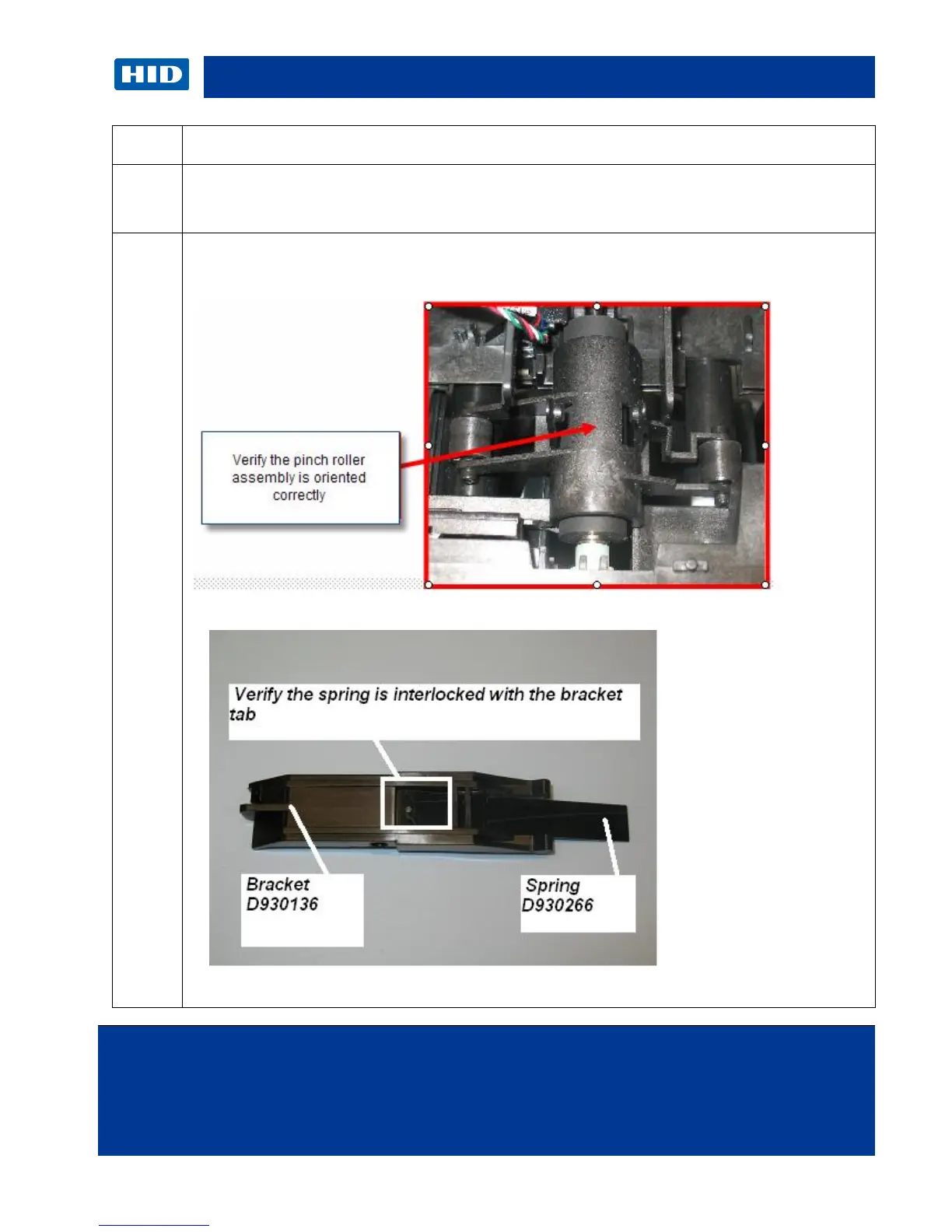

To reinstall the Pinch Roller Assembly:
a. Verify orientation of the Pinch Roller Assembly
b. Connect the spring to the bracket.
c. Insert the Bracket tabs into the holes provided in the sideplate frame.
