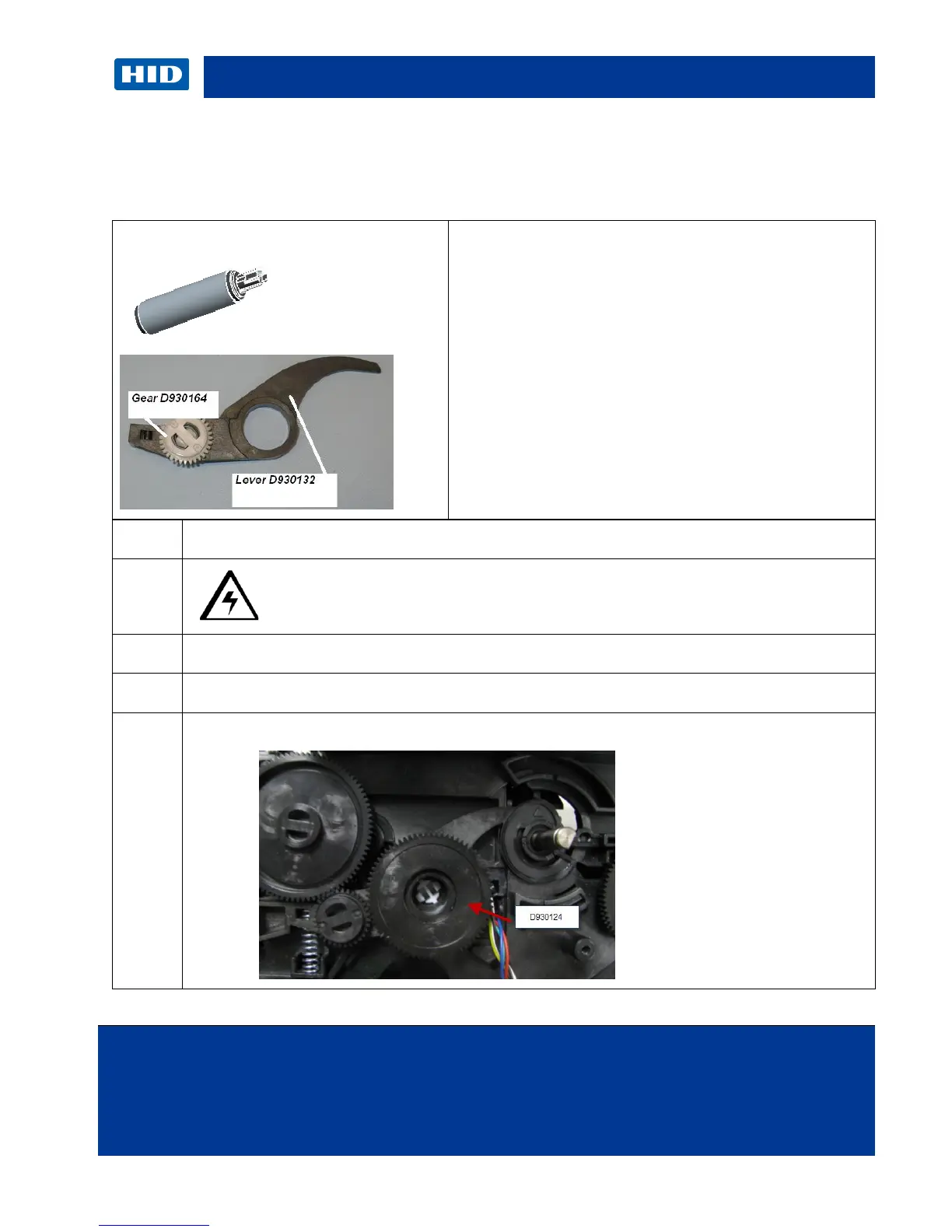

3.7 Remove/Replace the Cleaning Roller (D930121),
Remove/Replace Input Feed Lever (D930132),
Remove/Replace Input Lever Gear (D930164)
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Remove the ribbon supply assembly.
3
Remove the mainboard (D930500)
4
Remove the Cleaning Roller Gear (D930124)
D930121
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 30 min
Preparation: Remove the Covers
Important: This procedure can only be performed by
authorized service personnel.

Fargo C50 Specifications

General

Print Technology	Dye-Sublimation / Resin Thermal Transfer
Resolution	300 dpi
Connectivity	USB 2.0
Print Speed	24 seconds per card (YMCKO)
Card Capacity	30 card output hopper
Card Size	CR-80 (3.375" x 2.125")
Dimensions	13.7" W
Weight	7.5 lbs (3.4 kg)
Operating System Compatibility	Windows 7, 8, 10
