Fargo C50 User Manual

C50 Card Printer Service Manual PLT-01278 rev 1.1
August 2013
Page 23
HID GLOBAL CONFIDENTIAL AND/OR PROPRIETARY INFORMATION. This document contains confidential and/or proprietary information,
which may not be duplicated, published, disseminated or disclosed, or used for any purpose, without the written consent of HID Global
Corporation. If you are an unintended recipient of this information or are unwilling to accept the above restrictions, please immediately return
this document to HID Global Corporation, 15370 Barranca Pkwy, Irvine, CA 92618-3106..

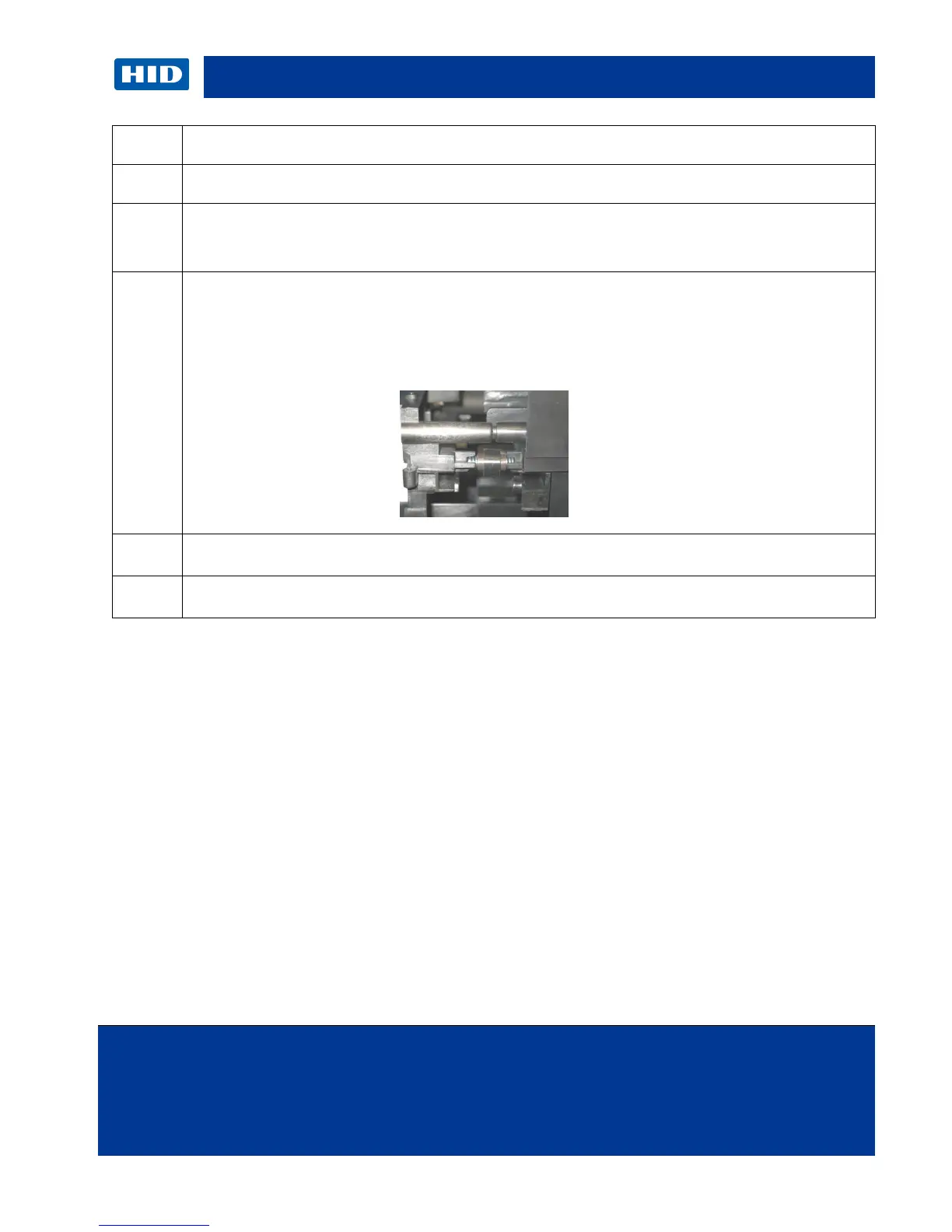

Step
Procedure
3
Flip printer on front remove Roller (D930123) Pull straight up and out
4
Replace with new roller and replace the gear onto the roller.
Procedure completed.
5
Remove the output roller first and then remove the Pinch Roller
Use a small flathead screwdriver to release the spring (F000338) and the Pinch Roller
(D920013).
Replace with new roller.
6
Reverse assembly to reinstall parts.
7
Procedure is complete.

Fargo C50 Specifications

General

Print Technology	Dye-Sublimation / Resin Thermal Transfer
Resolution	300 dpi
Connectivity	USB 2.0
Print Speed	24 seconds per card (YMCKO)
Card Capacity	30 card output hopper
Card Size	CR-80 (3.375" x 2.125")
Dimensions	13.7" W
Weight	7.5 lbs (3.4 kg)
Operating System Compatibility	Windows 7, 8, 10
