Step
Procedure
4

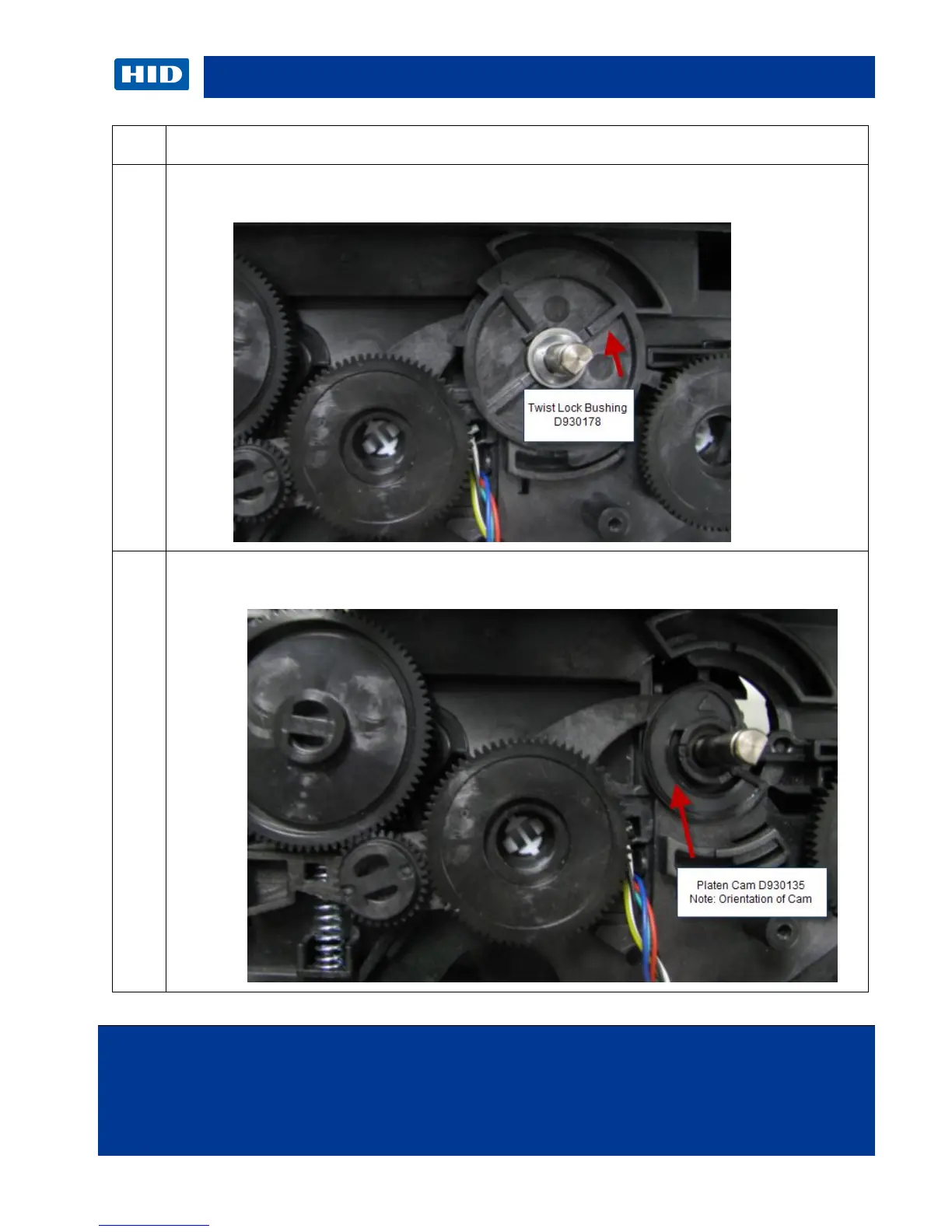

Turn the twist lock Bushing-Twist Lock (D930178) counter clockwise to unlock and lift up.
It is not necessary to remove the surrounding gears.
5
Remove the Platen Cam (D930135). Rotate cam clockwise to remove. Pull off of the
Platen Roller Shaft.

Fargo C50 Specifications

General

Print Technology	Dye-Sublimation / Resin Thermal Transfer
Resolution	300 dpi
Connectivity	USB 2.0
Print Speed	24 seconds per card (YMCKO)
Card Capacity	30 card output hopper
Card Size	CR-80 (3.375" x 2.125")
Dimensions	13.7" W
Weight	7.5 lbs (3.4 kg)
Operating System Compatibility	Windows 7, 8, 10
