C50 Card Printer Service Manual PLT-01278 rev 1.1
August 2013
Page 54
HID GLOBAL CONFIDENTIAL AND/OR PROPRIETARY INFORMATION. This document contains confidential and/or proprietary information,
which may not be duplicated, published, disseminated or disclosed, or used for any purpose, without the written consent of HID Global
Corporation. If you are an unintended recipient of this information or are unwilling to accept the above restrictions, please immediately return
this document to HID Global Corporation, 15370 Barranca Pkwy, Irvine, CA 92618-3106..

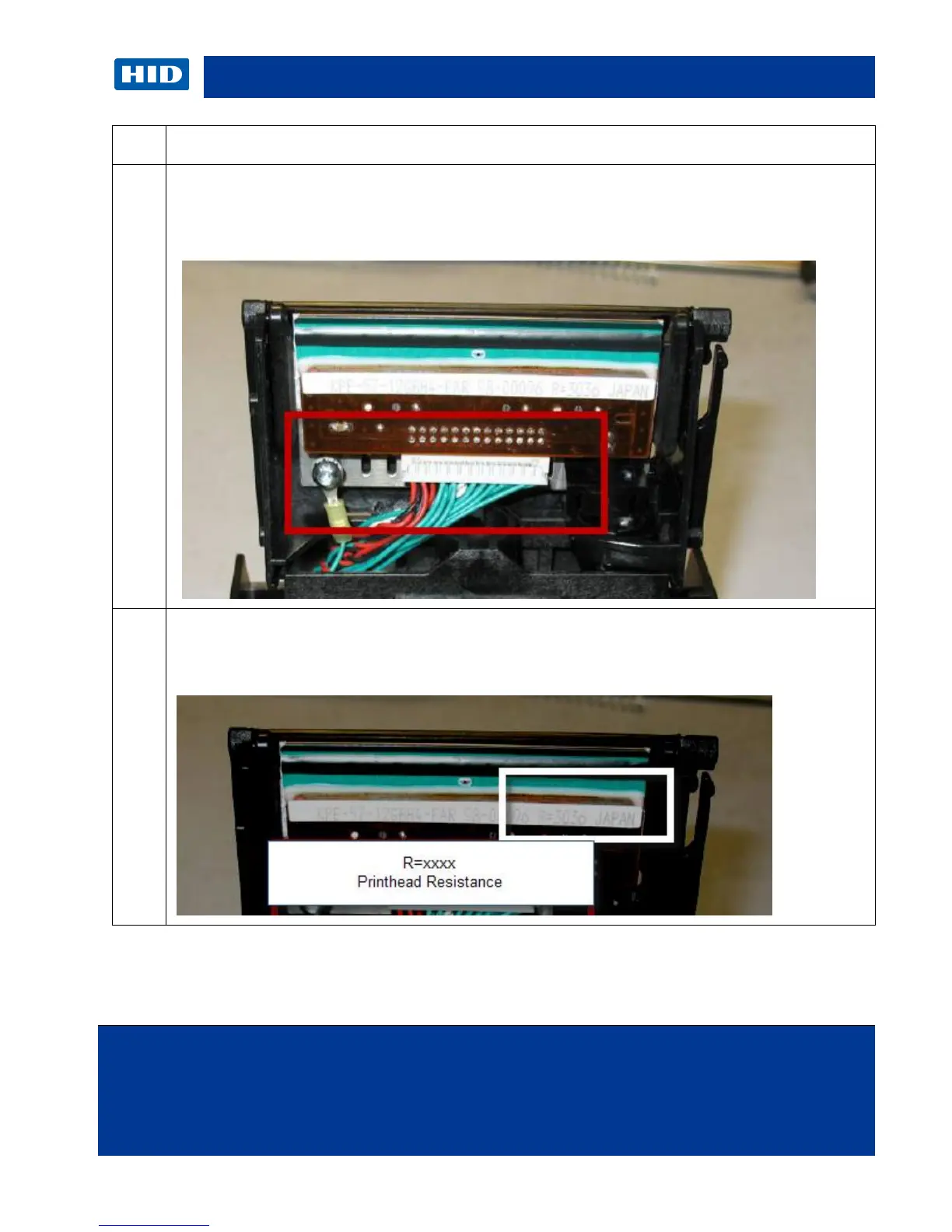

Step
Procedure
10
Remove the cable (D930602). Be careful not to damage the pins.
Remove the Torx screw (F000170) and release the ground cable.
Leave the wires in the main assembly.
11
Before installing the new Printhead make note of the R=xxxx value. This number will be
used after the Printhead is installed and ready to make the final adjustment.
See Advanced Adjustments below.

Fargo C50 Specifications

General

Print Technology	Dye-Sublimation / Resin Thermal Transfer
Resolution	300 dpi
Connectivity	USB 2.0
Print Speed	24 seconds per card (YMCKO)
Card Capacity	30 card output hopper
Card Size	CR-80 (3.375" x 2.125")
Dimensions	13.7" W
Weight	7.5 lbs (3.4 kg)
Operating System Compatibility	Windows 7, 8, 10
