FAS PERLA HP - 5 Instant Hydraulics Diagram

PERLA HP - ISSUE 02
15
FAS International S.p.A. - Via Lago di Vico, 60 - 36015 SCHIO (VI) Italy - tel. +39 0445 502011 – fax +39 0445 502010 - e-mail: info@fas.it

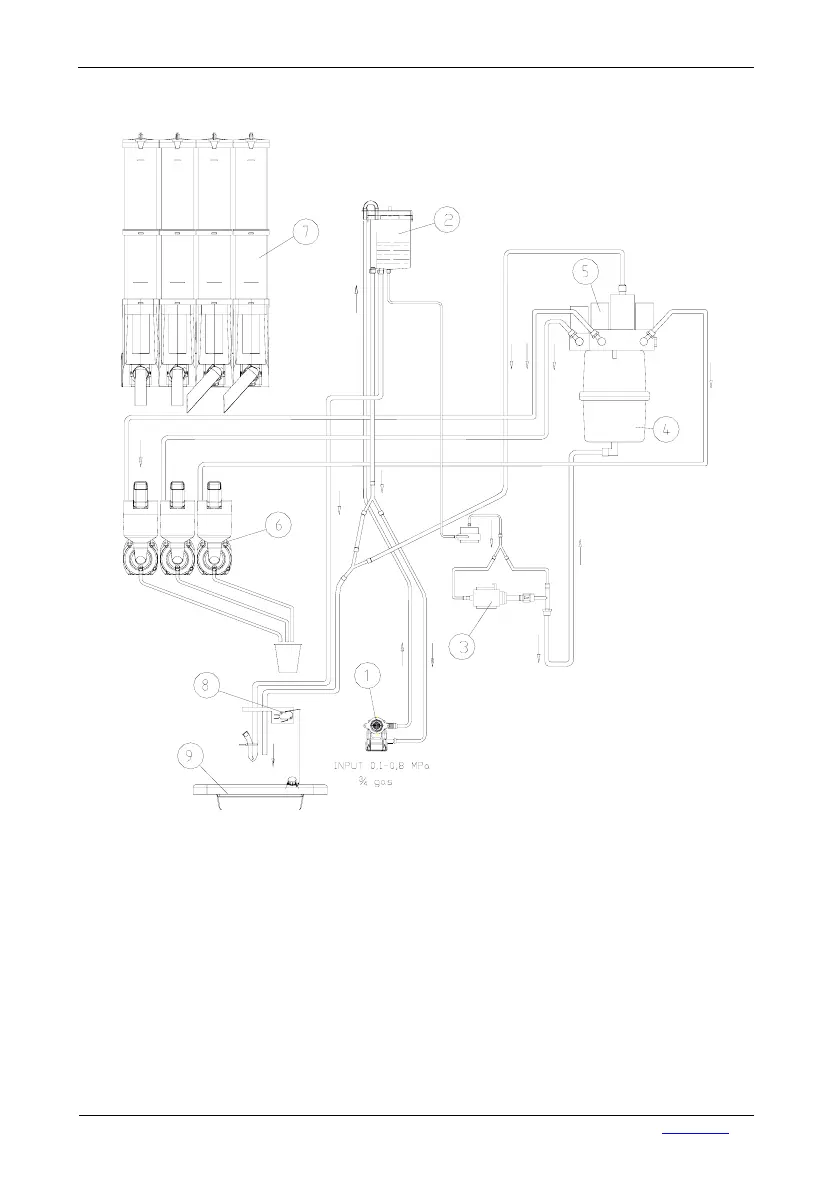

5 "INSTANT" HYDRAULICS DIAGRAM
Key:
1. water inlet solenoid valve
2. air-break
3. espresso pump
4. espresso boiler
5. delivery solenoid valve
6. mixer
7. product containers
8. waste micro
9. liquid grounds tray
