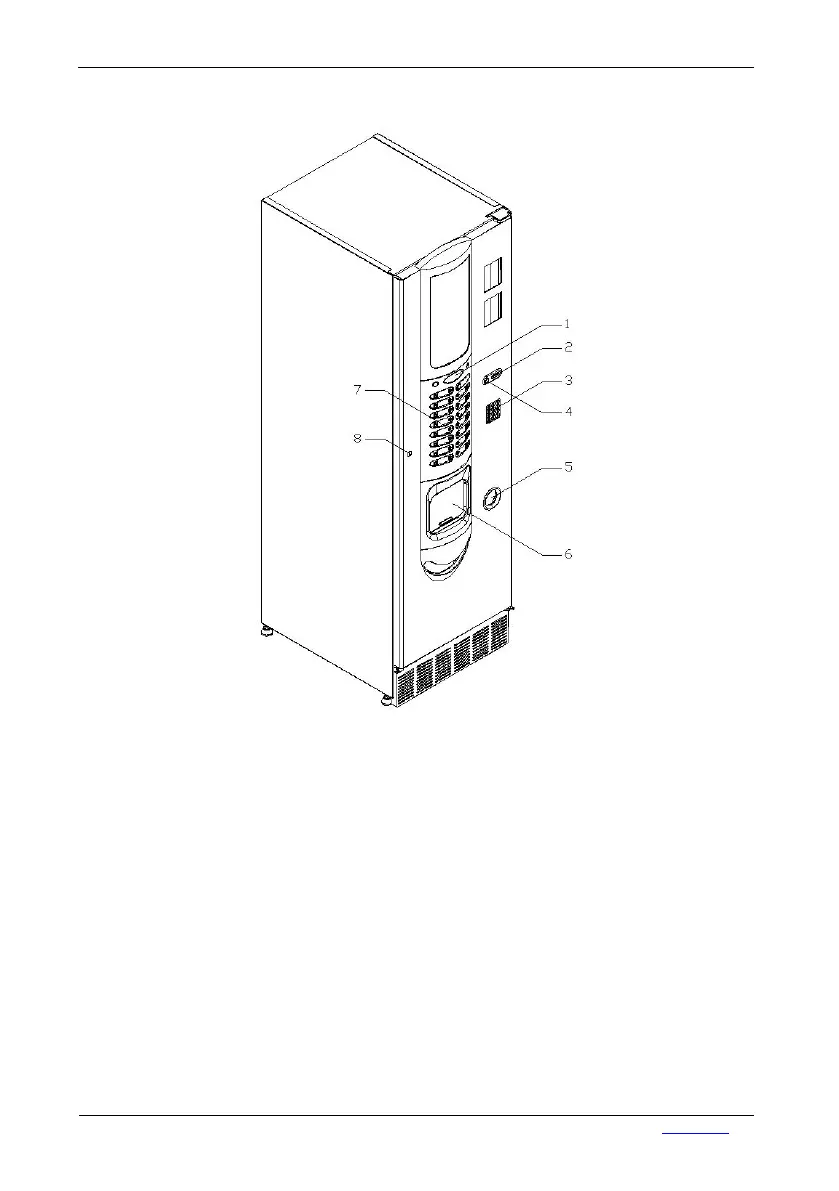

7 DOOR PARTS
1 Display: The total of the coins inserted in the slot, the selection reference, the price of the selection
and all the operating messages appear on the display. If there is a problem with the vending machine
the number of the current alarm appears on the display.
2 Coin slot: the customer inserts the credit required to purchase the product in this slot.
3 Slave selection push button panel: is situated under the coin return push button and consists of a
series of switches identified by letters and numbers. To select a slave machine (if connected), enter the
code which corresponds to the desired product (ex. A11).
4 Coin return button: this push button is used to release any coins jammed in the coin mechanism and
return them to the coin return cup.
5 Coin return cup: is located on the lower part of the machine; the customer collects change from this
cup.
6 Delivery door: is used by the customer to collect the purchased product.
7 Direct selection keypad: The keypad consists of 18 “membrane” keys for the preselections and the
selections. The keys assume different functions when the vending machine is in the programming
mode; these functions are indicated next to each key.
8 Door lock.
