8.4 SPIN SYSTEM

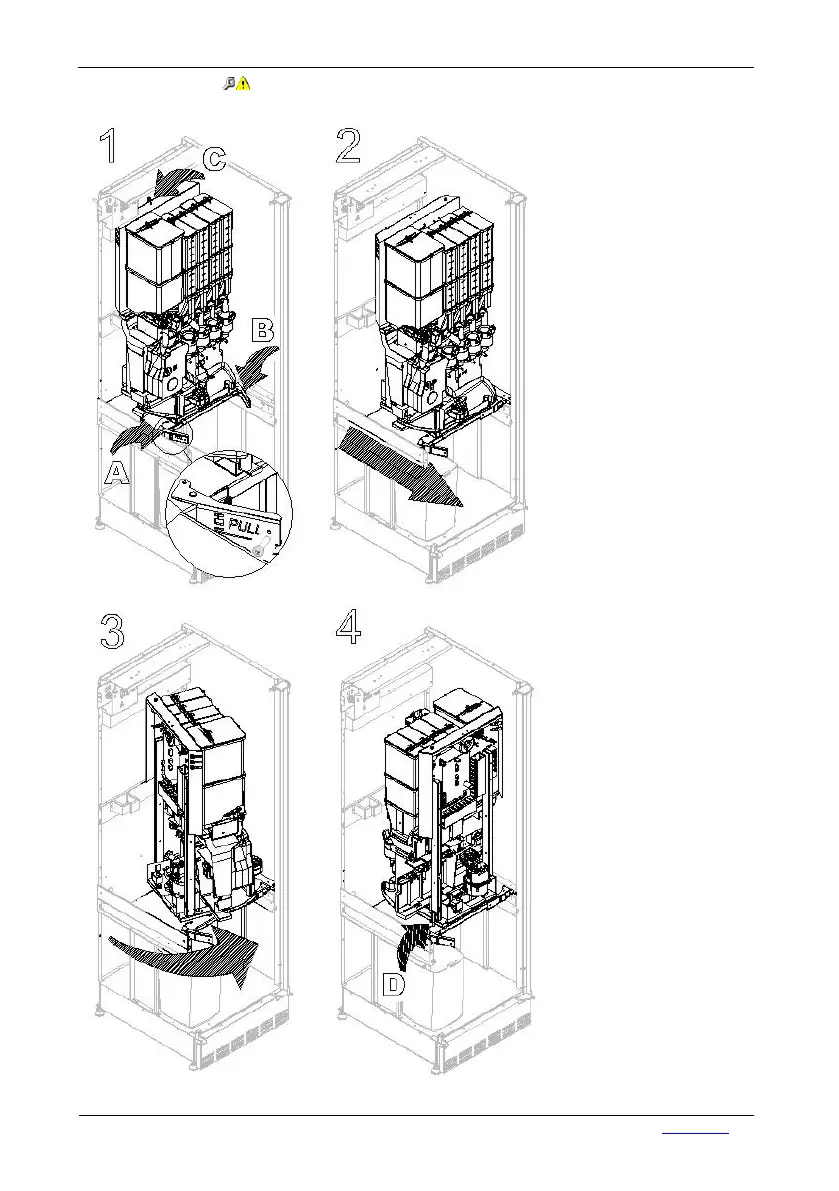

The section view of the
figures on the side, show
the sequence of operations
to be carried out to gain
access to the elements
located at the back where it
is normally necessary to
remove the elements
positioned in front of them.
Fig.1 – 2 : use a Phillips
screwdriver to undo the
screws that secure
fasteners A and B. Release
fasteners A, B and C to
permit you to move the
carriage to the position
shown in fig.3.
Fig.3 : the carriage locks in
the position shown in fig.3
when stop B automatically
returns to its initial position.
Rototranslate the frame
counter clockwise.
Fig.4 : the frame can also
be locked with the latch D
after it has been
rototranslated by 180°.
After every operation,
secure fasteners A and B
with the cross-slotted
screws.
