Fastech Ezi-SPEED ESD-30-C - External Wiring Diagram

-28-
Attention
• Do not install any device that generate a large heat or noise near drive
• If ambient temperature of the drive exceeds 40℃, please change ventilation
condition or forced cool with cooling fan.

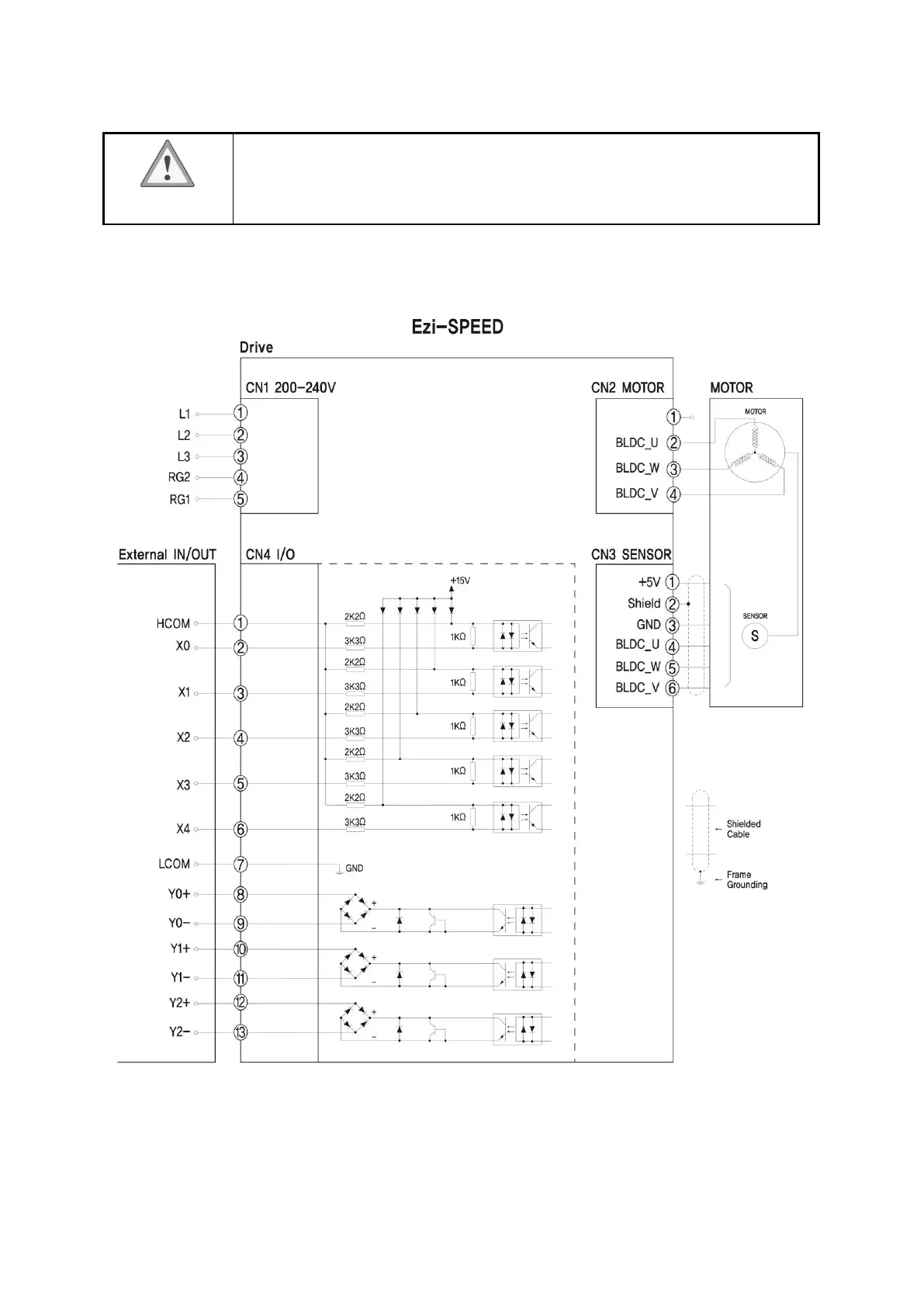

6.2 External wiring diagram
