Fastech Ezi-SPEED ESD-30-C User Manual

-46-

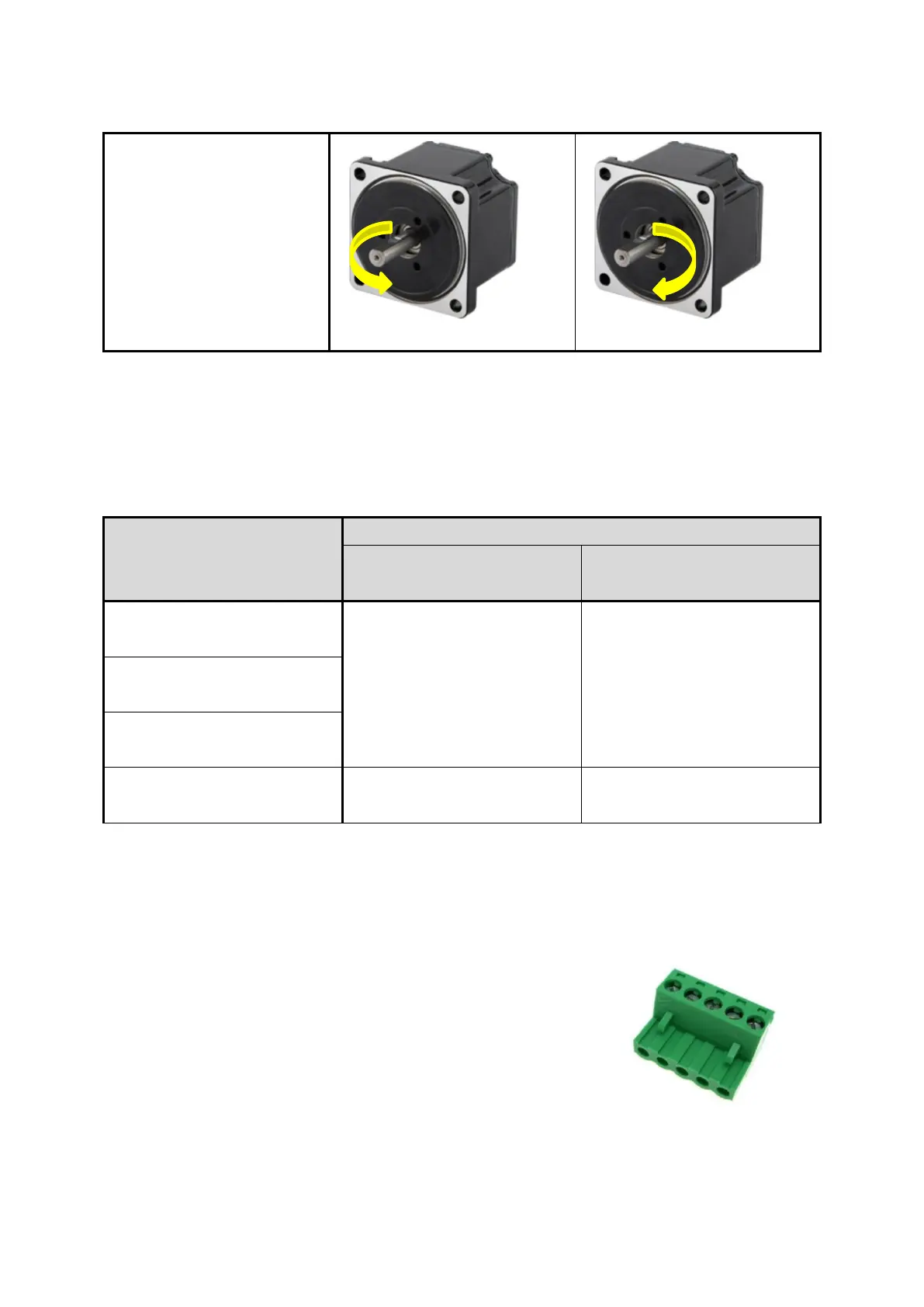

When changing the rotation direction switch, motor will rotation of setting direction after
deceleration stop.
• Gearhead type
The rotation direction of gearhead shaft is decided same rotation direction with motor and
oppsite rotation direct with motor on the gear ratio.
Part Number
Gear Ratio
Same rotation direction with
motor
Oppsite rotation direct with
motor
ESG-60-H-R□-P
5, 10, 15, 20, 200
30, 50, 100
ESG-80-H-R□-P
ESG-90-H-R□-P
ESG-104-H- R□-P
5, 10, 15, 20, 100, 200
30, 50
7.3 Connecting
7.3.1 Connection the power supply
Power cable connects to CN1.
* Power cable not included. (Only connector included)
Connector : CN1
Manufacturer : STELVIO
Part number : CPF5.08-05P
CCW(REV)
CW(FWD)
