• Precaution of “External operation signal input” parameter setting

“Wn.oP” warning generates when I/O Enable is ON after I/O activated when “I/O Enable” is OFF

status. Set the "External operation signal input" parameter of the drive while I / O connection is

stopped.

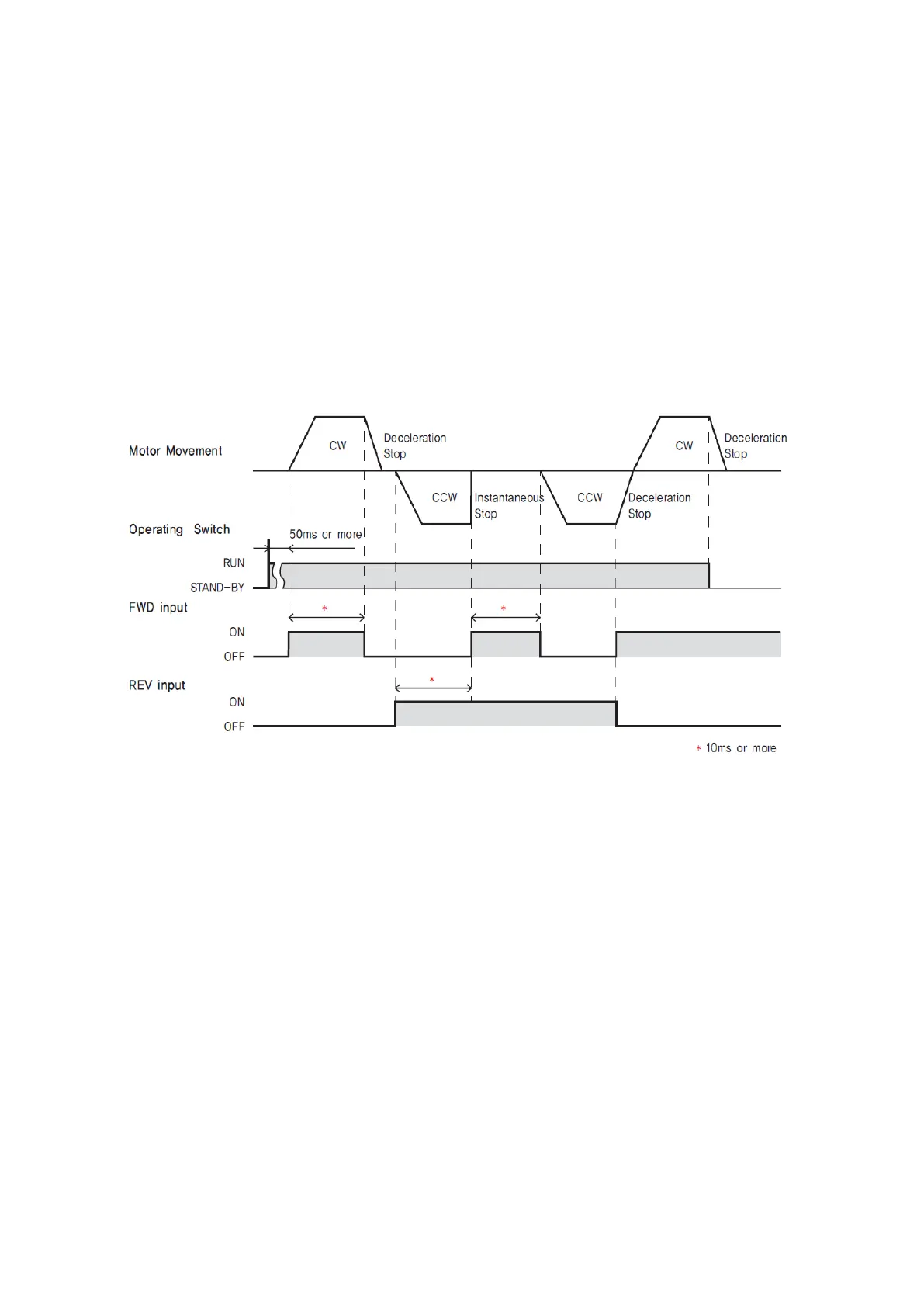

• Timing chart example

In case of parameter “external operation signal input” to “on” and the rotation direction switch is

set to “FWD”.

※ Operation input

• The motor rotates when either FWD input or REV input is set to “ON”.

• The motor instantaneous stop when FWD input and REV input is set to “ON” at the same time.

7.5.2 Operating with multiple speeds

The operation at a speed of two or more can be performed by swiching the external input.

Up to 8 speeds can be performed.
