6.4.3 Mounting motor and gearhead
• Do not forcibly assemble the motor and gearhead. Also do not let metal objects or other
foreign matter enter the gearhead. The motor shaft or gear may be damaged. This will be reason
of noise or shorter life time.
• The motor cable can not be assembled in the direction of the gearhead shaft. Cable will hit the
casing of gearhead so do not wiring.
• Do not add additional adhesive to the pilot sections of the motor and gearhead. Also assemble
the motor and gearhead carefully by not pinching the O-ring at the motor pilot section. If the O-
ring is damaged, grease may leak from the gearhead.

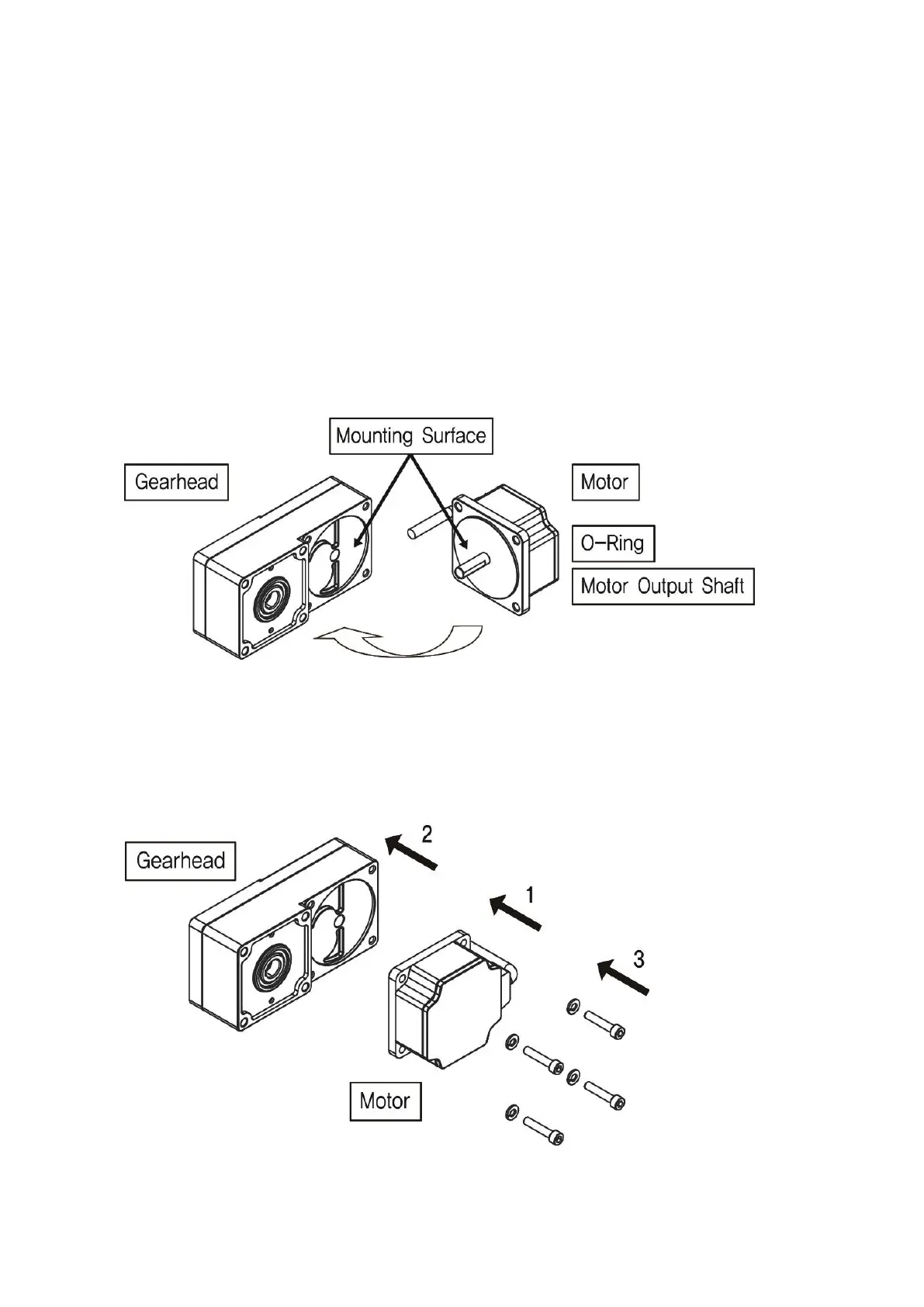

1. Assemble motor and gearhead after determine the motor cable location.
2. Mounting the motor to the gearhead.
3. Tighten the four blots for motor and gearhead assembly.
