Fastech Ezi-SPEED ESD-30-C User Manual

-29-
6.3 Installing the combination parallel shaft gearhead
6.3.1 Installing the gearhead

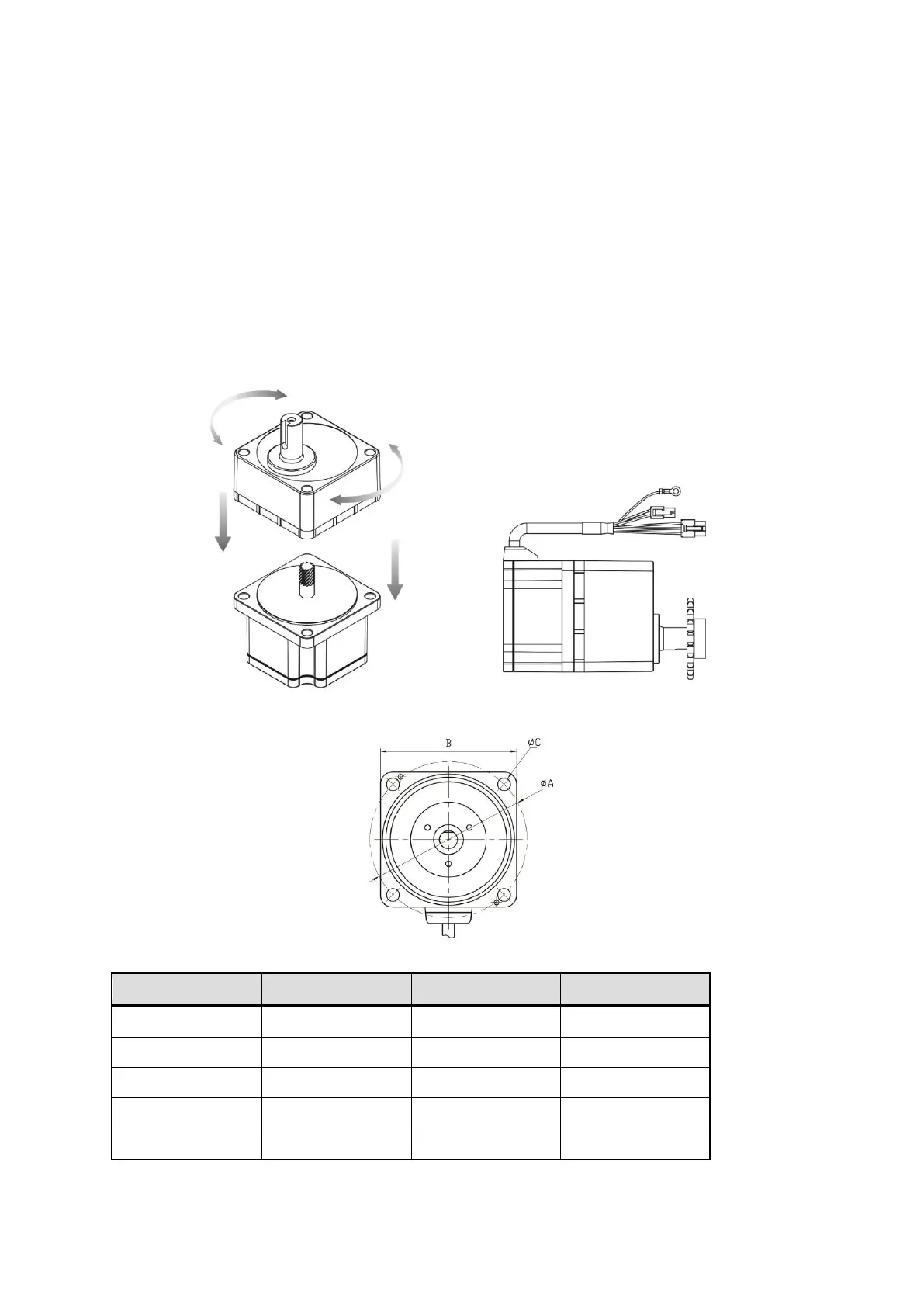

To assemble the motor and the gearhead, adjust the assembling faces together in such a way as
shown in below figure and turn slowly to complete the assembly. When doing the assembly,
special care should be taken neither to exert excessive force on the motor shaft nor to hit inside
of the gearhead. Otherwise, the gear will get damaged, resulting in an abnormal noise and a
shortened life time of the motor
Recommended mounting hole dimensions of gearhead
Recommended mounting hole dimensions [Unit : mm]
Model
ØA
B
ØC
30W
70
64
4*4.5
60W
94±0.1
81
4*6.5
120W
104
90
4*8.5
200W
120±0.1
104.5
4*8.5
400W
120±0.1
104.5
4*8.5
