-48-

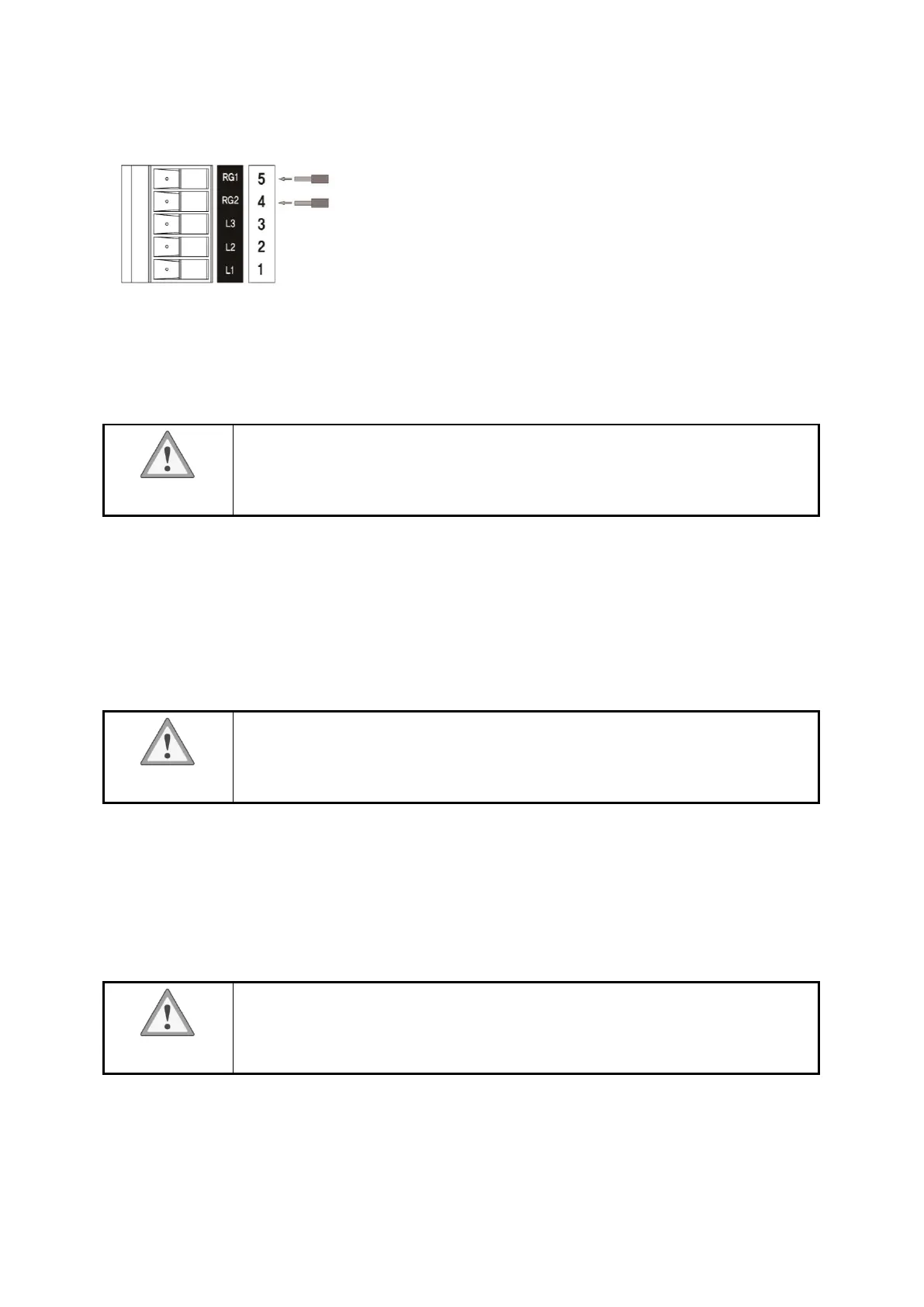

Regenerative Resistor
Connecting to RG1, RG2 terminals when use a regenerative resistor
A regenerative resistor can be used when the deceleration time is short or when the large inertia
is driven by providing a regenerative resistor contact terminal.
Use a regenerative resistor of 100W/400J.
Attention
Caution when a regenerative resistor wiring. It may cause electric shock.
7.3.2 Connecting the motor
Connect the motor connector (4pins) of the motor cable to CN2 and the sensor connector (6pins)
to CN3. Use optional relay cable when extending between motor and drive. Up to two cables can
be connected. The distance between the motor and drive can be extended up to 10m.
Attention
Please surely connect connector to drive. If not perfectly connect connector, it
may cause poor movement or damaged of motor and drive.
7.3.3 Ground connection
Motor and drive are sure to ground with motor ground terminal and drive ground terminal. Drive
will may damage or malfunction due to static electricity.
Attention
Motor and drive are sure to ground. It may cause damage and electric shock.
Drive will may damage or malfunction due to static electricity.
