Attension
• Input the power after check rated voltage of drive.
• If the voltage exceeds the rated range, the drive will be broken.
Input Power

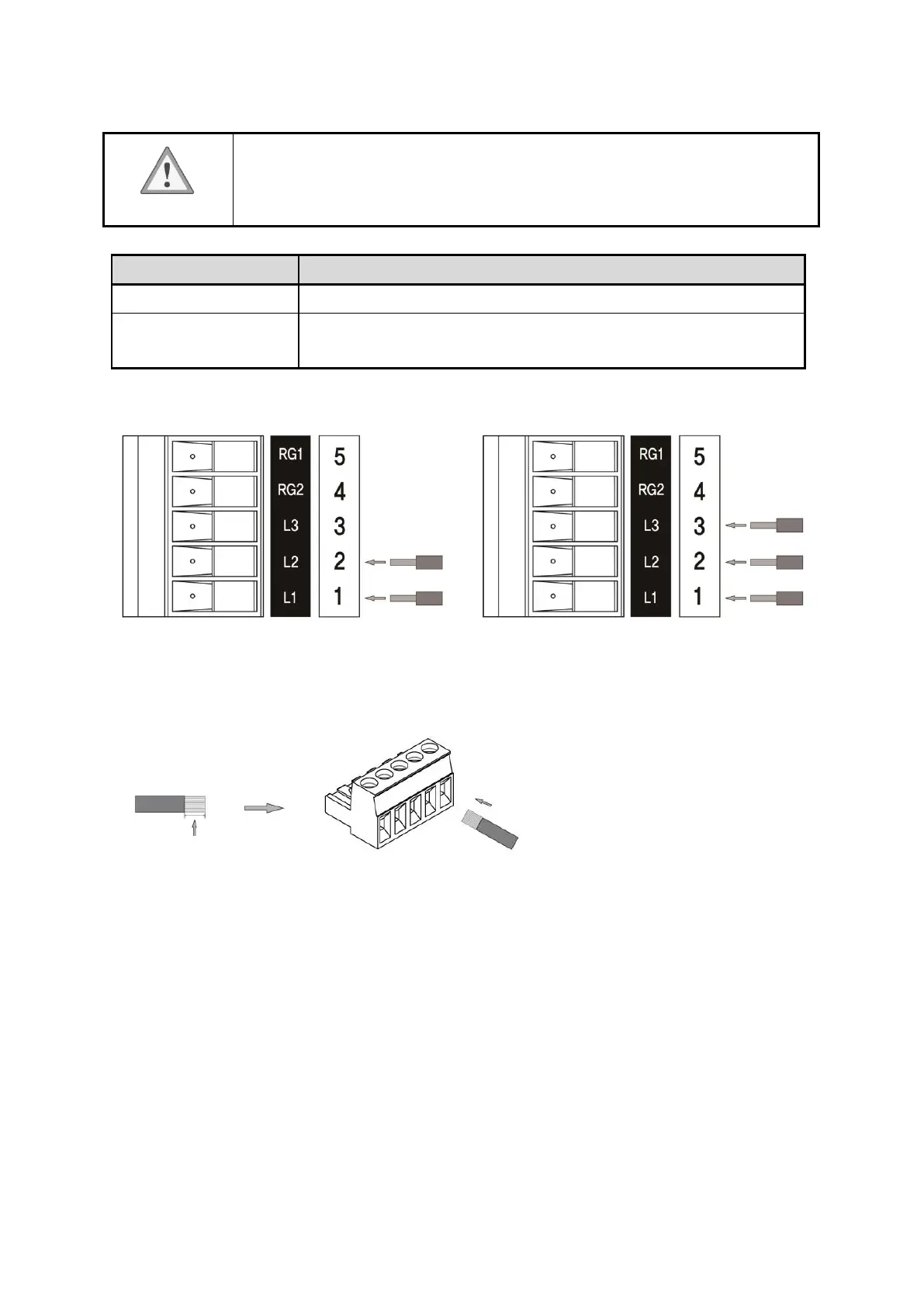

Connect Method
Single-Phase 200-240V
Wire connect to L1 and L2 terminals
Three-Phase 200-240V
Connect the R, S,and T phase lines to the L1, L2 and L3 terminals
each.
Single-Phase 200-240V Three-Phase 200-240V
• Connecting of lead wire
- Lead wire Size : AWG18 ~ 14(

󰇜
- Length of lead wire stripping : 8mm
- Conductor material : Only use copper wire.
• Molded Case Circuit Breaker
Molded case circuit breaker connect to power supply wiring of drive for protect user’s wiring.
Lead wire stripping (8mm)
Insert lead wire to connector and fixing
with driver
