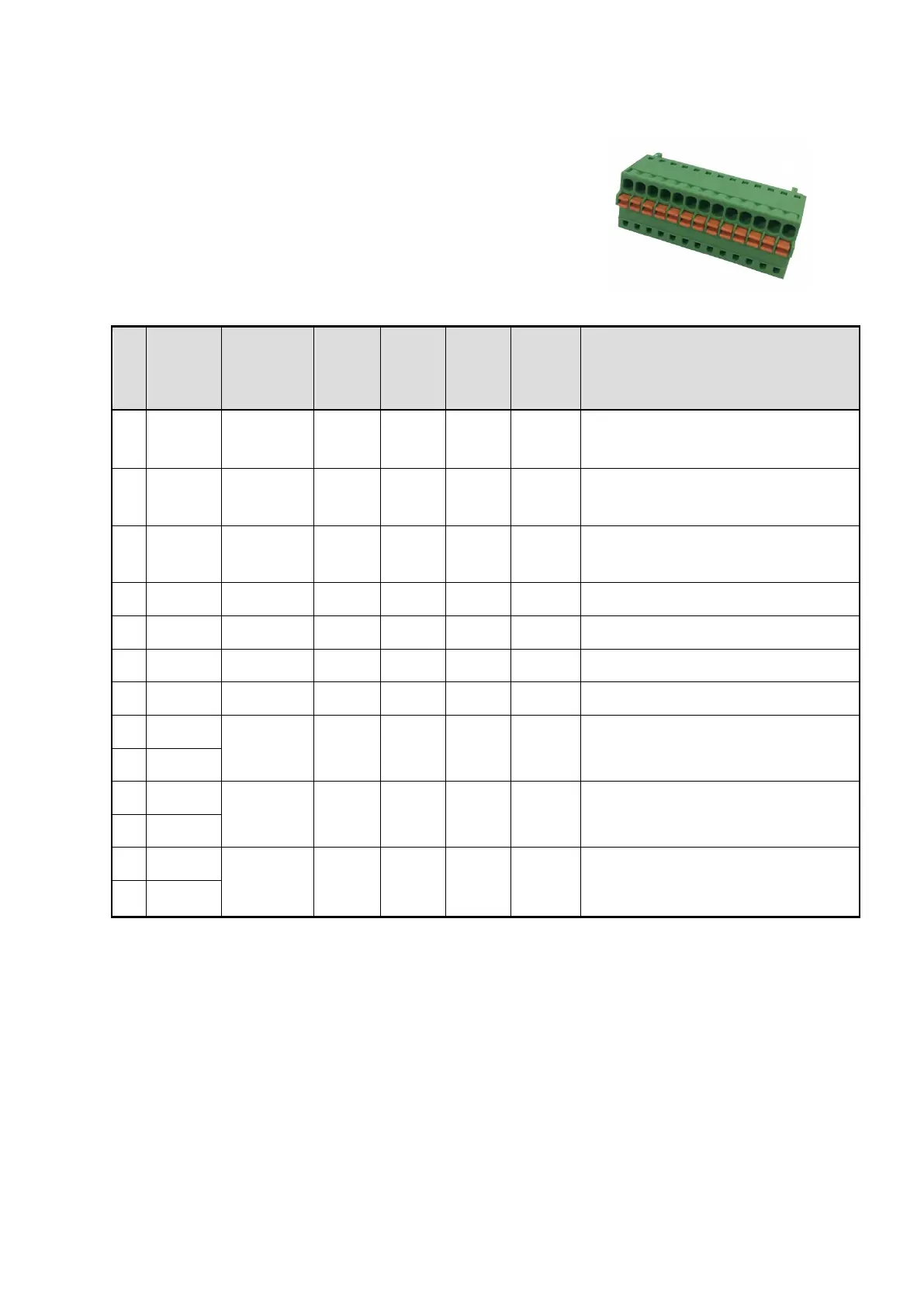

Fastech Ezi-SPEED ESD-30-C User Manual

-50-
Connector : CN4
Manufacturer : DEGSON
Part number : 15EDGKD-2.5-13P-14-12A (PCB connector - Plug)
Connector part number : 15EDGKD-13P
• Pin allotment of CN4
Pin
No.
Terminal
Name
Input/Output
Signal
Name
Internal
Power
Supply
Ext. Pwr
Source
Logic
Ext. Pwr
Sink
Logic
Description
1
HCOM
Common
-
+
Input signal common : Sink Logic : +24V,
Source Logic : 0V (GND)
2
X0
Input
[FWd]
+
+
-
The motor rotates is FWD direction
during signal “ON
3
X1
Input
[rEv]
+
+
-
The motor rotates is REV direction during
signal “ON”
4
X2
Input
[P0]
+
+
-
Select the operating data
5
X3
Input
[P1]
+
+
-
Select the operating data
6
X4
Input
[A.rSt]
+
+
-
Reset the alarm
7
LCOM
Common
-
Input signal common
8
Y0+
Output
[SPd]
Free
polarity
Free
polarity
Free
polarity
For every rotation of the motor, 30 pulses
are output
9
Y0-
10
Y1+
Output
[AL.on]
Free
polarity
Free
polarity
Free
polarity
It turns off when an alarm is generated (N
ormally closed)
11
Y1-
12
Y2+
Output
[MovE]
Free
polarity
Free
polarity
Free
polarity
It turns on when the motor is operated
(Normally opened)
13
Y2-
* Function in [ ] is assigned at shipment
Can be assigned required functions to 5 input signals(X0~X4) and 3 output signals (Y0~Y2)
• Input signals : Can be used 5 functions out of FWd(CW rotation), rEv(CCW rotation),
P0(operation data 1), P1(operation data 2), P2(operation data 2), A.rst(Alarm reset), E.Err(External
alarm), H-Fr( Motor activation / deactivation)
• Output signals : Can be used 3 functions out of SPd(Speed output), AL.on( Alarm output),
AL.ov(Overvoltage alarm output), OvLd(Overload alarm output), Mov(Motor operation output),
vA(Speed attainment alarm), WnG(Warning alarm)
