Favero Electronics FA-15 - Front Layout of the FA-15 Panel (Display)

6 / 92 0259-1060 - FA-15 User Manual - Rev03 - FAVERO ELECTRONICS
ENGLISH
• Android smartphone app for management: remote control, repeater, rmware updates and other
advanced functionality
• Can be used as a table-top device or installed on the wall (VESA 100x100 compatibility)
• Management of points, timer, match count, penalty cards, passivity and priority
• Transport case (optional).

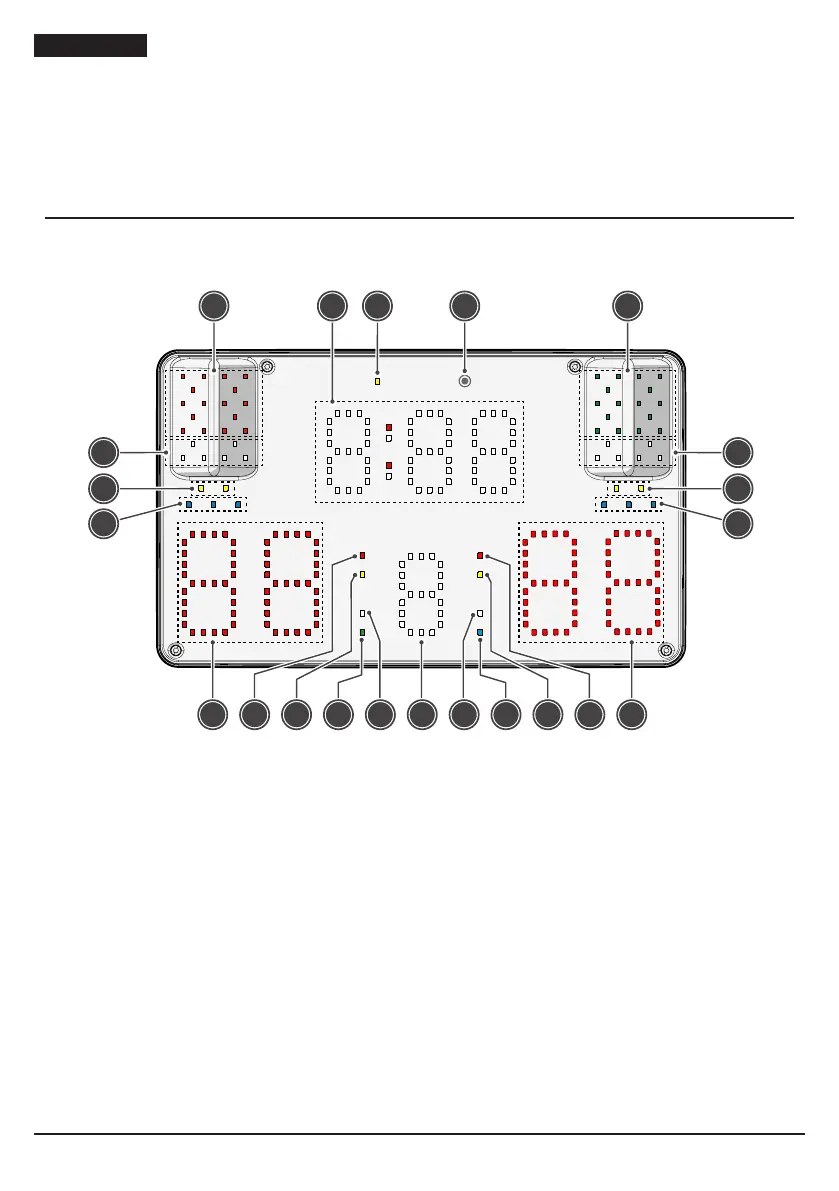

1.4. Front layout of the FA-15 panel (display)
The front of the device is entirely dedicated to a large display, including the following elements:
REMOTE
1 1
5
6
7
5
6
7
2 3 4
88 13 11129 910 1014 12
1. Indication of hits
2. Timer
3. Infrared remote control signal LED
4. REMOTE button
5. White-light indicators
6. Indication of errors
7. Passivity cards
8. Scores
9. Red cards
10. Yellow cards
11. Status LED:
• off: device operating in normal
stand-alone mode
• red: device in stand-by
• blue: device congured as MASTER
with wireless connection
• purple: device congured as SLAVE
with wireless connection
• yellow: device congured as SLAVE
with cable connection
12. Indication of priority
13. Match counter
14. Indication of rearm
Fig. 1
Front view (display).
