Bandsaw
FB 540/640/740/840/940

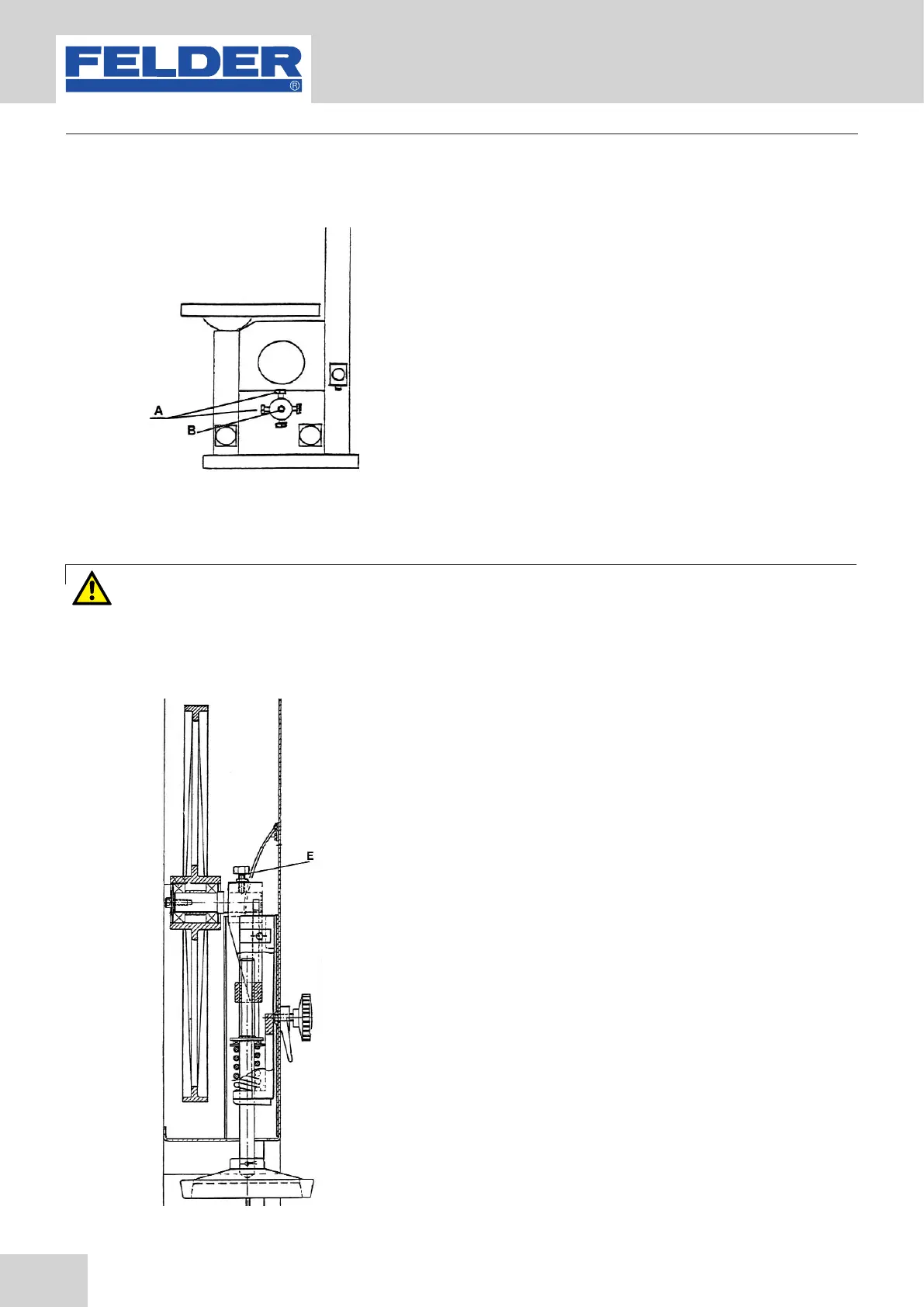

! Adjusting screw
" Clamping screw
§ Lower nut
Attention! Risk of material damage! The lower nuts are pre-adjusted and may not be adjusted.
8.2.1 Replacing the V-belt
Loosen the belt tension as instructed above. Remove the
screw and loosen the 2 indicated screws. Pull out the
wheel with the shaft.
Reverse order for assembly.
8.2.2 Disassembling the upper wheel
Loosen the screw and pull out the wheel with the shaft.
!Screw
