Bandsaw
FB 510/610/710 & FB 710 c-tech
Note::
The rolling carriage and the lifting bar (option) facilitate
the task of transporting the machine.
Accessories - Order no.:
Rolling carriage with lifting bar
Rolling carriage - 503-142
Lifting bar - 500-149
Rolling carriage without lifting bar
400-750
!Screws
6.4 Setting up the work table
• The table insert and positioning pin have to be re-
moved to set up the work table.
• Thread the work table around the saw blade and
mount to the machine using SKT screws, lock washers
and washers.
• Re-affix the table insert and positioning pin.

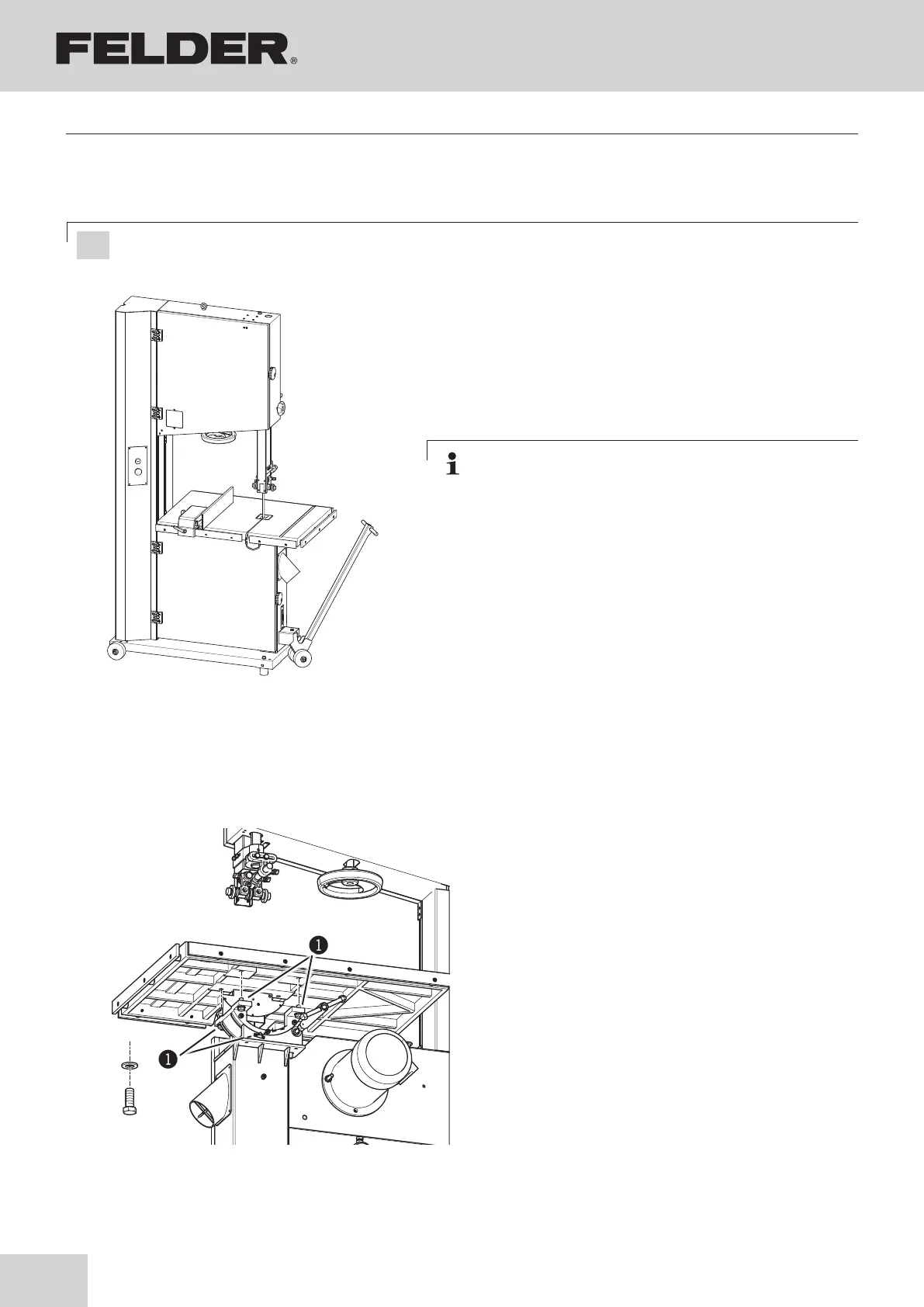

Fig. 6-2: Work table
Attention! Risk of material damage! Do not lift the machine by its work table, extension frames or hand-
wheels.
The machine can be transported with a crane, forklift,
pallet jack or rolling carriage.
Due to technical reasons, the machine is delivered in a
partly dismantled state.
6.3 Transporting the machine
Fig. 6-1: Transport with a rolling carriage
Setup and installation
