Bandsaw
FB 510/610/710 & FB 710 c-tech
Note:
There are 4 threaded holes located in the base plate of the machine where the levelling screws sup-
plied with the machine can be screwed into.

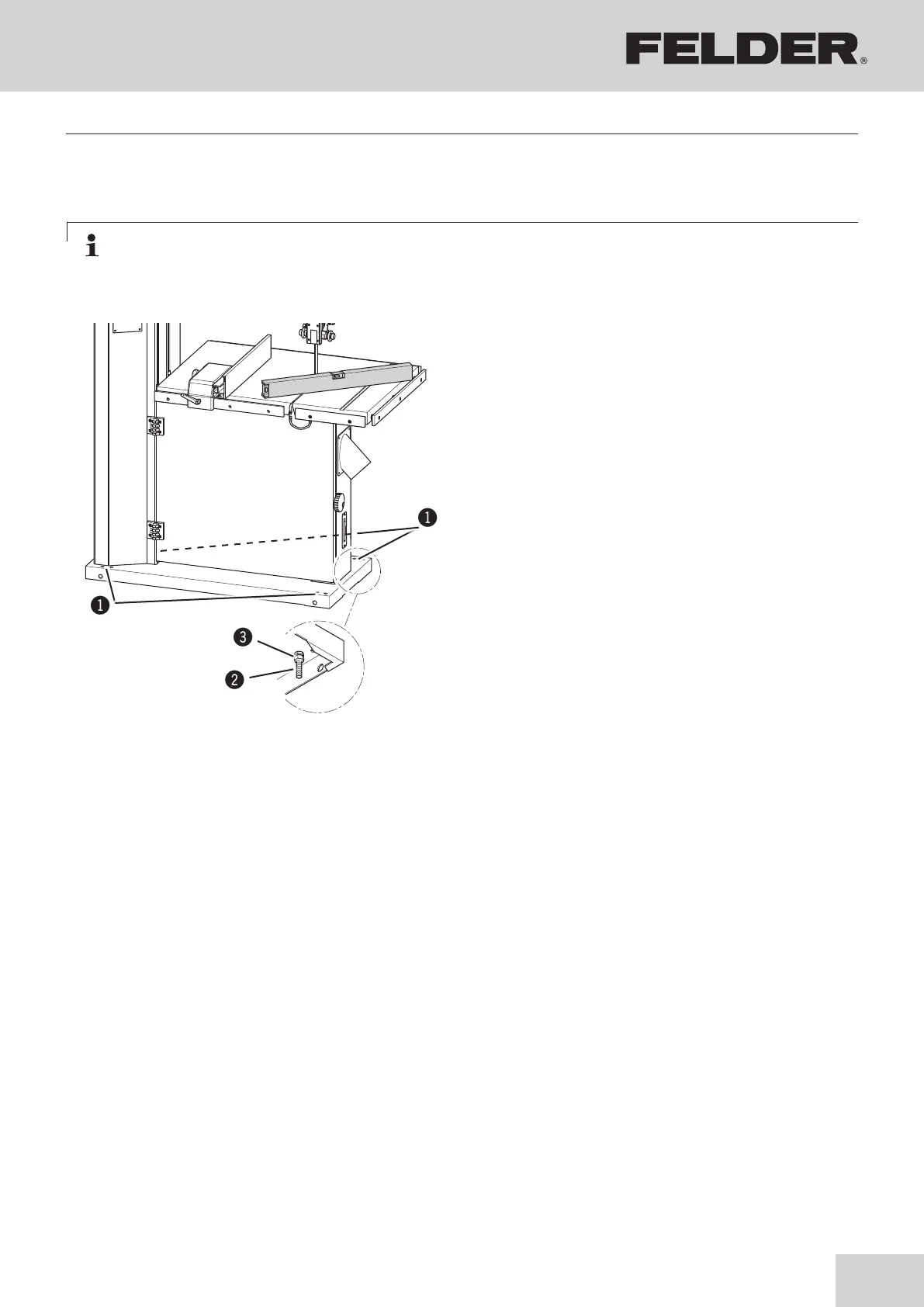

Fig. 6-3: Floor mounting
!Screws
"Adjusting screw
#Lock nut
The following points are important for a correct and effi-
cient machine installation:
• Position the machine with the aid of a spirit level to en-
sure that the machine functions precisely and operates
smoothly.
• Compensate for uneven floors with the „adjusting
screws“ or bolster the machine.
• The machine should be bolted to the floor with M10
screws for optimum stability, however take care not to
overtighten the fastening bolts as this will increase vi-
brations. It is advisable to place vibration dampening
pads between the floor and the machine.
• Install the machine in such a way as not to amplify the
vibrations and machine noise.
• Ensure that workplace lighting is adequate.
• If the machine is to be installed between other ma-
chines, leave at least 80 cm distance in-between, in
order to avoid collisions when cutting large workpi-
eces and to allow the use of equipment such as roll
supports and additional tables.
6.5 Positioning and levelling the machine
Setup and installation
