The Digital BUS2 panels are characterised by their:
- BUS2 amplifier module: a module which manages all BUS2 system functions: call, two-way
communication, door opening, programming....
It is available in audio and video (colour).
- LCD Display: The Digital panels incorporate an electronic directory which allows the user to
search for names (homeowners...) via the LCD screen.
Various system parameters can be programmed using the keypad and display.
- Numeral keypad: The keypad will generate the call code to the apartment, call extension modules
are not necessary.
Calls to apartments are made by pressing the corresponding code assigned to the apartment.
- Access Control: In addition to including access control functions using keypad codes entered on
the numerical keypad, the Digital panels allow the user connect a secondary card reader module
from the digital panel’s display. The users and their card or key codes are stored and managed
using the keypad and display.
- Programming the door lock-release time between 1 and 99 seconds.
DIGITAL BUS2 panels
The size of the DIGITAL panels is always the same, series 6, regardless of the number of apartments.
The directory panel is fitted with a set of lamps which must be connected to the BUS2
amplifier (see internal panel cabling diagrams).

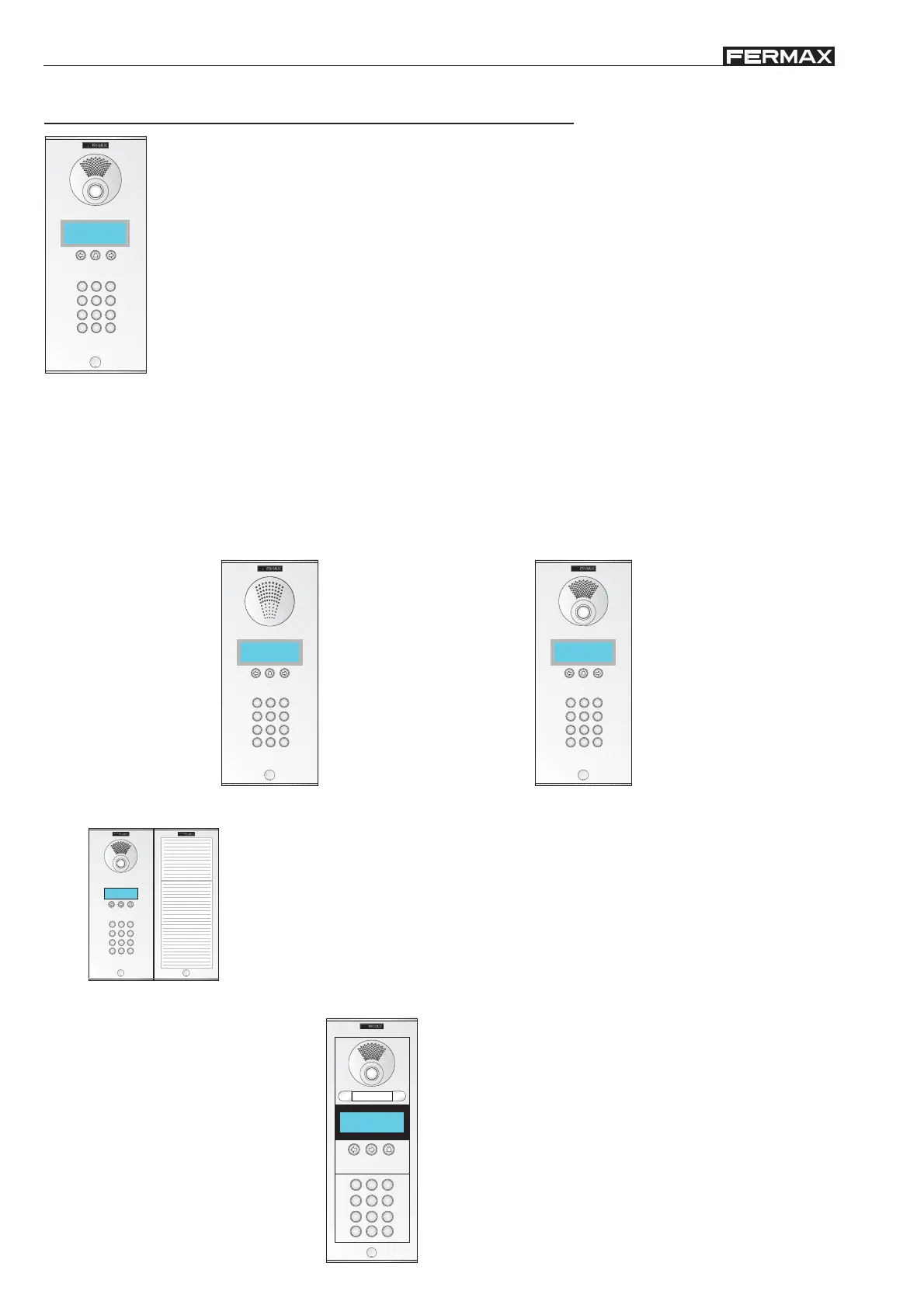

DIGITAL AUDIO BUS2 panel
* DIGITAL BUS2 panel typology
It is also possible to compile DIGITAL BUS2 modular panels and combine them with button modules:
DIGITAL VIDEO BUS2 panel
DIGITAL MODULAR panel
with buttons
In addition to the DIGITAL panels, the DIRECTORY PANEL can be installed (same series),
in the aim of saving the corresponding name for each of the residential codes. This Directory
Panel is optional as its function is already provided by the LCD display.
