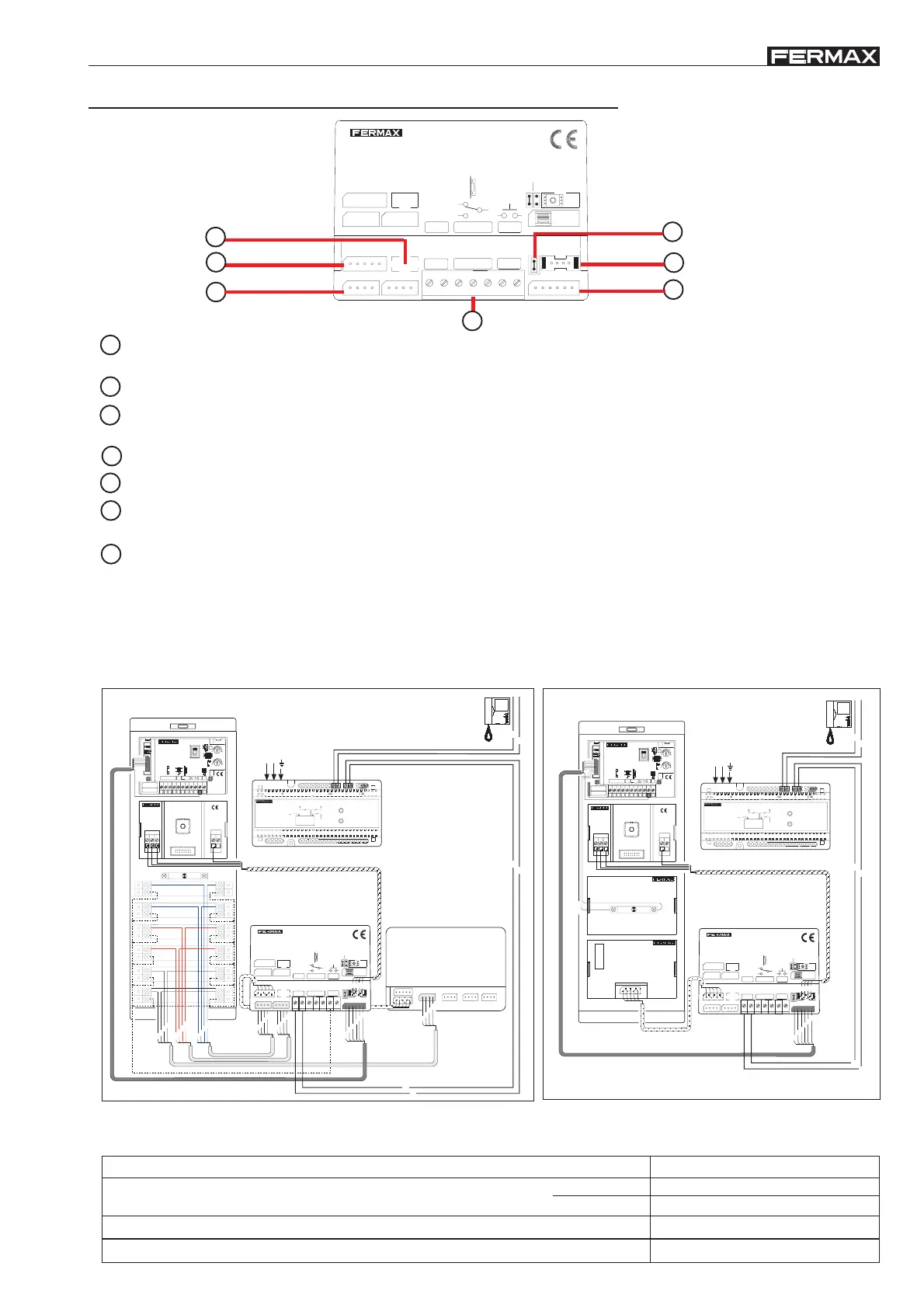

BUS2 adapter
CN6, CN7: Button connection 1 to 8 on button panels. For more buttons, use the call extension module ref. 2441.
CN2: Call extension module connection (button panels), keypad (direct panels) or display (digital panels).
2
3
JP2 : Configuration bridge Main panel (leave bridge), Secondary panel (remove bridge).
6
CN8: 4+N amplifier connection (the 4+N amplifier must be configured as “universal” and “buzzer call” using the
“PT1” and “PT2” amplifier configuration bridges).
1
CN3. Connector test: Enables the ‘BUS2 verifier’ to be connected to check the system status or to programme
the apartment terminals.
5
CN4: Remote camera connection
3
2
6
5
1
4
4
B, B: Data bus, audio and video + 24 Vdc power supply
- : Negative. On the button panels, the terminal ‘-’ must be connected to the buttons.
C, NO, NC: Potential-free door lock release relay. Activates alternating lock release (if the system is equipped
with this source), magnetic locks, signals to other devices, etc.
BS, -: Button connection to open door from hall interior.
Connection terminals:
* Technical characteristics
Consumption
Operating Temperature
24 Vdc
on standby
active audio
-10 , +50 °C
110 mA
260 mA
Power supply
PACK EXTENSION 16 LLAMADAS
PREVIOUS
REF.2441
NEXT
1
324 76598
321
CN1
FU
12 Vac/Vdc
POWER SUPPLY
ALIMENTACION
12Vdc
12Vac
Cp1
Tc
Ab
Cp2
3612
Ab
AMPLIFICADOR 4+N
4+N AMPLIFIER
AMPLIFICATEUR 4+N
4+N VERSTÄRKER
18 Vdc
VIDEO-KAMERA
PAN & TILT ±10°
VIDEO TEST MONITOR
REF. 2490
ALIMENTACION
POWER SUPPLY
-
+
CT
ENCUADRE E INCLINACIÓN ±10°
TELECAMARA VIDEOPORTERO
TELECAMERA VIDEODOOR
CAMÉRA VIDÉOPORTIER
VIDEO
V
+
-
V
M
V
JP2
CN4
CN8
CN3
CN2
CN6
CN7
28765431
TEST
JP2
BUS-2
1
EXIT
2
4
3
PACK
LAMADAS / CALLS
7
8
65
EXTENSION
PRINCIPAL
REF.3242
BUS-2 ADAPTER
ADAPTADOR BUS-2
PLACA
PANEL
CAM
MASTER
SECUNDARIA
SLAVE
1
3
5
7
2
4
6
8
Cp1
1
2
3
6
Tc
+
-
V
CT
1
2
3
4
5
6
7
8
8
7
6
5
BB
BB
NO
NC
C
NO
NC
C
-
BS
-
BS
9
10
1112
4
3
2
1
12
11
10
9
9
10
11
12
16 CALL EXTENSION PACK
COD.98577
IDIOMA
LANGUAGE
D
C
B
A
PWR BUS
PWR BUS PWR BUS
PREV BUS
ON
OVERLOAD
22
4820
PREV BUS
PRW BUS
2
24Vdc
Vac
F2
F1
B
B
B
B
B
B
12 14
1310
11 15 16
321
CN1
FU
12 Vac/Vdc
POWER SUPPLY
ALIMENTACION
12Vdc
12Vac
Cp1
Tc
Ab
Cp2
3612
Ab
AMPLIFICADOR 4+N
4+N AMPLIFIER
AMPLIFICATEUR 4+N
4+N VERSTÄRKER
18 Vdc
VIDEO-KAMERA
PAN & TILT ±10°
VIDEO TEST MONITOR
REF. 2490
ALIMENTACION
POWER SUPPLY
-
+
CT
ENCUADRE E INCLINACIÓN ±10°
TELECAMARA VIDEOPORTERO
TELECAMERA VIDEODOOR
CAMÉRA VIDÉOPORTIER
VIDEO
V
+
-
V
M
V
JP2
CN4
CN8
CN3
CN2
CN6
CN7
28765431
TEST
JP2
BUS-2
1
EXIT
2
4
3
PAC K
LAMADAS / CALLS
7
8
65
EXTENSION
PRINCIPAL
REF.3242
BUS-2 ADAPTER
ADAPTADOR BUS-2
PLACA
PANEL
CAM
MASTER
SECUNDARIA
SLAVE
Cp1
1
2
3
6
Tc
+
-
V
CT
BB
BB
NO
NC
C
NO
NC
C
-
BS
-
BS
COD.98577
IDIOMA
LANGUAGE
D
C
B
A
PWR BUS
PWR BUS PWR BUS
PREV BUS
ON
OVERLOAD
22
4820
PREV BUS
PRW BUS
2
24Vdc
Vac
F2
F1
B
B
B
B
B
B
MODULO TARJETERO PANORAMICO REF. 8820
CARDHOLDER REF. 8820
+ Pl Ck So -
MODULO TECLADO ADS DIRECT
ADS DIRECT KEYPAD
CN2
7
with button panel
7
with keypad panel
For more details, please see the ‘BUS2 Adapter’ connection diagrams (section II: installation diagrams)
Dimensions (Height x Width x Depth) 61 x 86 x 21 mm // 2.4 x 3.4 x 0.8”
