Fermax BUS2 - Bus2 System Verifier

Page 47
BB
BB
B
US2US2
US2US2
US2
BB
BB
B
US2US2
US2US2
US2
Code 97462I-1 V07_09
The BUS2 system verifier is a device aimed at technical services and installers, which allows verification of the
status of a BUS 2 system using the following functions:
• Aut: Automatic system verification. Automatic address range test (call codes assigned to apartment terminals.
• SPY: Spy. Shows data traffic on the system it is connected to.
• PnL: Auxiliary Panel. Allows the system’s telephone/monitors to be programmed and calls to be made as if it
were another entry panel.
Connection to panel’s ‘TEST’ connector
VERSION :
BUS-2
MIC
TEST
IDIOMA
LANGUAGE
AUDIO
JP1
JP2
JP3
C:12VDC
1
MASTER SLAVE
2
DRY
SECO
TERM NOTERM
C
NC
NO
EXIT
BB
NC NO C
-
BS
PACK
EXTENSION
BUS-2 VERSTÄRKER
AMPLIFICATEUR BUS-2
BUS-2 AMPLIFIER
AMPLIFICADOR BUS-2
COD.99914
PWR BUS
Vac
24Vdc
D
C
B
A
VERSION :
BUS-2
MIC
TEST
IDIOMA
LANGUAGE
AUDIO
JP1
JP2
JP3
C:12VDC
1
MASTER SLAVE
2
DRY
SECO
TERM NOTERM
C
NC
NO
EXIT
BB
NC NO C
-
BS
PACK
EXTENSION
BUS-2 VERSTÄRKER
AMPLIFICATEUR BUS-2
BUS-2 AMPLIFIER
AMPLIFICADOR BUS-2
COD.99914
PWR BUS
Vac
24Vdc
D
C
B
A

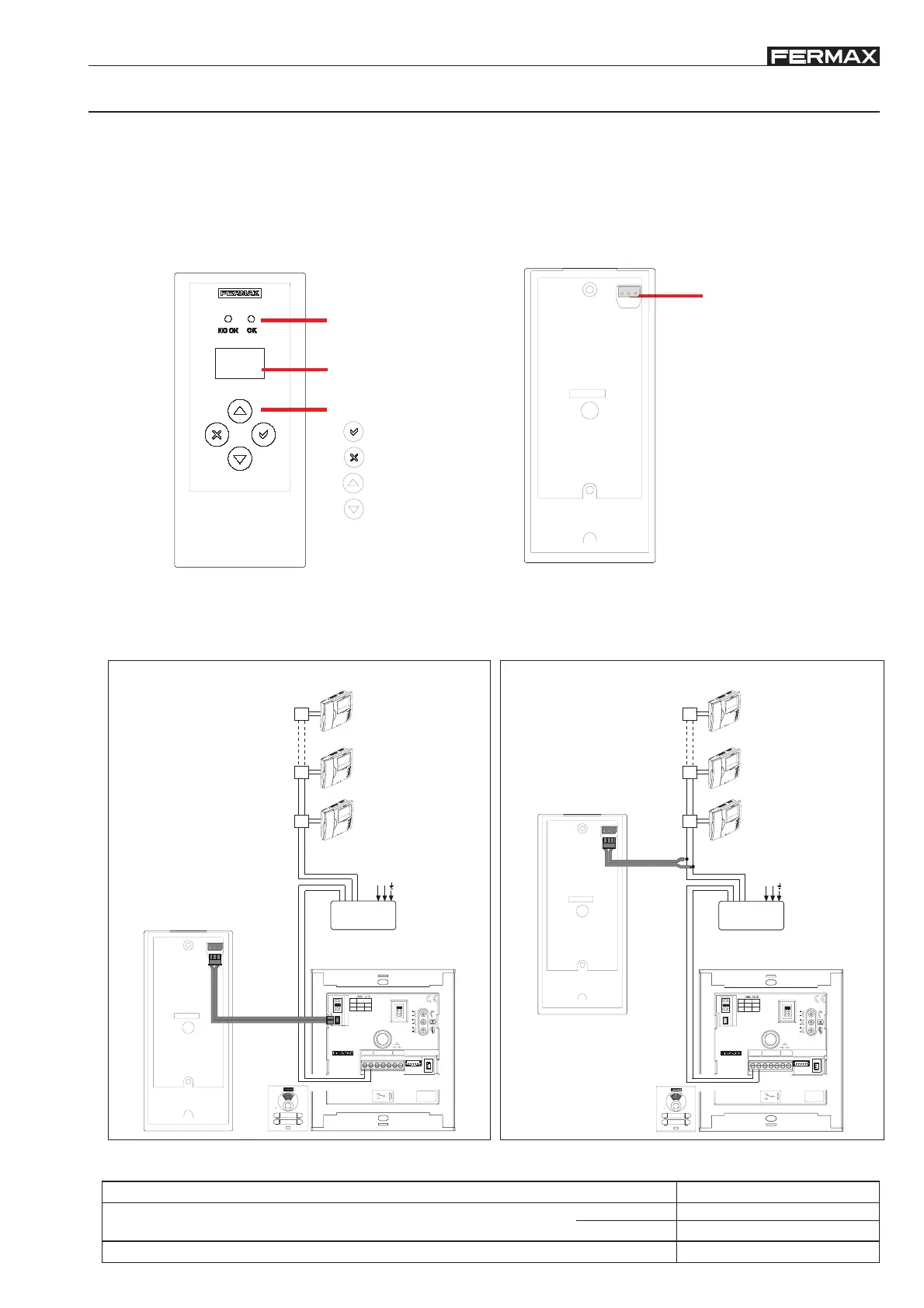

Connection to any point in the system
Two options:
* System verifier connection diagrams
* Technical characteristics
Consumption
Operating Temperature
24 Vdc
on standby
active audio
-10 , +60 °C / 14, 140ºF
26 mA
60 mA
Power supply
SYSTEM VERIFIER BUS2 (Ref.3252)
Leds:
· Green: OK
· Red: NOT OK
Display
Keys:
Confirm
Cancel
UP
DOWN
Connector
system verifier
