CASE N°2 - FERMATIC 3530 / 7530
A
B
6
M8
A B
!
!
BLOCK
DO NOT
BLOCK
D
M6
OK

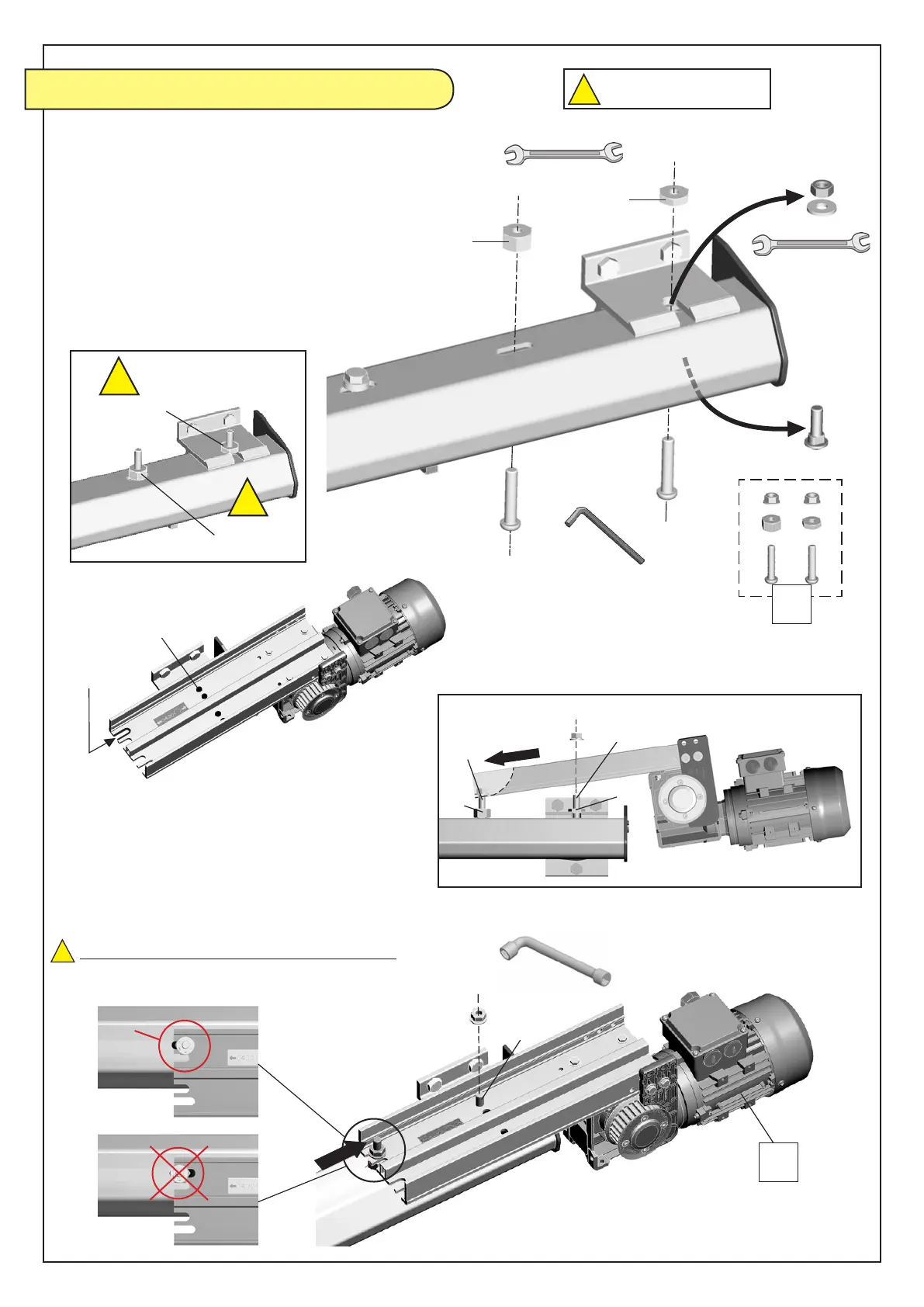

1 - Right side of the rail, remove the screw
of the end bracket.
2 - Replace the screw of the end bracket with
a screw and the spacer (B) from small bag
(M8). Block screw and spacer.
3 - Left side of the end bracket, mount spacer (A)
with the second screw from (M8) into the
rst hole of the rail.
Do not block.
4 - Engage a nut and a washer from
small bag (M8) on screw (C).
5 - Tip the motor bracket to engage
the screw (C) in the slot (c) and position
the motor bracket by engaging
the screw (D) into the hole (d) of the bracket.
6 - Push the screw (C) in the slot (c).
Block spacer (A) and nut of the screw (C).
7 - Block the nut of screw (D).
DOOR CLOSED
!
d
c
A
B
C
D
