CASE N°3 - FERMATIC 3530 / 7530
- 21 -
Keep
C
A
B
D
M8
A B
BLOCK
DO NOT
BLOCK
!
F
M6
OK

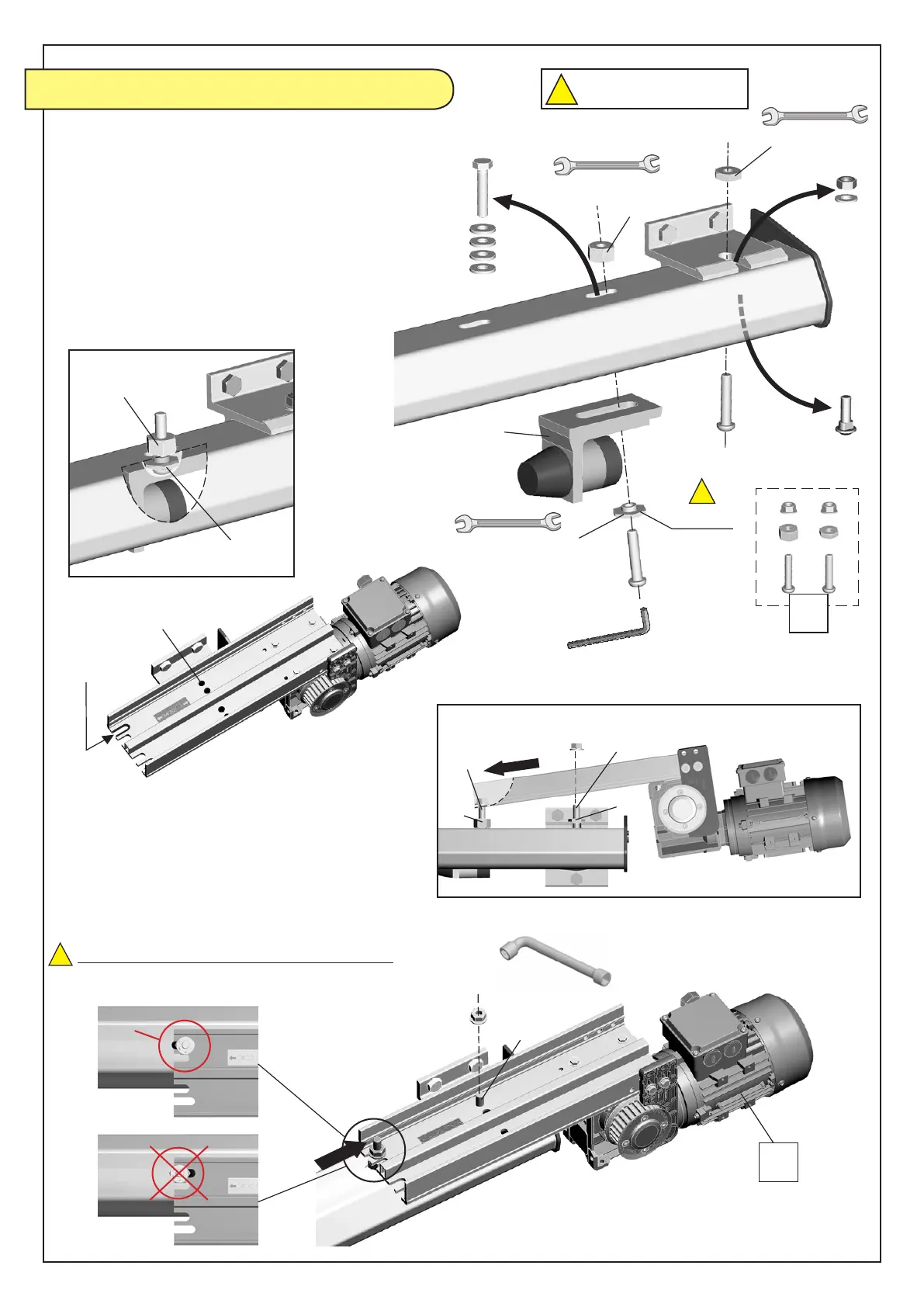

6 - Engage a nut and a washer from small
bag (M8) on screw (E).
7 - Tip the motor bracket to engage
the screw (E) in the slot (e) and position the
motor bracket by engaging the screw (F)
into the hole (f) of the bracket.
8 - Push the screw (E) in the slot (e).
Block spacer (A) and nut of the screw (E).
9 - Block the nut of screw (F).
DOOR CLOSED
!
A
B
E
F
24
17
32
6
17
1 - Right side of the rail, remove the screw of the end bracket.
2 - Replace the screw of the end bracket with
a screw and the spacer (B) from small bag (M8).
Block screw and spacer.
3 - Remove butt/opening side (C).
Keep its xing nut (D).
4 - Block nut (D) on a screw from (M8).
5 - Mount butt/opening side (C) with the
screw and nut (D) and spacer (A).
Do not block.
!
