CASE N°4 - FERMATIC 3530 / 7530
- 22 -
Keep
C
A
B
D
M8
A B
!
F
M6
OK

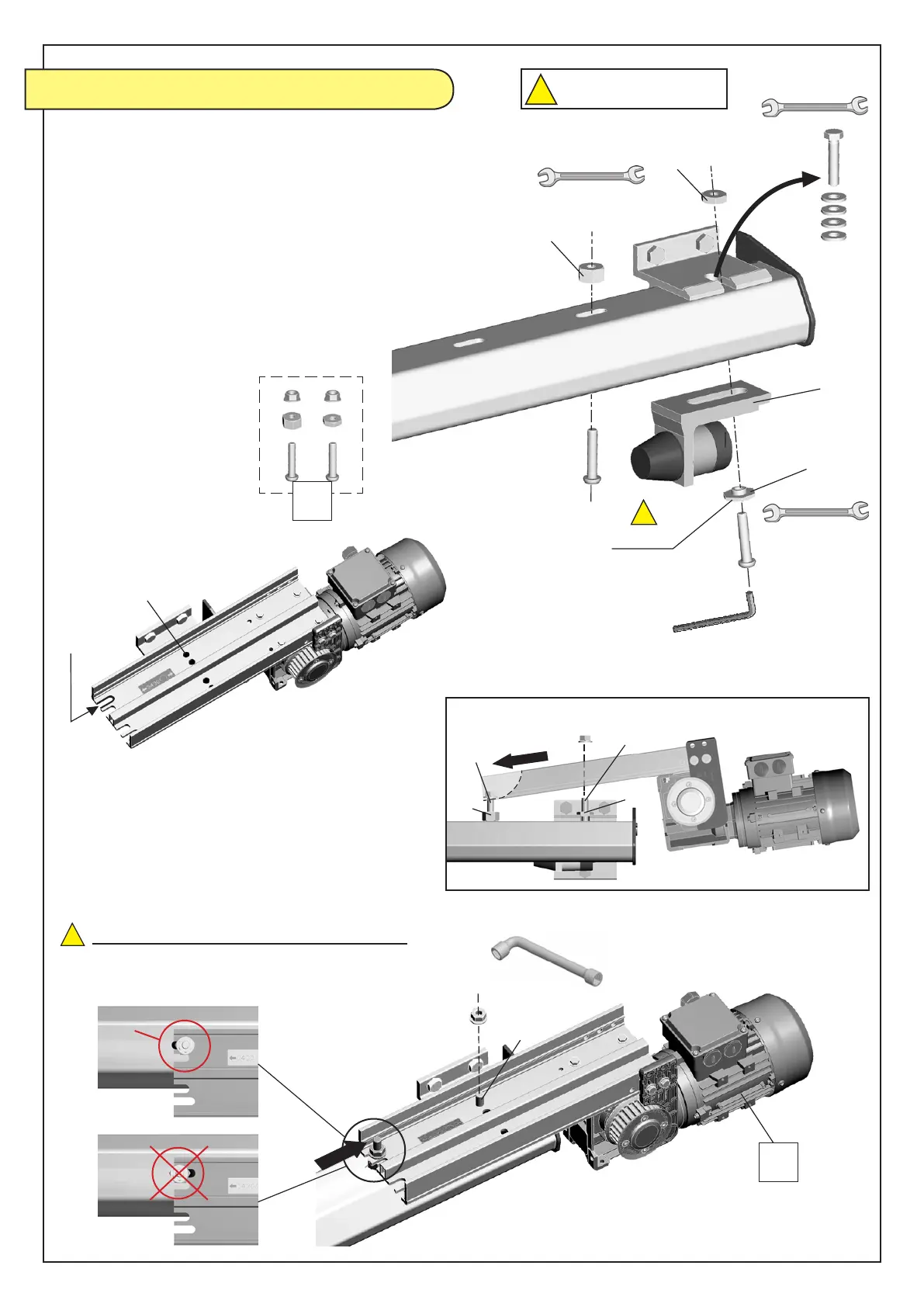

1 - Right side of the rail, remove the butt/opening
side (C) under the end bracket.
Keep its xing nut (D).
2 - Block nut (D) on a screw from small bag (M8).
3 - Mount butt/opening side (C) with the screw
and nut (D) and spacer (B). Block.
4 - Left side of the end bracket, mount spacer (A)
with the second screw from (M8) into the
rst hole of the rail.
Do not block.
5 - Engage a nut and a washer from small
bag (M8) on screw (E).
6 - Tip the motor bracket to engage
the screw (E) in the slot (e) and position the
motor bracket by engaging the screw (F)
into the hole (f) of the bracket.
7 - Push the screw (E) in the slot (e).
Block spacer (A) and nut of the screw (E).
8 - Block the nut of screw (F).
