Ferroli BLUEHELIX MAXIMA Series - Operating Instructions; Introduction; Control Panel Overview

BLUEHELIX MAXIMA
186 EN
cod. 3541U630 - Rev. 00 - 07/2020
1. Operating instructions
1.1 Introduction
Dear Customer,
BLUEHELIX MAXIMA is a high-efficiency, low emissions premix condensing heat generator with heat exchanger in
s/steel and incorporated DHW production, using natural gas or LPG and equipped with a microprocessor control sys-
tem.
The sealed chamber unit is suitable for indoor installation or outdoors in a partially protected place (according to EN
15502) with temperatures to -5°C (-15°C with optional frost protection kit).

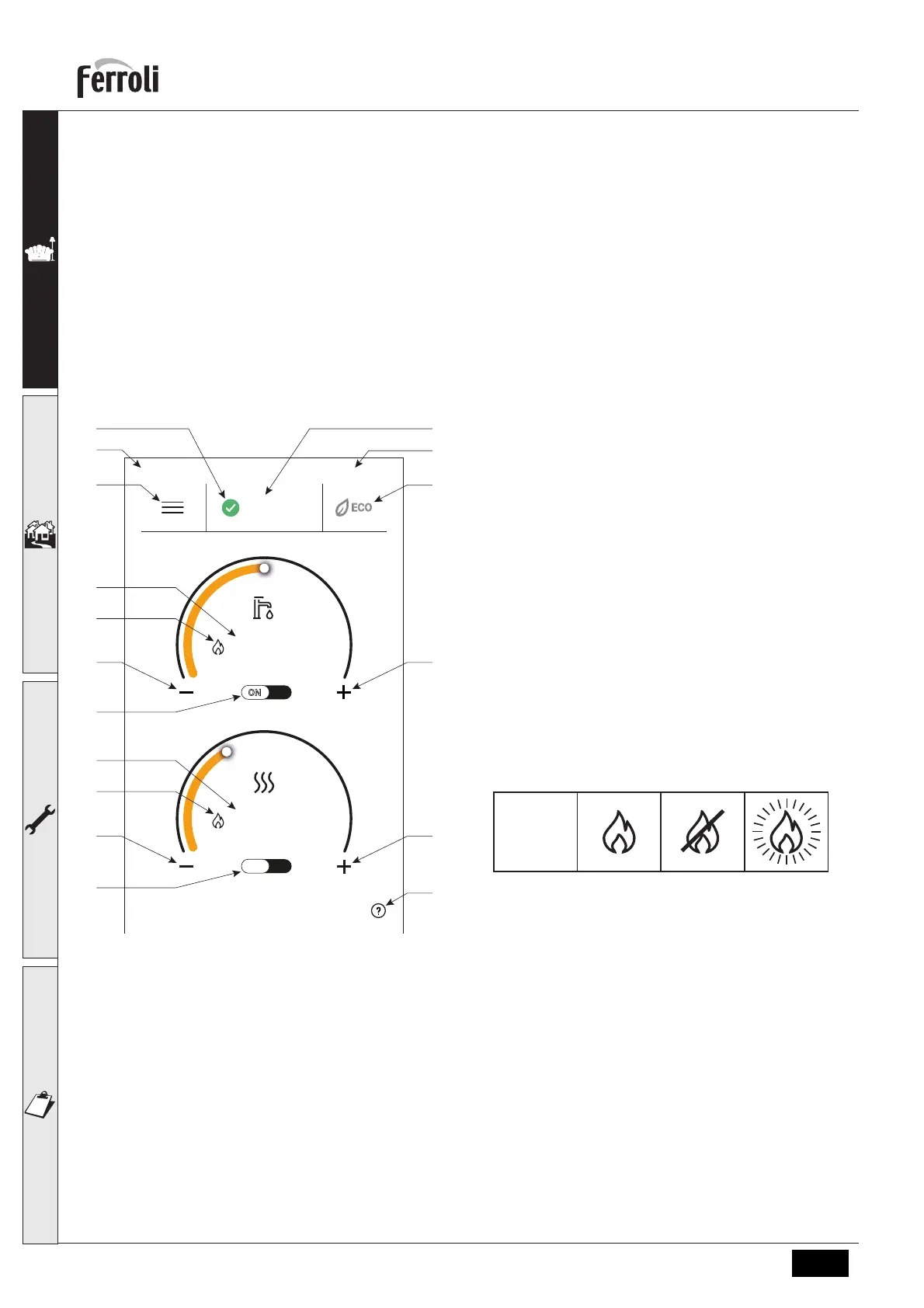

1.2 Control panel
fig. 1-
1. User menu
2. Connection status
3. Pressure status
4. System pressure
5. ECO mode on/off
6. Date and time
7. Flame present in DHW mode
8. Flame present in Heating mode
9. DHW temperature
10. Heating temperature
11. Increase DHW temperature
12. Increase Heating temperature
13. Decrease DHW temperature
14. Decrease Heating temperature
15. Boiler on/off selection
16. Heating on/off selection
17. Help
Flame status table
A flame not present
B boiler on
C boiler blocked for failed ignition
D calibration in progress
Bar
01 Mar 2020 14:36CONNECTED
1.2
32.5°
ON
28.5°
ON
1
13 11
5
6
4
12
17
14
7
15
16
9
8
10
2
3
ABCD
