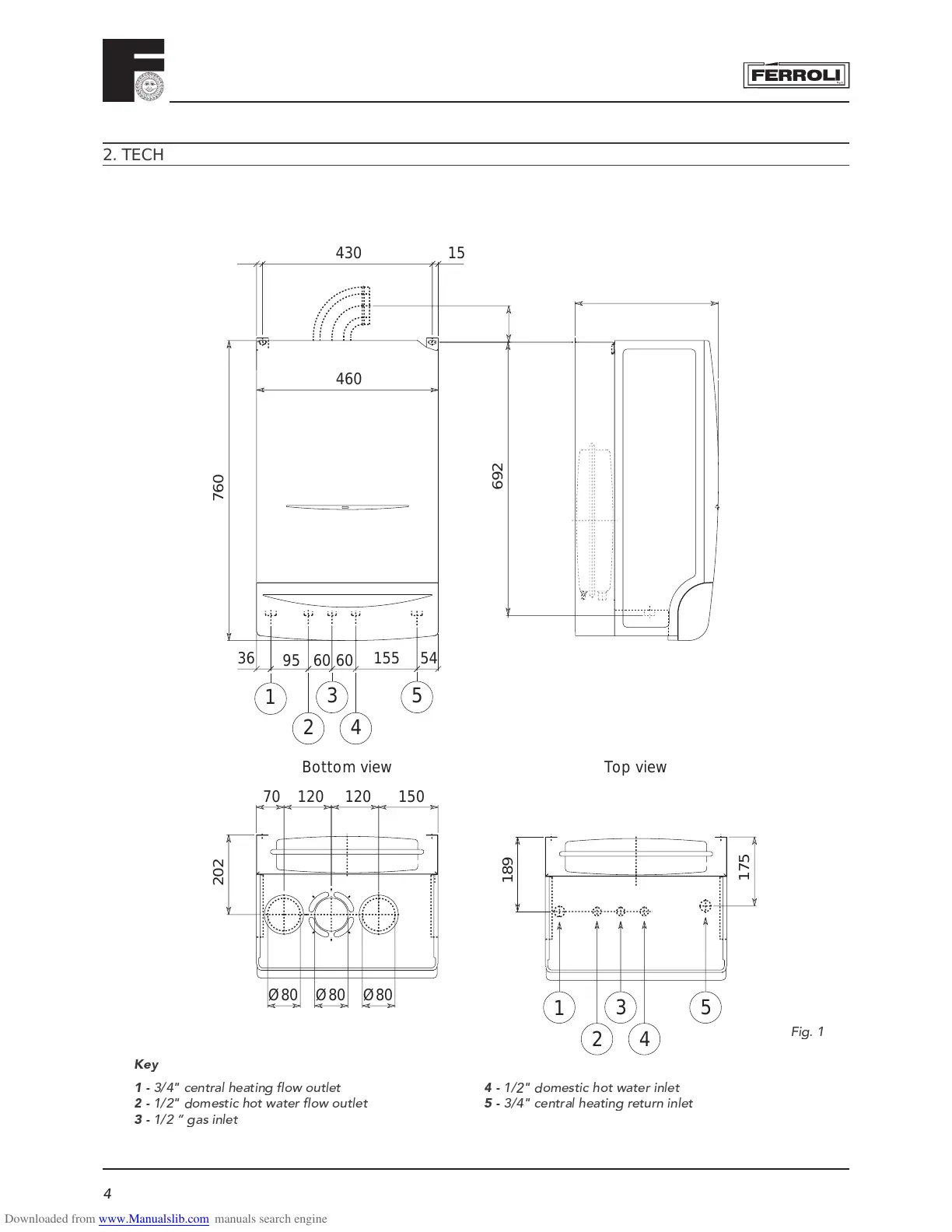

Fig. 1
2. TECHNICAL AND DIMENSIONAL CHARACTERISTICS
2.01 Technical information
Ferroli F30 boilers are central heating and domestic hot water heat generators and are produced as standard to
function with natural gas or liquid petrolium gas converted.
Key
1 - 3/ 4 " central heat i n g fl ow outlet
2 - 1 / 2 " d o m e s t i c hot water fl ow outlet
3 - 1 / 2 “ g a s i nlet
4 - 1 / 2 " d o m e s t i c hot water i nlet
5 - 3/ 4 " central heat i n g return i nlet
363
75
15 430
760
15
692
460
36 155
95
54
60
2
53
1
60
189
175
1
3 5
2
Top view
4
4
202
150
Ø80 Ø80 Ø80
120 12070
Bottom view
