For further accessories please refer to:
"Flue system manual for room sealed boiler"

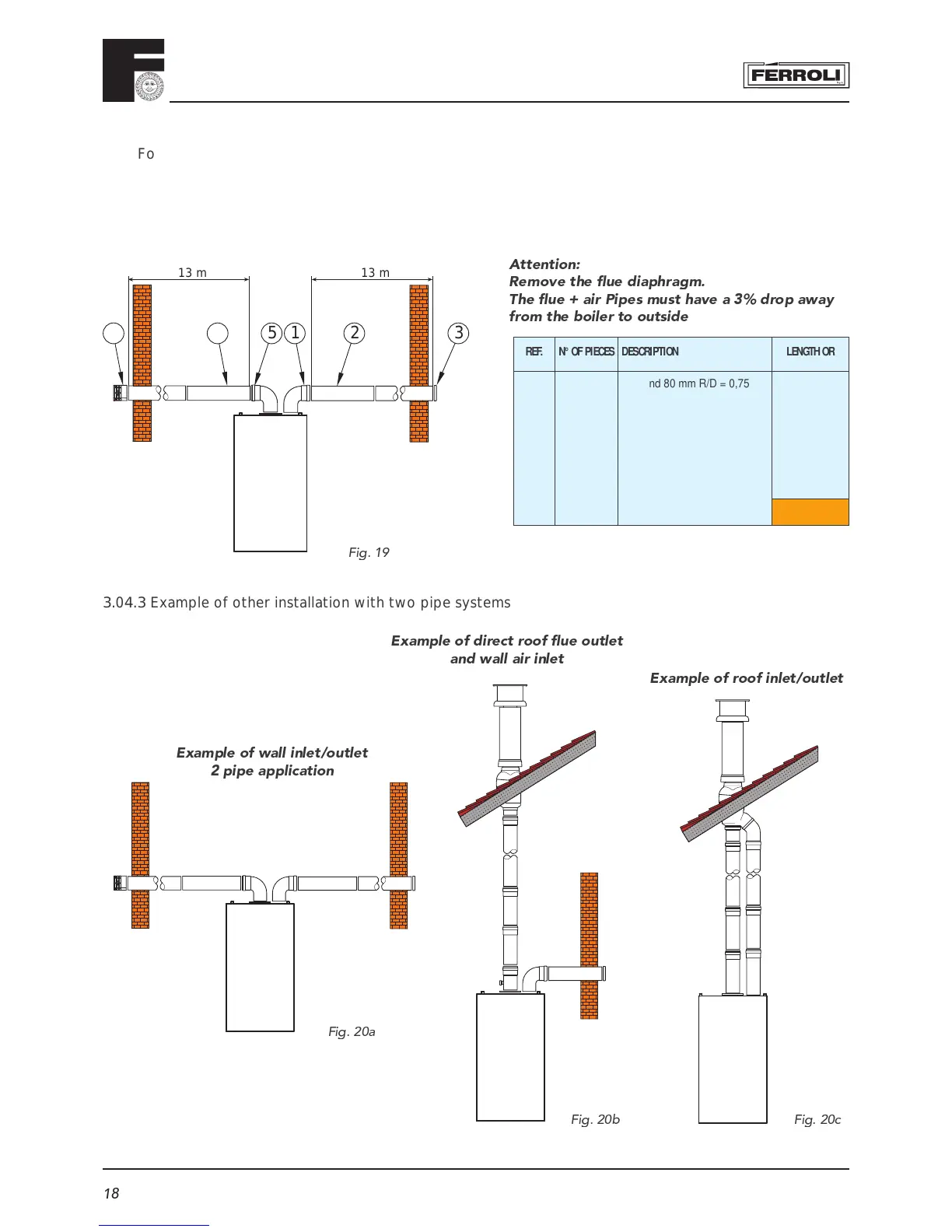

Example of calculation for wall inlet/outlet
with 2 pipe system
maximum total fl ue length: 50 metres
Attention:
Remove the fl ue diaphragm.
The fl ue + air Pipes must have a 3% drop away
from the boiler to outside
7 6 325 1
13 m 13 m
F ig. 1 9
Ex ample of wall inlet / outlet
2 pipe appli c ation
Ex ample of roof inlet / outlet
Ex ample of dire c t roof fl ue outlet
and wall air inlet
3.04.3 Example of other installation with two pipe systems
Fig. 2 0a
Fig. 20 b Fig. 20 c
REF. N° OF PIECES DESCRIPTION LENGTH OR
REDUCTION
1 1 Air bend 80 mm R/D = 0,75 1,5 m
2 13 Horizontal air pipe 13,0 m
3 1 Air wall terminal 2,0 m
5 1 Flue bend 80 mm R/D = 0,75 2,5 m
6 13 Horizontal fl ue 26,0 m
7 1 Air wall terminal outlet fl ue 5,0 m
TOTAL
50,0 m

Ferroli F30 Specifications

General

Max. Heat Output (kW)	30
Modulation	Yes
Ignition	Electronic
Safety features	Overheat protection, Flame failure device, Frost protection
Fuel Type	Natural Gas
