FERROLI F30
1
9

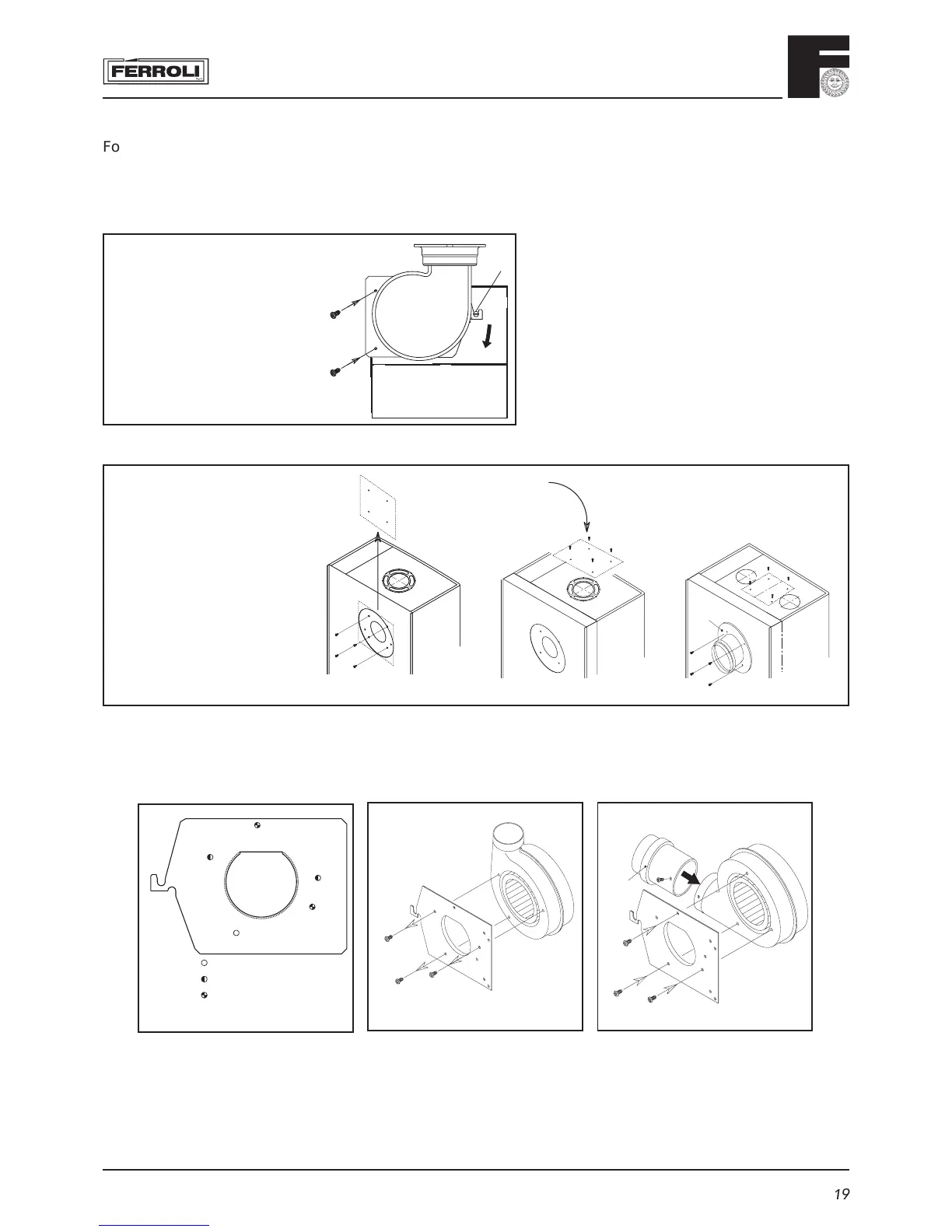

For installation (back flue connection):
For direct back flue connection it is necessary to use the optional kit, and it is required to alter the fan
direction inside the boiler.
Follow carefully next procedure:
b
b
a
A
Fig. 21b
Fig. 21c
Fig. 21d
Remove fan by pulling off electri-
cal connections. Pull off air
pressure switch tubes from the air
pressure switch remove 2 screws
b. Rotate the fan downward to
disengage it from the securing
pin a.
Take off the four screws which
fix the back plate on sealed
chamber, remove and rotate the
plate through 90° and fit it to
the top of the boiler to cover
the original flue outlet. Secure
it in place with the four screws
removed previously.
Fix with 4 screws the connections
for concentric pipe A
Remove fan mounting plate by undoing the three fixing screws d. Rotate the fan through 90° so that the fan nozzle
points sideways. Secure the fan to the plate in the new position using screws in position c.
Insert the connectios pipe B and fix with screw.
Fig. 21e
c
d
c
d
d
-
c
Common
For rear outlet
For upper outlet
Fig. 21g
B
For rear
outlet
c
c
c
Fig. 21f
d
d
d
For upper
outlet
Fig. 21a
