Festo 527464 - Setting Switching Pressure: C;01-03 Models

SDE5−...
Festo SDE5−... 0609a English
34

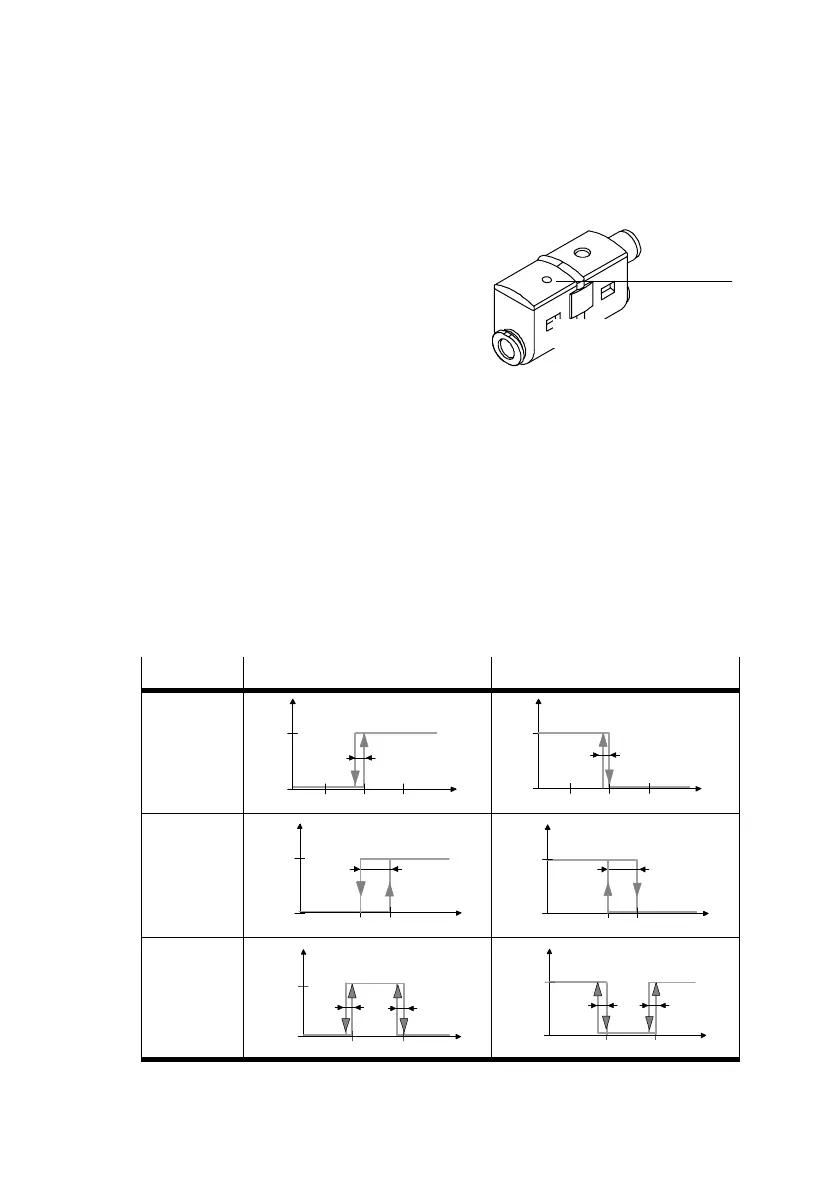

Setting the switching pressure on the
SDE5−...−C1/C2/C3/O1/O2/O3−... :
1. Pressurize the SDE5−... with the a teach
pressure (e.g. TP1). The sequence of the
teach pressures is not important.
2. Press the EDIT button 1 until the LED
flashes. When the button is released, the
SDE5−... saves the first teach pressure.
The LED then continues to flash.
3. Pressurize
the SDE5−... with the other teach pressure (e.g. TP2).
4. Press the EDIT button 1 until the LED stops flashing.
When the button is released, the SDE5−... saves the second value. The relation
ship between teach pressure, switching pressure and hysteresis is shown in
the following table. For mode 1 the switching pressure
is formed from the aver
age value of both teach pressures SP = 1/2 (TP1 + TP2).
S Carry out a test run with various pressures to ascertain whether the SDE5−...
switches as desired.
Switch element function NO Switch element function NC
Mode 1:
Threshold
value
comparator
P
1
0
OUT
SPTP1 TP2
Hy
SDE5−...−O1−...
P
1
0
OUT
SPTP2 TP1
Hy
SDE5−...−C1−...
Mode 2:
Hysteresis
comparator
P
Hy
SP=TP2TP1
1
0
OUT
SDE5−...−O2−...
P
Hy
SP=TP1TP2
1
0
OUT
SDE5−...−C2−...
Mode 3:
Window
comparator
P
1
0
OUT
SP
min
SP
max
=TP1 =TP2
Hy
Hy
SDE5−...−O3−...
P
1
0
OUT
SP
min
SP
max
=TP2 =TP1
Hy Hy
SDE5−...−C3−...
Fig.17
Fig.16
SDE5−...−C1/C2/C3/−...
.
SDE5−...−O1/O2/O3−...
1
