Festo 527464 - 11 Eliminating Faults; Troubleshooting Common Issues

SDE5−...
Festo SDE5−... 0609a English
41
13 Appendix
Functions on the SDE5−...
(A)
(B)
(C)
Run mode
Mode3
Mode2 Mode1

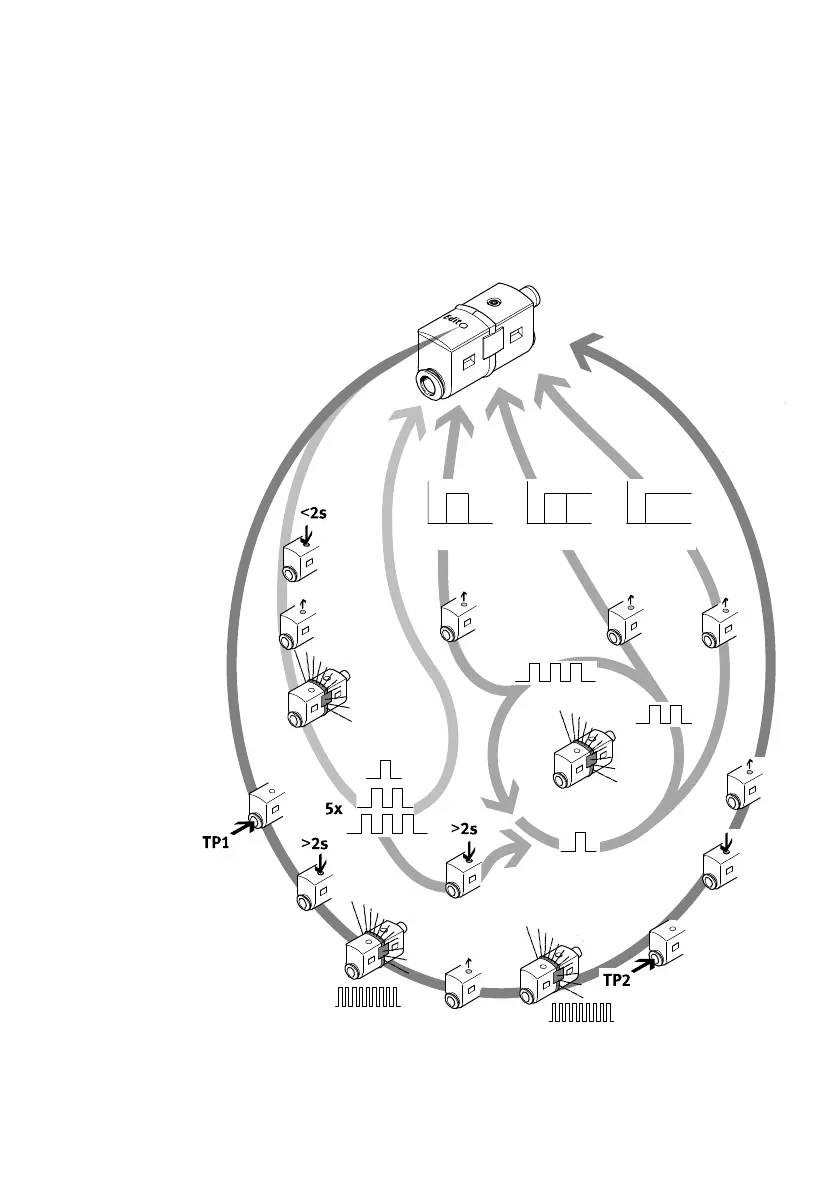

Fig.26: (A) Mode display: Display of set module
(B) Mode selection: Selection of modes 1 to 3
(C) Switching pressure setting: Teaching the switching pressures
(TP1 and TP2)
