Circuitry examples of CP-A08-M12-... (PNP outputs)
Pin assignment
Examples of circuitry
24V
A = Output
n.c. = not connected
1
2
Pin 5 only with type CP-A08-M12-5POL:
Earth connection
With type CP-A08-M12: not connected
With type CP-A08-M12-5POL:
- connection 0, 2, 4, 6: Ax+1
- connection 1, 3, 5, 7: not connected
3
4
5
Example 1
Example 2
Not permitted

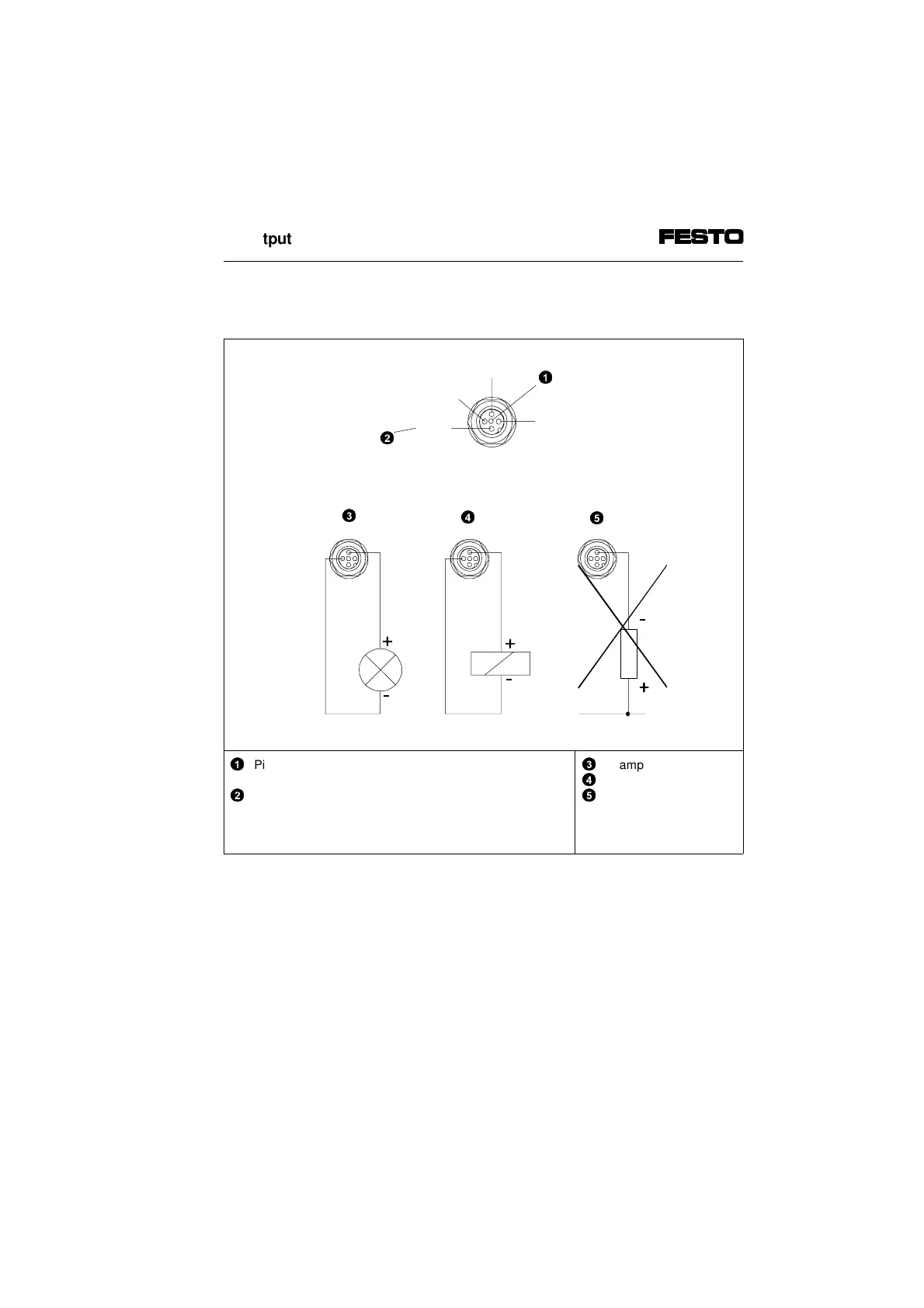

Fig. 2/6: Circuitry examples of output module CP-A08-M12-...
Pin 1: n.c.
Pin 4: Ax+1
Pin 3: 0 V
Pin 2:
2
1
4
5
3
2. Output module type CP-A08...-M12-...
