Pin assignment of the actuator connections
CP-A08N-M12 (NPN outputs)
1
*)
Earth connection
Consuming device/load must be supplied via this 24 V connection
n.c. = not connected
A = Output

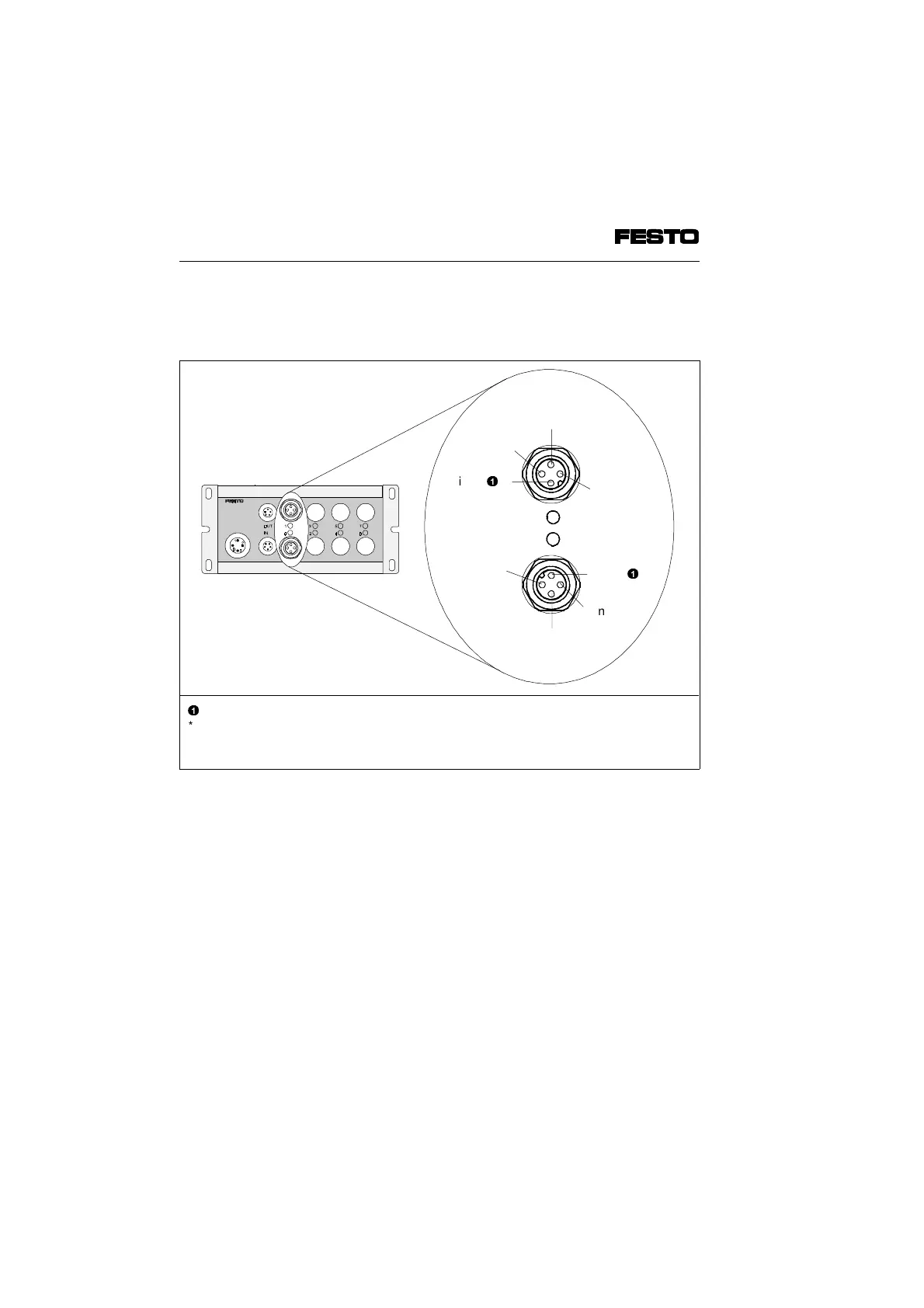

Fig. 2/7: Pin assignment of output module CP-A08N-M12
Ax+1
Ax
Pin 2: 1
Pin 2: 1
Pin 3: n.c.
Pin 3: n.c.
Pin 4: Ax
Pin 4: Ax+1
Pin 1: 24 V
*)
Pin 1: 24 V
*)
2. Output module type CP-A08...-M12-...
2-10 CP-A08...-M12 9901b
