Festo CP-FB09-E - DIL Switch Settings

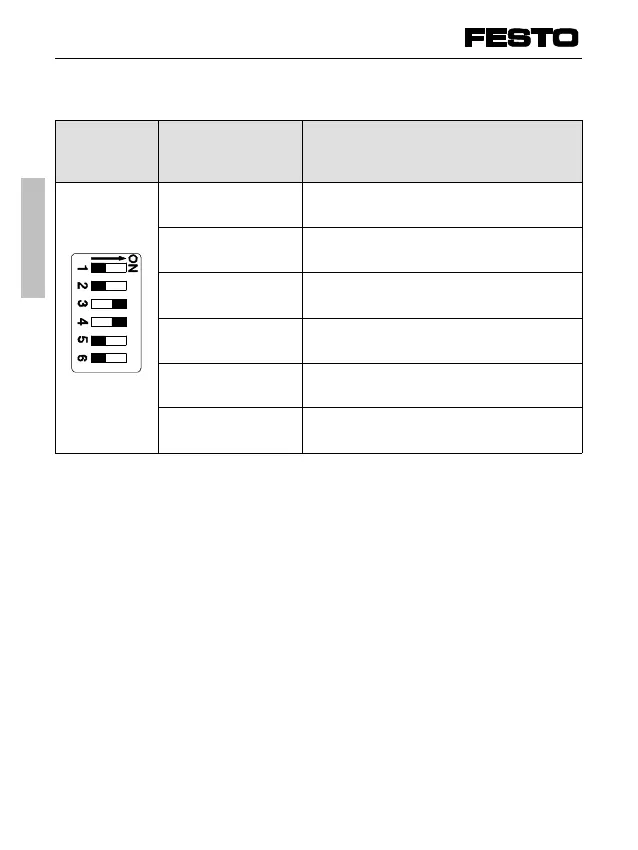

Setting the DIL switch
DIL switch
(factory
setting)
Element Function
1
Station number
ON: station number > 100
OFF: station number < 100
2 not assigned; reserved
switch has no effect regardless of setting
3
Fieldbus protocol ON: must be set at ON
4
Fieldbus protocol
ON: must be set at ON
5
Fieldbus protocol OFF: must be set at OFF
4
Fieldbus protocol OFF: must be set at OFF
Fieldbus baud rate
The CP node sets itself to the correct baud rate.
English
CP FB9-E
14
9709 NH
