Festo CP-FB09-E - Pin Assignment; LED Display Meanings

3

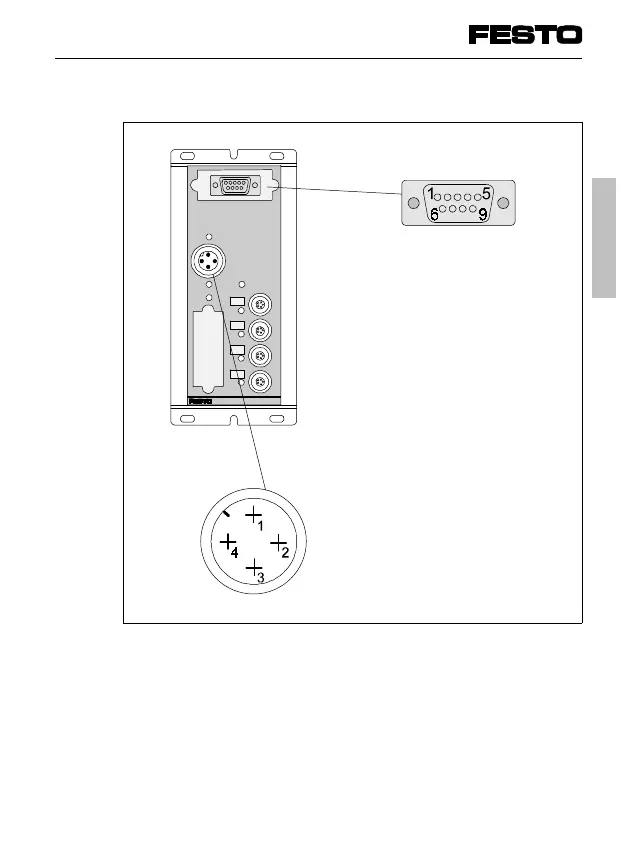

Pin assignment
Fieldbus
1 n.c.
2 n.c.
3 RxD/TxD-P
4 CNTR-P
5DGND
6VP
7 n.c.
8 RxD/TxD-N
9 n.c.
Housing Screening
Operating voltage
1
2
3
4
24 V supply electronics and
inputs
24 V-supply valves and
outputs
0 V
PE (protective earth
connection, leading socket)
Meaning of the LED displays
Refer to manual "CP fieldbus node 9".
0
1
3
2
SAVE
POWER
24 VDC
POWER V
ERROR
PROFIBUS-DP
BUS ERROR
English
CP FB9-E
9709 NH 15
