Festo CP-FB09-E - Addressing Example

4

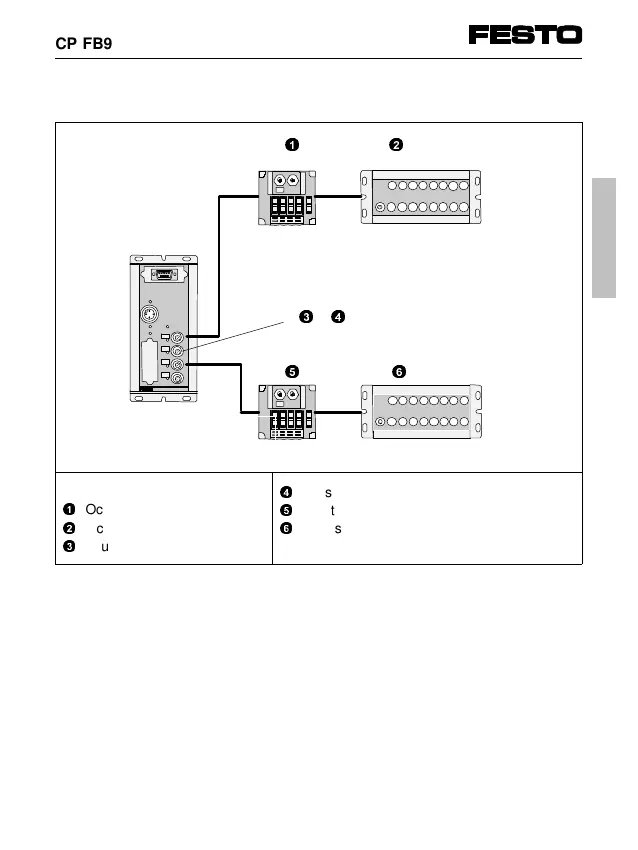

Addressing (example)
Adresse 12
1 Octets 1/2: A20.0 ... A21.7
2 Octets 1/2: E20.0 ... E21.7
3 unused
4 unused
5 Octets 5/6: A24.0 ... A25.7
6 Octets 5/6: E24.0 ... E25.7
A = output; E= input
1. A CP valve location occupies two addresses:
– lower valve address = pilot valve coil 14
– higher valve address = pilot valve coil 12.
2. Electrical output or input modules occupy
16 output or input addresses.
You will find detailed information on addressing in the manual
"CP system".
0
1
3
2
SAVE
POWER
24 VDC
POWER V
ERROR
PROFIBUS-DP
BUS ERROR
1 2
34
56
English
CP FB9-E
9709 NH 17
