12

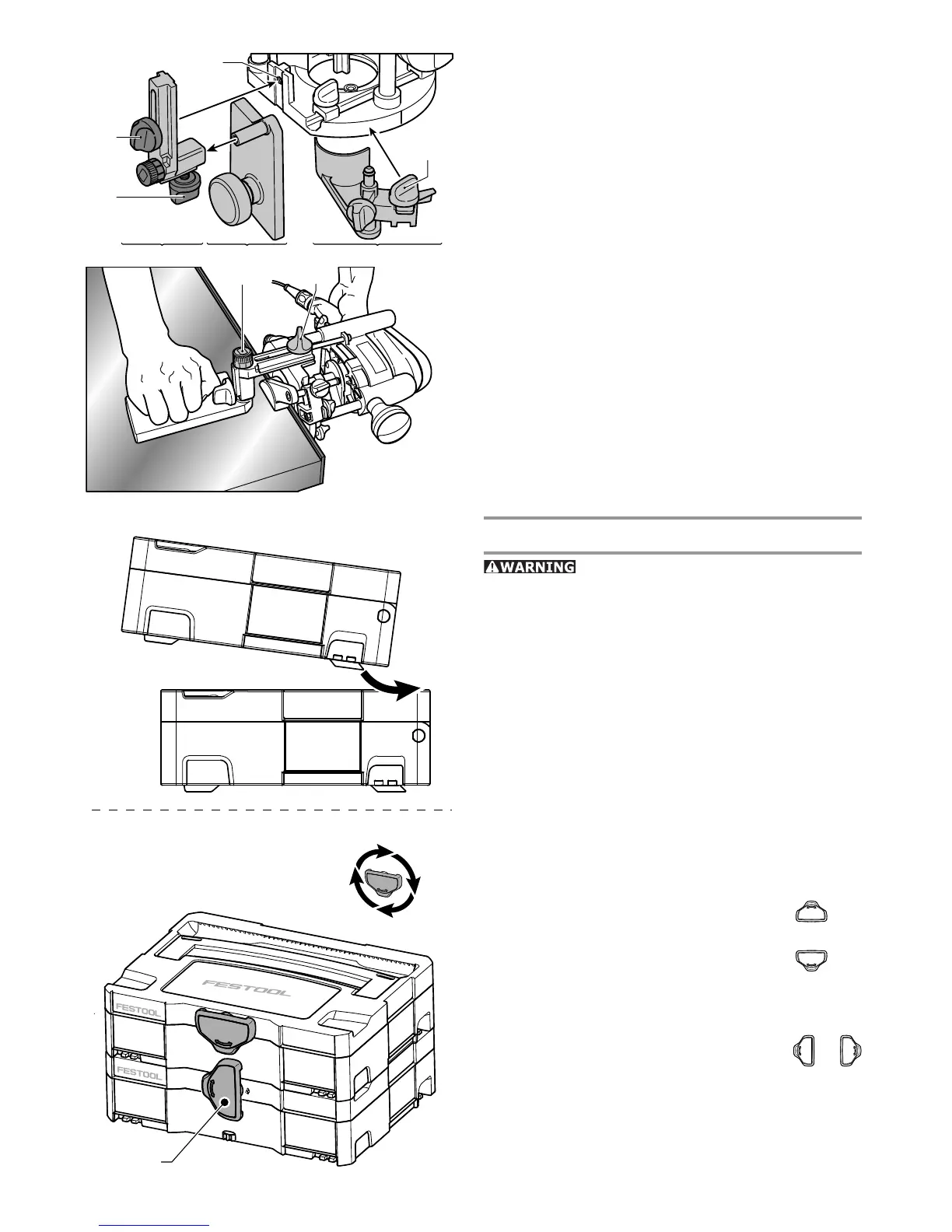

Edge band trimming
Protruding edge bands can be fl ush trimmed with
the angle arm WA-OF (14.4) in connection with the
guide plate UP-OF (14.5) (accessories).
- Screw the angle arm into the platen’s threaded
bore (14.1) with the rotating knob (14.2).
- Bolt the guide plate to the angle arm with the
rotating knob (14.3).
- Adjust the milling depth so that this is equal to
the thickness of the edge band + 2 mm.
- Move the guide plate (14.5) as close as possible to
the cutter by loosening the rotating knob (14.9).
- Adjust the depth of the guide plate with the ad-
justing wheel (14.8) so that during trimming a few
decimillimetres of the edge band are left protrud-
ing which can then be sanded down by hand.
The chip guard SF-OF (14.6) (accessory) improves
dust extraction when trimming edge bands. It is
fastened to the side of the platen with the rotating
knob (14.7) and cover the cutter from above during
work.
Accessories, tools
For safety reasons, only use original
Festool accessories and tools!
Festool offers a wide range of accessories for the
routers, e.g. to make wooden joints or drill rows
of holes.
The accessory and tool order number can be found
in the Festool catalogue or on the Internet under
www.festoolusa.com.
Systainer
Many Festool products are shipped in a unique
system container, called "Systainer". This provides
protection and storage for the tool and accessories.
The Systainers are stackable and can be interlocked
together. They also can be interlocked atop Festool
CT dust extractors.
– To open the Systainer:
• Turn the T-loc [15.1] to the position
.
– To lock the Systainer:
• Turn the T-loc [15.1] to the position
.
– To connect two Systainers:
• Place one Systainer on the top of the other
(Fig. 15 A).
• Turn the T-loc [15.1] to the position
or
(Fig. 15 B).
The Systainers are connected and locked.
A new generation Systainer is connectable on
top of a previous generation Systainer by the four
latches of the previous Systainer.
14.8
14.9
open
lock
connect
connect
T-loc
15.1
A
15
B
14.3
14.1
14.2
14.7
14.4
14.5 14.6
