Technical data
Power input 1010 W (8.4 A)
Speed of drive shaft 9 500 - 23 000 rpm
Quick height adjustment 55 mm (2.17“)
Fine height adjustment 8 mm (0.31“)
Drive shaft connection of the spindle M 16x1.5
Weight 2.7 kg (6.0 lbs)
Protection class
/ II
Symbols
Warning of general danger
Read the Operating Instructions/Notes!
Wear a dust mask.
Wear protective goggles!
V volts
A amperes
Hz hertz
W watt
~ alternating current
n
0
no load speed
Class II Construction
rpm revolutions or reciprocation per minute

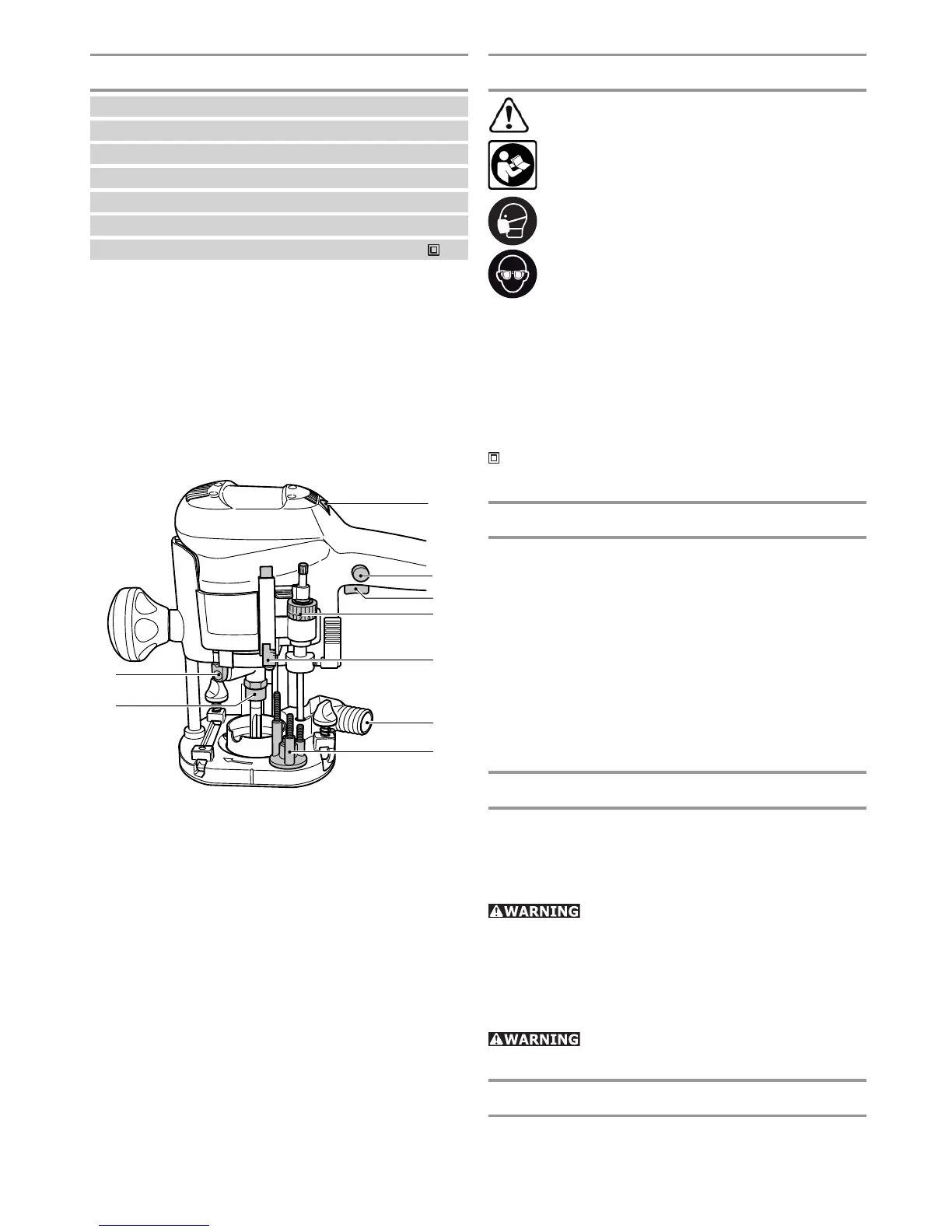

Functional description
1.1 Speed controller
1.2 Locking button
1.3 On/Off switch
1.4 Depth adjustment
1.5 Scale
1.6 Extractor connection piece
1.7 Pivoted turret stop
1.8 Collet nut
1.9 Spindle stop
Use for intended purpose
The routers are designed for routing wood, plastics
and similar materials. Aluminium and plasterboard
can also be processed with corresponding cutters
such as are listed in the Festool catalogues.
Festool electric power tools should
only be installed in work benches specially de-
signed by Festool. The electric power tool may
become unsafe and cause serious accident if in-
stalled in benches from other manufacturers or
self-manufactured work benches.
The user is liable for damages and
injuries due to incorrect usage.
Electrical connection
The network voltage must conform to the voltage
indicated on the rating plate. A 16 A safety fuse (for
