9
b) Setting the milling depth
The desired milling depth can be set either with
the quick depth adjustment or with the fi ne depth
adjustment.
- Quick depth adjustment: Pull the stop cylinder
(7.5) up until the pointer shows the desired mill-
ing depth. Clamp the stop cylinder in this position
with the clamping lever (7.4).
- Fine depth adjustment: Lock the stop cylinder
with the clamping lever (7.4). Set the desired mill-
ing depth by turning the adjusting wheel (7.2) in.
Turn the adjusting wheel to the next mark on the
scale to adjust the milling depth by 0.1 mm. One
full turn adjusts the milling depth by 1 mm. The
maximum adjustment range with the adjusting
wheel is 8 mm.
c) Increasing the milling depth
Open the rotary knob (7.8) and press the tool down
until the stop cylinder touches the sensing stops.
Working with the router
Always secure the workpiece in such a
manner that it cannot move while being sawed.
The machine must always be held with
both hands by the designated handles.
Always switch the router on fi rst before
bringing the tool into contact with the workpiece!

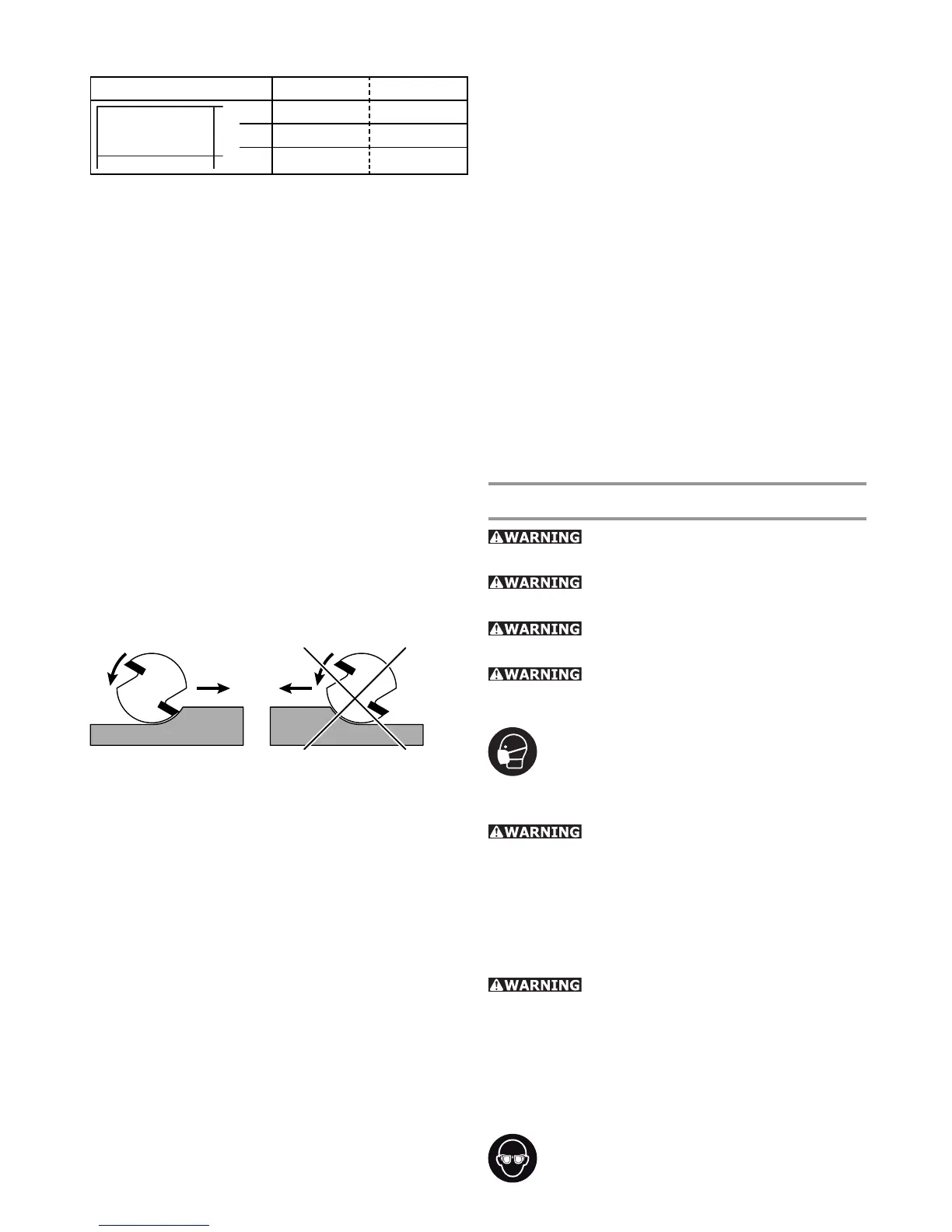

Always advance the router in the
same direction as the cutting direction of the cutter
(counter-routing)!
You should wear a dust mask for work which
produces dust.
Support of the workpieces
Ensure that your workpieces are
securely fi xed and cannot move during routing.
Otherwise, there is an increased risk of accident.
Use screw clamps or some other suitable devices
to fi x your workpiece.
Aluminium processing
The following precautions are to be
taken when processing aluminium for safety rea-
sons:
- Pre-connect a residual current circuit-breaker.
- Connect the machine to a suitable dust extractor.
- Clean tool regularly of dust accumulations in the
motor housing.
Wear protective goggles!
8
Sensing stop min. height max. height
Sensing stop /
Butée fixe /
Tope fijo
