Specifications and Requirements
Water Requirements:
Electrical:
See electrical configuration chart on page three.
CBS-1250 series brewers use a terminal block for
electrical connection
CBS-1251; CBS1252 &1253:
20-75 psig, (138-517kPa) 1½gpm/(5.7lpm)
Water inlet fitting is a 3/8 inch male flare.
Brewer supplied with inlet valve adaptor for BSP to SAE
Tank Temperature, as set by factory:
200°F (93°C) inside water tank (at sea level)
CBS-2151 and CBS-2152
Brew Volume: First Batch 1½ gallons/ 6 liters
Second Batch 1 gallon/ 3.8 liters
CBS-2153 -2 gallon
Brew Volume: First Batch 2 gallons/ 7.6 liters
Second Batch 1 gallon/ 3.8 liters
Water supply: (Optimal) 100-150TDS
All beverage equipment must use filtered water.
Total Brew Cycle—Factory Default Settings
CBS-2151 1½ gal Factory default setting
First batch 1½ gal: 6:30 minutes=[5 minute brew time + 1.30 minute drip delay] + 10% Bypass
Second batch-1 gallon: 5:30 minutes=[4 minute brew time + 1.30 minute drip delay] + 0% Bypass
CBS-2152 1½ gal Factory default setting:
First batch 1½ gal: 6:30 minutes=[5 minute brew time + 1.30 minute drip delay] + 15% Bypass
Second batch-1 gallon: 5:30 minutes=[4 minute brew time + 1.30 minute drip delay] + 0% Bypass
CBS-2153-2 gallon Factory default setting:
First batch 2 gal: 6:30 minutes=[5 minute brew time + 1.30 minute drip delay] + 15% Bypass
Second batch-1 gallon: 5:30 minutes=[4 minute brew time + 1.30 minute drip delay] + 0% Bypass
Brew-Process parameters are user controllable for:
Brew Volume, Brew Time, Prewet Percent, Bypass, Prewet Delay, and Drip Delay
Weights and Capacities
Model Height Width Depth
Water tank
capacity
Empty
Weight
Filled
Weight
Shipping
Weight
Shipping
Dimensions
CBS-1251
1½ gal
36 7/8 in
940 mm
12 3/4 in
320 mm
22 1/2 in
570 mm
6.5 gallon
24.4 L
53 lbs
24 kg
107 lbs
48.3kg
63 lbs
28.6 kg
38” x 18” x 24”
96.5 x 45.7 x 61 cm
CBS-1252
1½ gal
36 7/8 in
940 mm
21 7/8 in
550 mm
22 1/2 in
570 mm
11.1 gallon
42.1 L
77 lbs
35.0 kg
174 lbs
78.9 kg
97 lbs
44 kg
38” x 24” x 27”
96.5 x 61 x 68.6 cm
CBS-1253
2 gal
39 in
99.1 mm
21 7/8 in
550 mm
22 1/2 in
570 mm
11.1 gallon
42.1 L
82 lbs
37.2 kg
180 lbs
81.6 kg
97 lbs
44 kg
40” x 24” x 27”
102 x 61 x 68.6 cm
CBS-1251 & CBS-1252
Calibrated for
1½ gallons/ 6 liters
CBS-1253
Calibrated for
2 gallons/ 8 liters
Filter Paper all models
15” X 5 ½ ”– standard
Or use FETCO # F001
Brewers ship with plastic brew baskets.
See page 25 for optional brew baskets

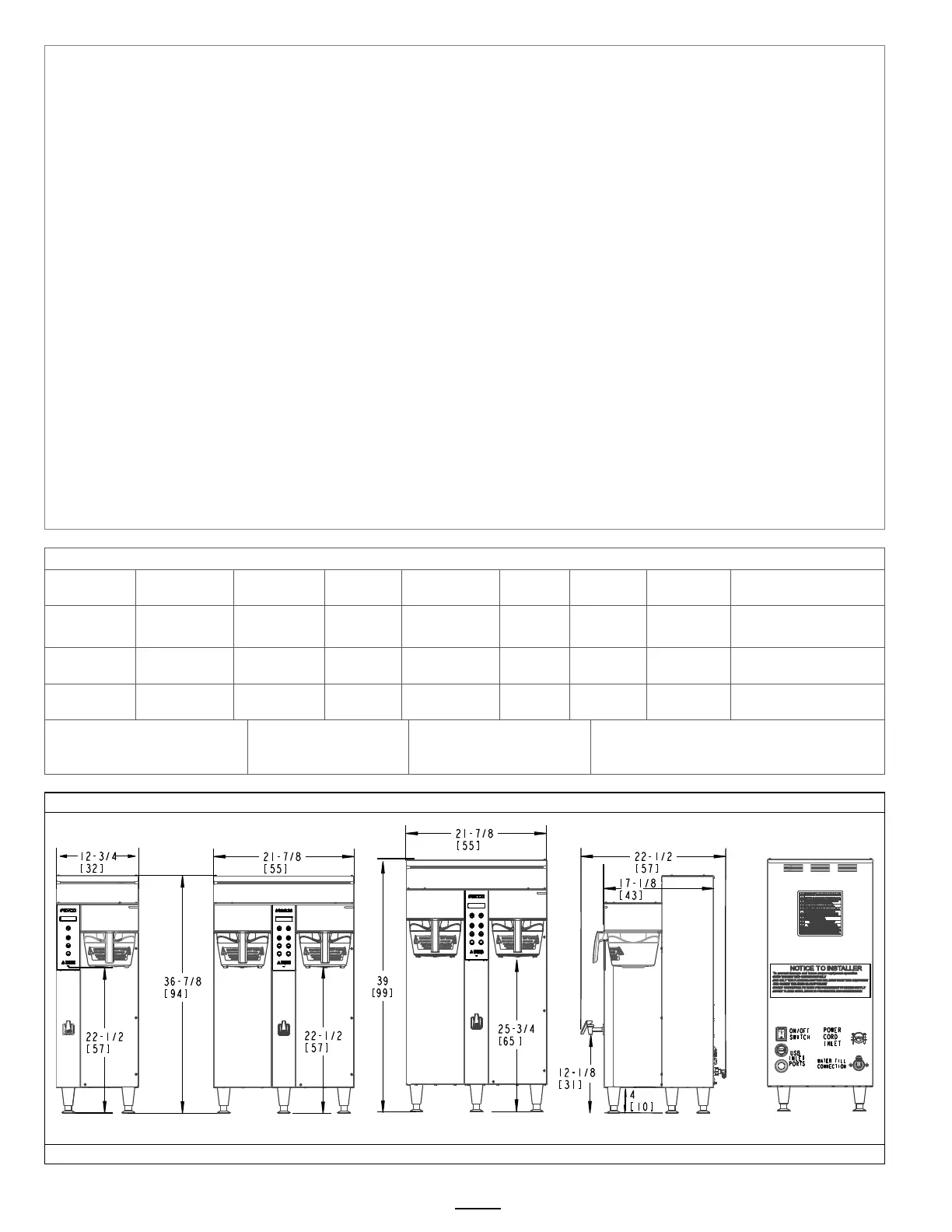

Rough-In Drawings 1201.00053.00 (CBS-1251) 1201.00052.00 (CBS-2152)
[Numbers in parenthesis are centimeters]
CBS-1251 Front CBS-1252 Front CBS-1253 Front Side (all) Back (all)
