Fetco Extractor Plus CBS-1251 - CBS-1252 and CBS1253 Tank Assembly

Go to fetco.com for the latest versions of all information Page 24 User Guide & Operator instructions P213e0 NOVEMBER 2021
CBS-1252 and CBS1253 Tank Assembly

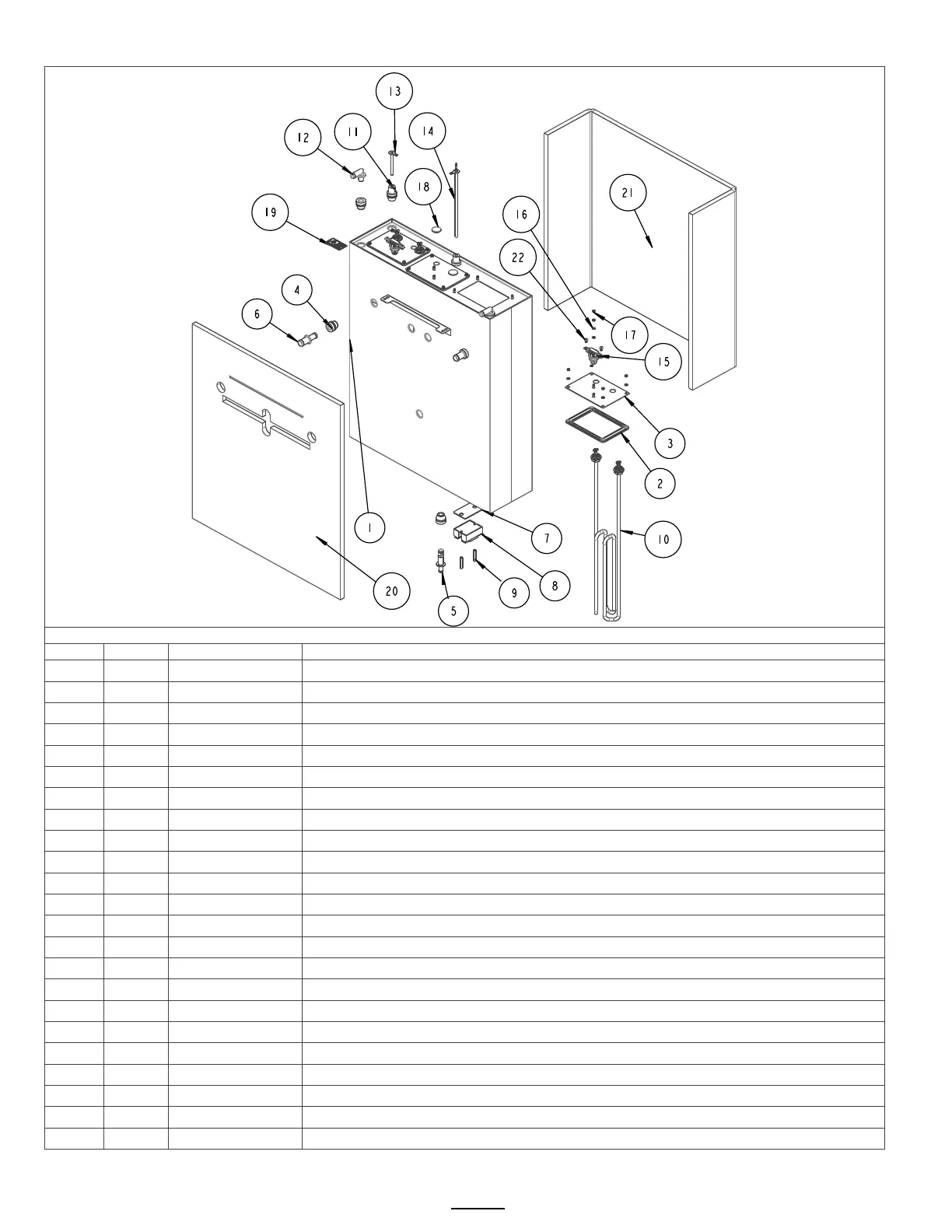

CBS-1252 Hot Water Tank Drawing 1104.00161.00 & 1104.00164.00
Ref#
Qty
Part number
Description
1
1
1114.00164.00
WELDMENT TANK, CBS-2252, LASER
2
3
1024.00115.00
TANK GASKET - NG HEATER PLATE, ONE ELEMENT
3
3
1114.00181.00
WELDMENT TANK HEATER BRACKET, NG-2232
4
5
1024.00050.00
GROMMET, SILICONE, 11.4mm ID
5
1
1023.00166.00
FITTING, COLD WATER INLET, GROMMET DESIGN
6
2
1023.00203.00
FITTING, STRAIGHT, GROMMET, .625"
7
2
1003.00140.00
ALUMINUM BRACKET FOR SSR
8
2
1052.00033.00
RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
9
4
1081.00042.00
STANDOFF, 1/4" HEX
10
2
1107.00005.00
ASSEMBLY, IMMERSION HEATER, 3000W, 240VAC
10
2
1107.00032.00
ASSEMBLY, IMMERSION HEATER, 5000W, 240VAC
11
2
1024.00053.00
LEVEL AND TEMP PROBE GROMMET
12
2
1023.00212.00
FITTING, ELBOW, GROMMET, .500"
13
1
1112.00019.00
PROBE WELDMENT, WATER LEVEL 2.600" LG
14
1
1102.00161.00
PROBE ASSEMBLY, TEMP. AND LLC, 8" LONG
15
2
1053.00052.00
THERMOSTAT, SINGLE SHOT, SCREW CONNECTIONS, 240V/25A
16
16
1083.00009.00
WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
17
16
1084.00010.00
NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
18
2
1024.00054.00
GROMMET, SILICONE PLUG
19
1
1044.00004.00
LABEL, DANGER, HIGH VOLTAGE
20
1
1022.00070.00
INSULATION, TANK FRONT, CBS-2152
21
1
1022.00071.00
INSULATION, TANK BACK, CBS-2152
22
4
1082.00136.00
BRASS SCREW, #8-32 X 1/4", PHILLIPS PAN HEAD
CBS-1252 Hot water tank
1104.00161.
00; 1104.00164
.00
2 X 3kW
; 2x 5 kW
