Fetco Extractor Plus CBS-1251 - Page 23

Go to fetco.com for the latest versions of all information Page 23 User Guide & Operator instructions P213e0 NOVEMBER 2021

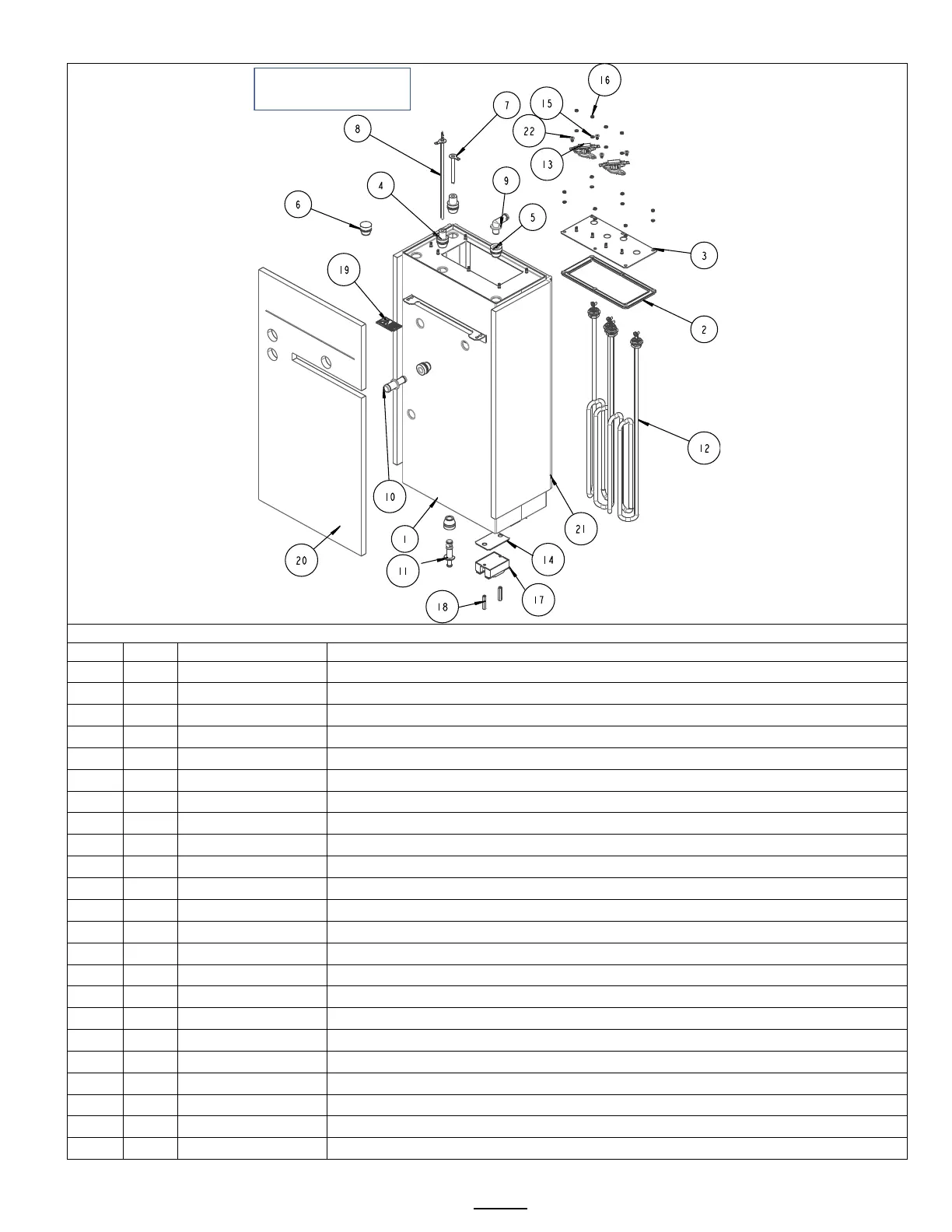

TANK ASSY, CBS-1251 Two Heater Drawing number 1104.000167.00 & 1104.00168.00
REF
QTY
Part number
Description
1
1
1114.00172.00
WELDMENT, TANK, CBS-2251
2
1
1024.00114.00
TANK GASKET - NG HEATER PLATE, TWO ELEMENT
3
1
1114.00176.00
WELDMENT TANK HEATER BRACKET, NG-2231
4
3
1024.00050.00
GROMMET, SILICONE, 11.4mm ID
5
1
1023.00166.00
FITTING, COLD WATER INLET, GROMMET DESIGN
6
1
1023.00203.00
FITTING, STRAIGHT, GROMMET, .625"
7
2
1003.00140.00
ALUMINUM BRACKET FOR SSR
8
2
1052.00033.00
RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
9
4
1081.00042.00
STANDOFF, 1/4" HEX
10
2
1107.00037.00
HEATER ASSEMBLY, IMMERSION 2300W/240VAC
10
2
1107.00005.00
HEATER ASSEMBLY, IMMERSION 3000W/240VAC
11
2
1024.00053.00
LEVEL AND TEMP PROBE GROMMET
12
1
1023.00212.00
FITTING, ELBOW, GROMMET, .500"
13
1
1112.00019.00
PROBE WELDMENT, WATER LEVEL 2.600" LG
14
1
1102.00161.00
PROBE ASSEMBLY, TEMP. AND LLC, 8" LONG
15
2
1053.00052.00
THERMOSTAT, SINGLE SHOT, SCREW CONNECTIONS, 240V/25A
16
10
1083.00009.00
WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
17
10
1084.00010.00
NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
18
1
1024.00051.00
GROMMET, SILICONE, BLANK
19
1
1044.00004.00
LABEL, DANGER, HIGH VOLTAGE
20
1
1022.00068.00
INSULATION, TANK FRONT, CBS-2151
21
1
1022.00069.00
INSULATION, TANK BACK, CBS-2151
22
4
1082.00136.00
BRASS SCREW, #8-32 X 1/4", PHILLIPS PAN HEAD
CBS-1251 Hot water tank
1104.00167.00 and 1104.00168
2 X 2.3 kW & 2 x 3 kW
