CBS-1251 Tank Assembly

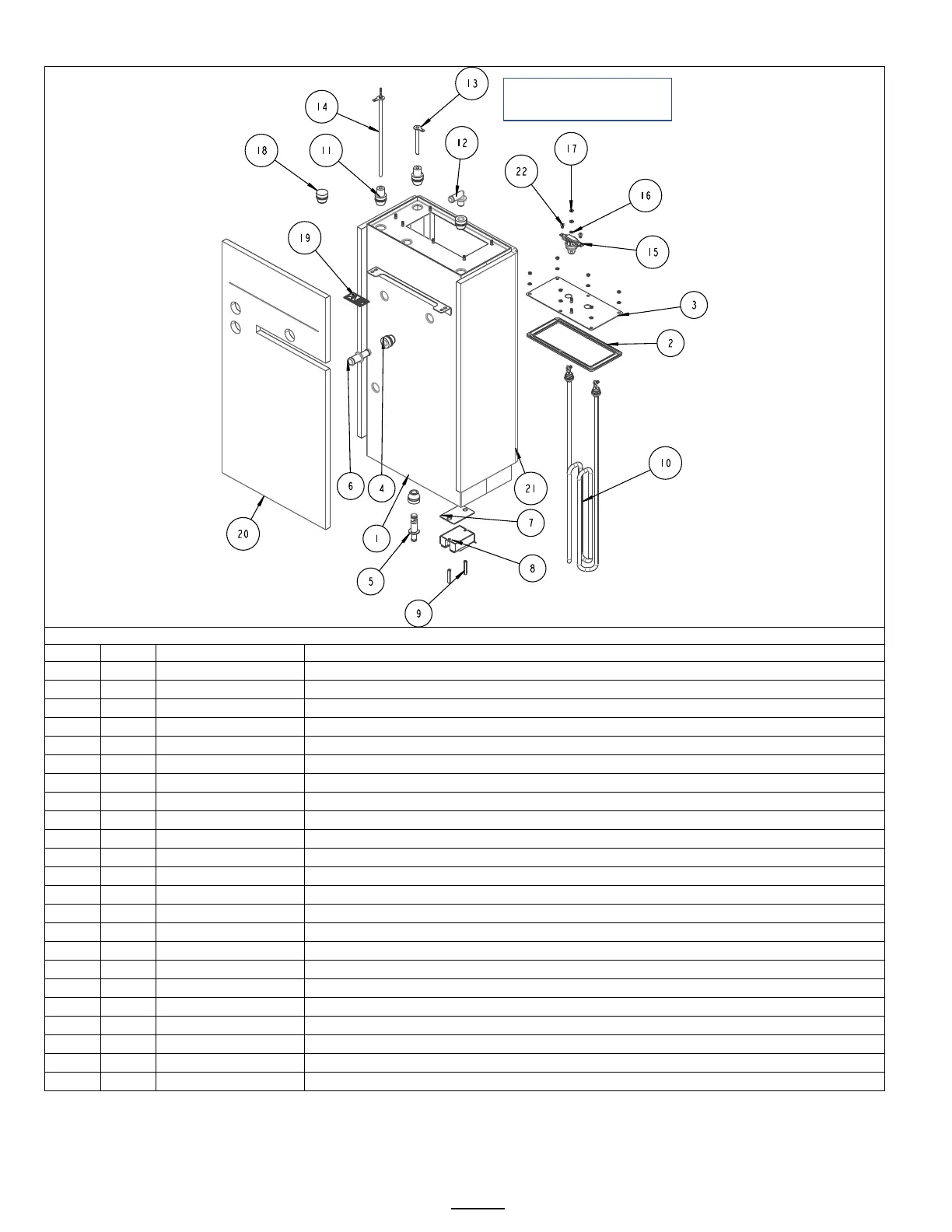

TANK ASSY, CBS-1251 Single Heater Drawing number 1104.000165.00 & 1104.000166.00
REF
QTY
Part number
Description
1
1
1114.00172.00
WELDMENT, TANK, CBS-2251
2
1
1024.00114.00
TANK GASKET - NG HEATER PLATE, TWO ELEMENT
3
1
1114.00184.00
WELDMENT TANK HEATER BRACKET, NG-2231, SINGLE
4
3
1024.00050.00
GROMMET, SILICONE, 11.4mm ID
5
1
1023.00166.00
FITTING, COLD WATER INLET, GROMMET DESIGN
6
1
1023.00203.00
FITTING, STRAIGHT, GROMMET, .625"
7
1
1003.00140.00
ALUMINUM BRACKET FOR SSR
8
1
1052.00033.00
RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
9
2
1081.00042.00
STANDOFF, 1/4" HEX
10
1
1107.00010.00
HEATER ASSEMBLY, IMMERSION 4kW/240VAC
10
1
1107.00032.00
HEATER ASSEMBLY, IMMERSION, 5kW/240VAC
11
2
1024.00053.00
LEVEL AND TEMP PROBE GROMMET
12
1
1023.00212.00"
FITTING, ELBOW, GROMMET, .500
13
1
1112.00019.00
PROBE WELDMENT, WATER LEVEL 2.600" LG
14
1
1102.00161.00
PROBE ASSEMBLY, TEMP. AND LLC, 8" LONG
15
1
1053.00052.00
THERMOSTAT, SINGLE SHOT, SCREW CONNECTIONS, 240V/25A
16
8
1083.00009.00
WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
17
8
1084.00010.00
NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
18
1
1044.00004.00
LABEL, DANGER, HIGH VOLTAGE
19
1
1024.00051.00
GROMMET, SILICONE, BLANK
20
1
1022.00068.00
INSULATION, TANK FRONT, CBS-2151
21
1
1022.00069.00
INSULATION, TANK BACK, CBS-2151
22
2
1082.00136.00
BRASS SCREW, #8-32 X 1/4", PHILLIPS PAN HEAD
CBS-1251 Hot water tank
1104.00165.00 and 1104.00166.00
1 X 4 kW & 1 x 5 kW
