Go to fetco.com for the latest versions of all information Page 25 User Guide & Operator instructions P213e0 NOVEMBER 2021
.

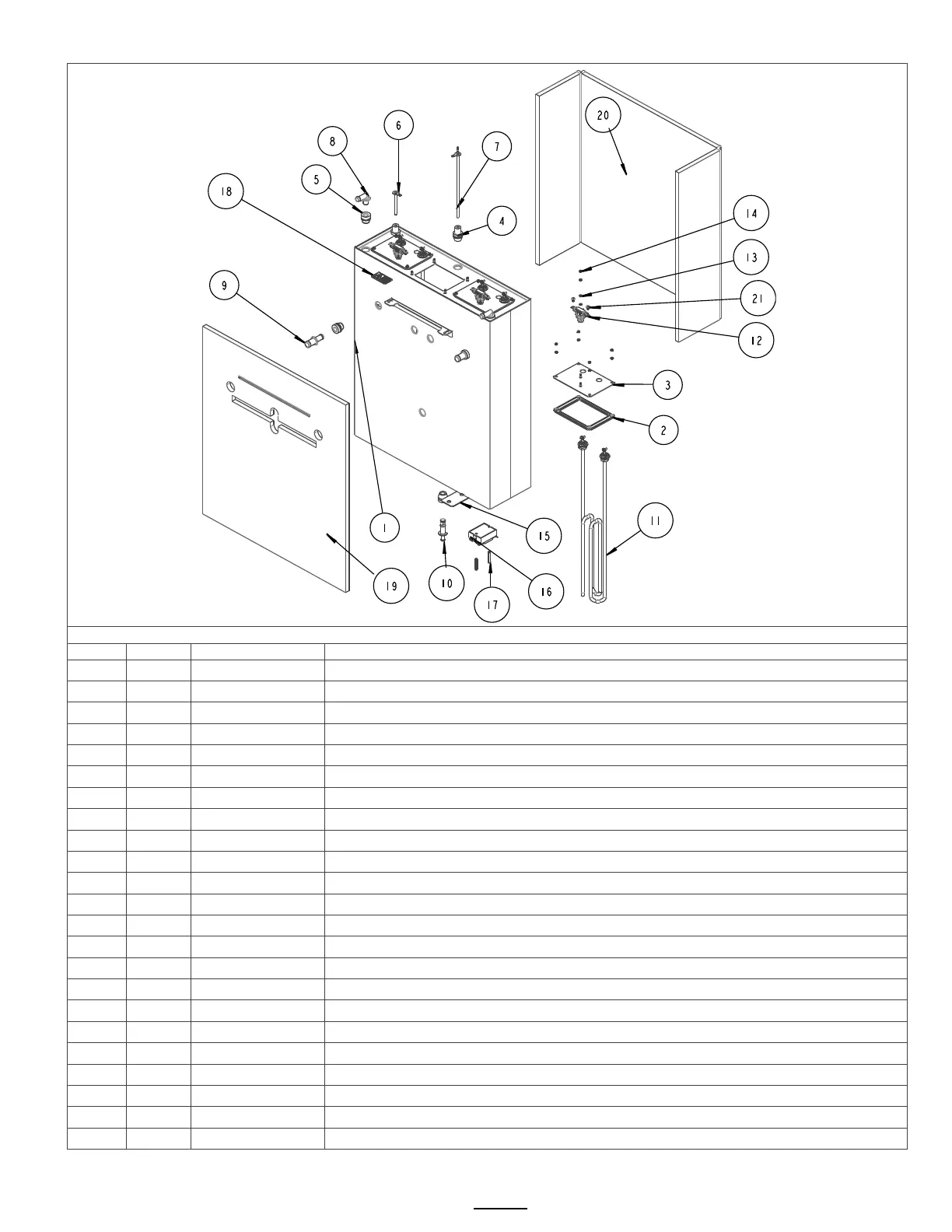

CBS-1252 and CBS-1253 Hot Water Tank Drawing 1104.00160.00; 1104.00162.00; 1104,00163.00
Ref#
Qty
Part number
Description
1
1
1114.00164.00
WELDMENT TANK, CBS-2252, LASER
2
3
1024.00115.00
TANK GASKET - NG HEATER PLATE, ONE ELEMENT
3
3
1114.00181.00
WELDMENT TANK HEATER BRACKET, NG-2232
4
2
1024.00053.00
LEVEL AND TEMP PROBE GROMMET
5
5
1024.00050.00
GROMMET, SILICONE, 11.4mm ID
6
1
1112.00019.00
PROBE WELDMENT, WATER LEVEL 2.600" LG
7
1
1102.00161.00
PROBE ASSEMBLY, TEMP. AND LLC, 8" LONG
8
2
1023.00212.00
FITTING, ELBOW, GROMMET, .500"
9
2
1023.00203.00
FITTING, STRAIGHT, GROMMET, .625"
10
1
1023.00166.00
FITTING, COLD WATER INLET, GROMMET DESIGN
11
1
1107.00005.00
ASSEMBLY, IMMERSION HEATER, 3000W, 240VAC
11
1
1107.00010.00
ASSEMBLY, IMMERSION HEATER, 4000W, 240VAC
11
1
1107.00032.00
ASSEMBLY, IMMERSION HEATER, 5000W, 240VAC
12
3
1053.00052.00
THERMOSTAT, SINGLE SHOT, SCREW CONNECTIONS, 240V/25A,
13
18
1083.00009.00
WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
14
18
1084.00010.00
NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
15
3
1003.00140.00
ALUMINUM BRACKET FOR SSR
16
3
1052.00033.00
RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
17
6
1081.00042.00
STANDOFF, 1/4" HEX
18
1
1044.00004.00
LABEL, DANGER, HIGH VOLTAGE
19
1
1022.00070.00
INSULATION, TANK FRONT, CBS-2152
20
1
1022.00071.00
INSULATION, TANK BACK, CBS-2152
21
6
1082.00136.00
BRASS SCREW, #8-32 X 1/4", PHILLIPS PAN HEAD
CBS-1252 Hot water tank
1104.00160.00; 1104.00162.00; 1104.00163.00
3 X 3kW
; 3 X 4 kW & 3 x 5 kW
