INSTALLATION
Installation with standard blinds:
1. Switch o the mains voltage (disable the fuse).
2. Open the wall switch box.
3. Connect with the following the diagram:

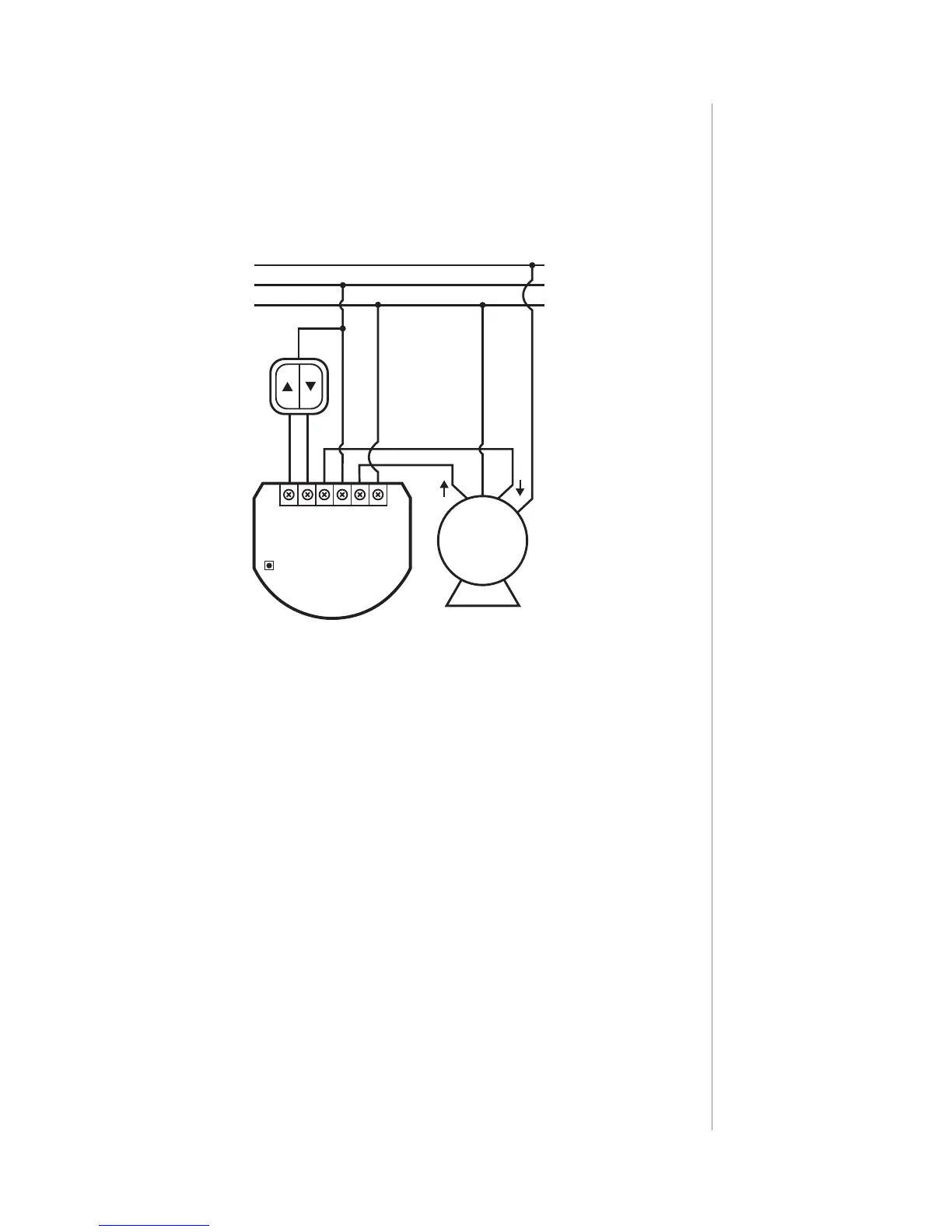

Wiring diagram - standard blinds
4. Verify if the device is connected correctly.
5. Arrange the device and its antenna in a wall switch box.
6. Close the wall switch box .
7. Switch on the mains voltage.
Roller
Shutter 3
L NS1 S2
L
N
M
N
Q2
B
Q1
