5.6.1 Tray Package
The L831-EAU module uses tray package, 20 pcs are packed in each tray, with 5 trays in each box and 6
boxes in each case. Tray packaging process is shown in Figure 5-4:

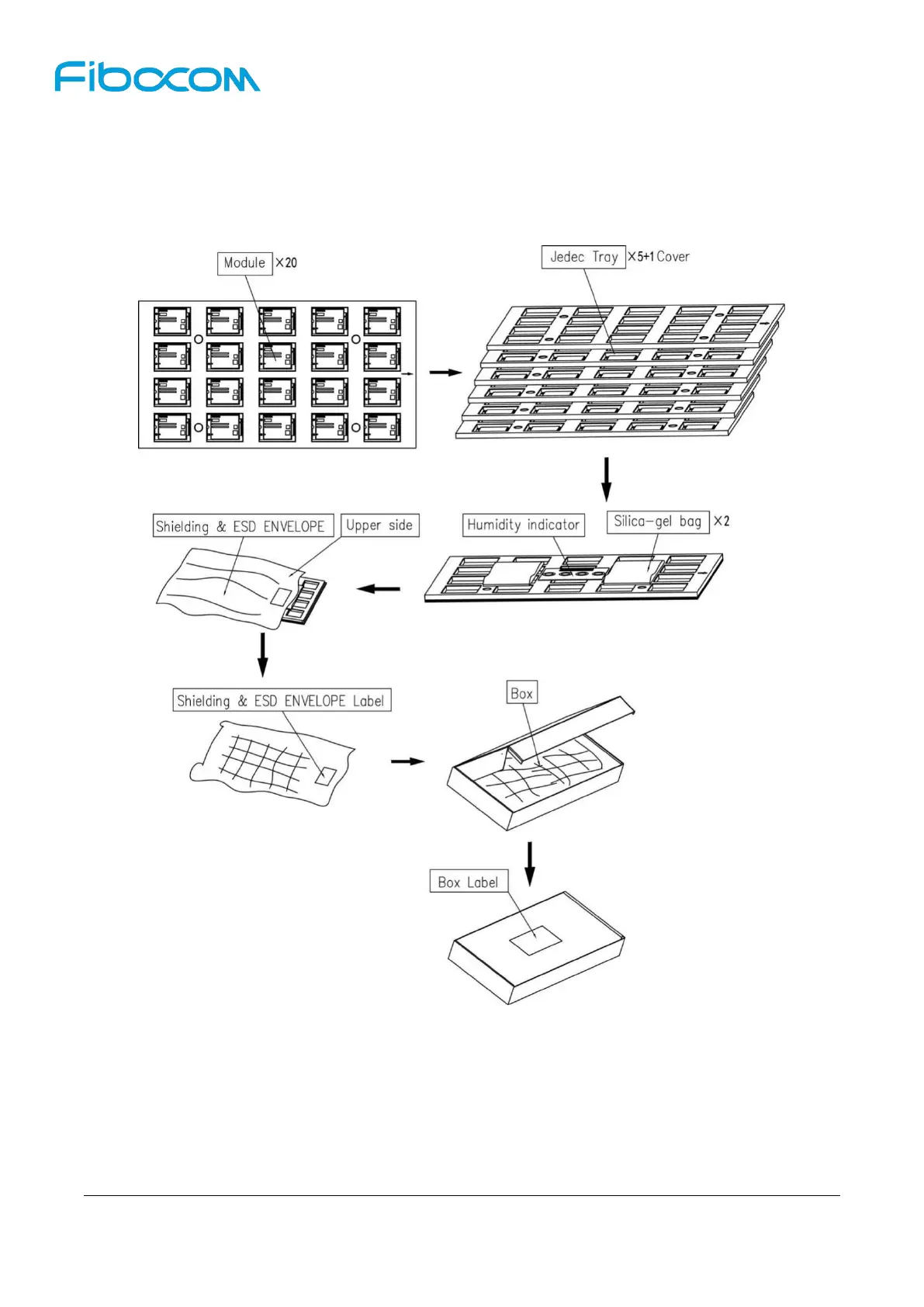

Figure 5-4 Tray Packaging Process
